NC12: Control Circuit Checks - WAC Relay Coil Circuit, W/ MTC

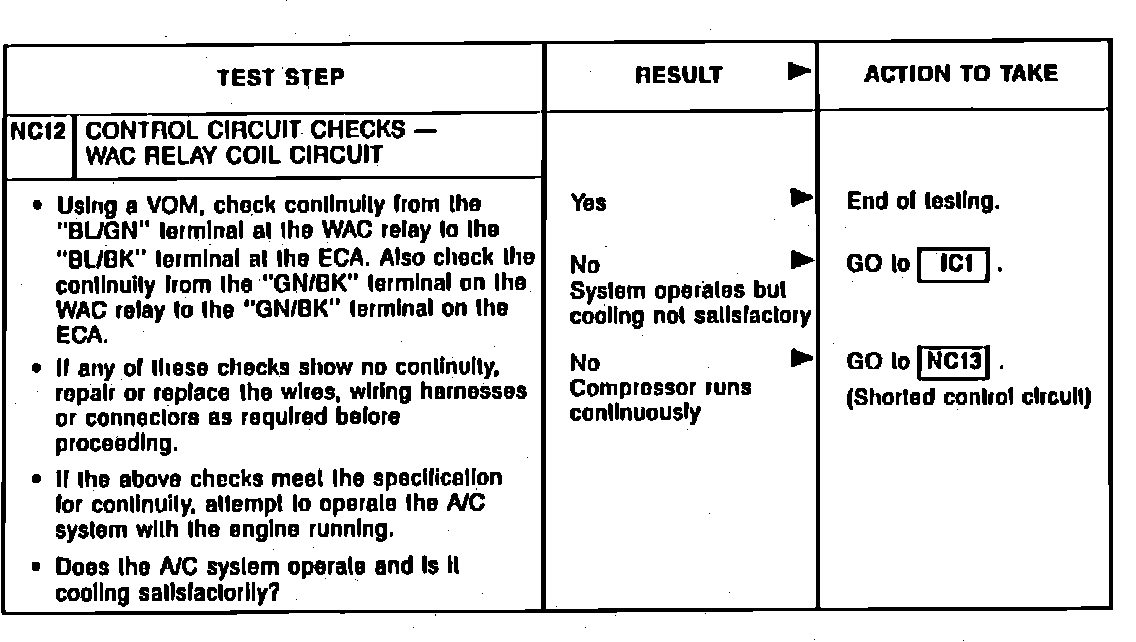

Fig. 43 Compressor clutch diagnosis (Test NC12):
