Automatic Transaxle Diagnostics - Revision

Article No.
91-14B-27

Date:
July 22, 1991




SHOP MANUAL - 1991 - SECTION 07-01 - AUTOMATIC TRANSAXLE - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Automatic Transaxle Section 07-01 of the 1991 Escort Tracer Shop Manual has been revised.

The original pages 07-01-11 and 12 have been revised by tsb 07-11 and 12.
The original pages 07-01-20 through 22 have been revised by tsb 07-01-19 thru 22.
The original pages 07-01-27 have been revised by tsb 07-01-27.
The original pages 07-01-32 through 35 have been revised by tsb 07-01-32 thru 35.
The original pages 07-01-38 through 41 have been revised by tsb 07-01-38 thru 41.

ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
590000

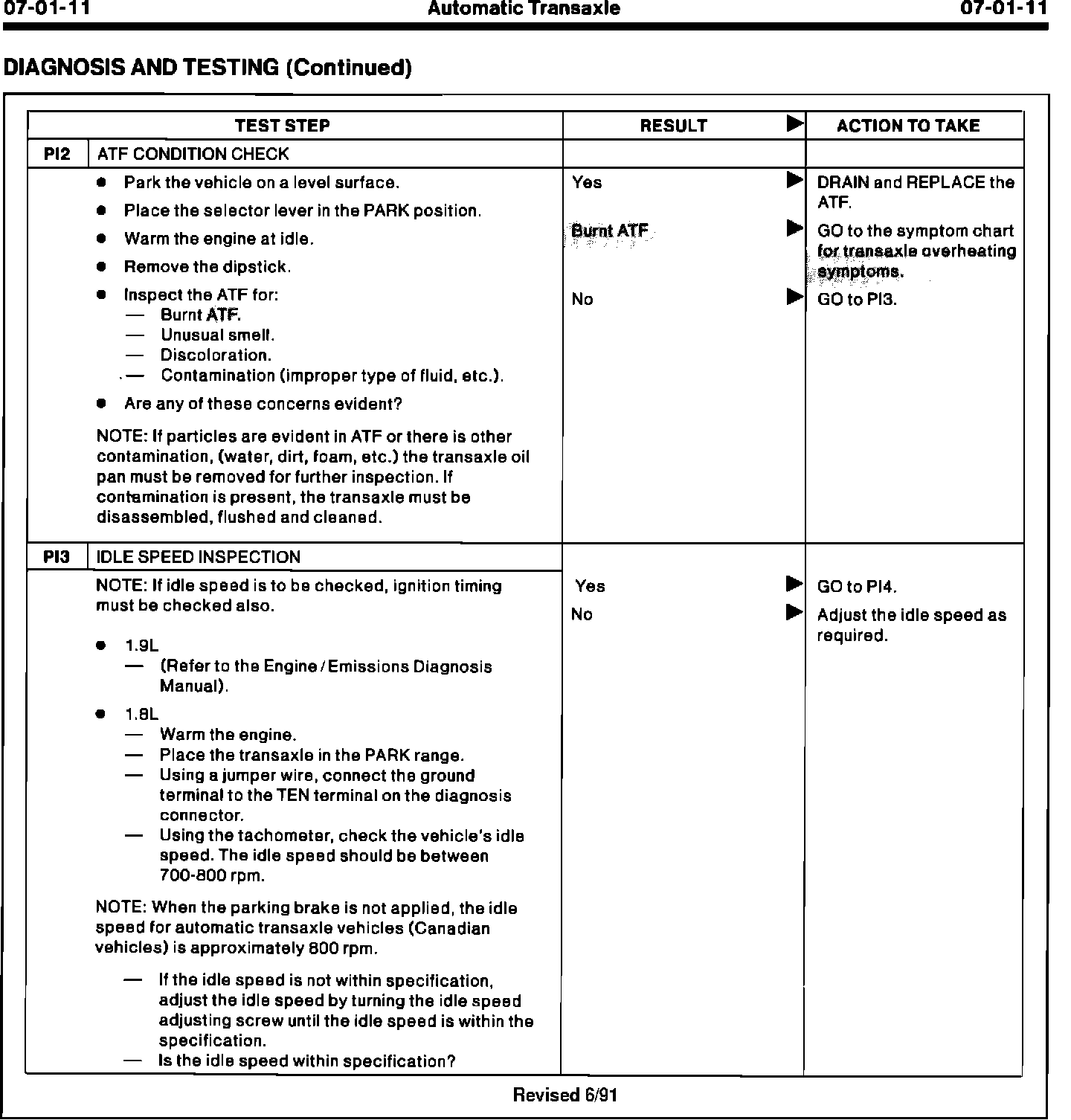

07-01-11 Test Step P12 through P14

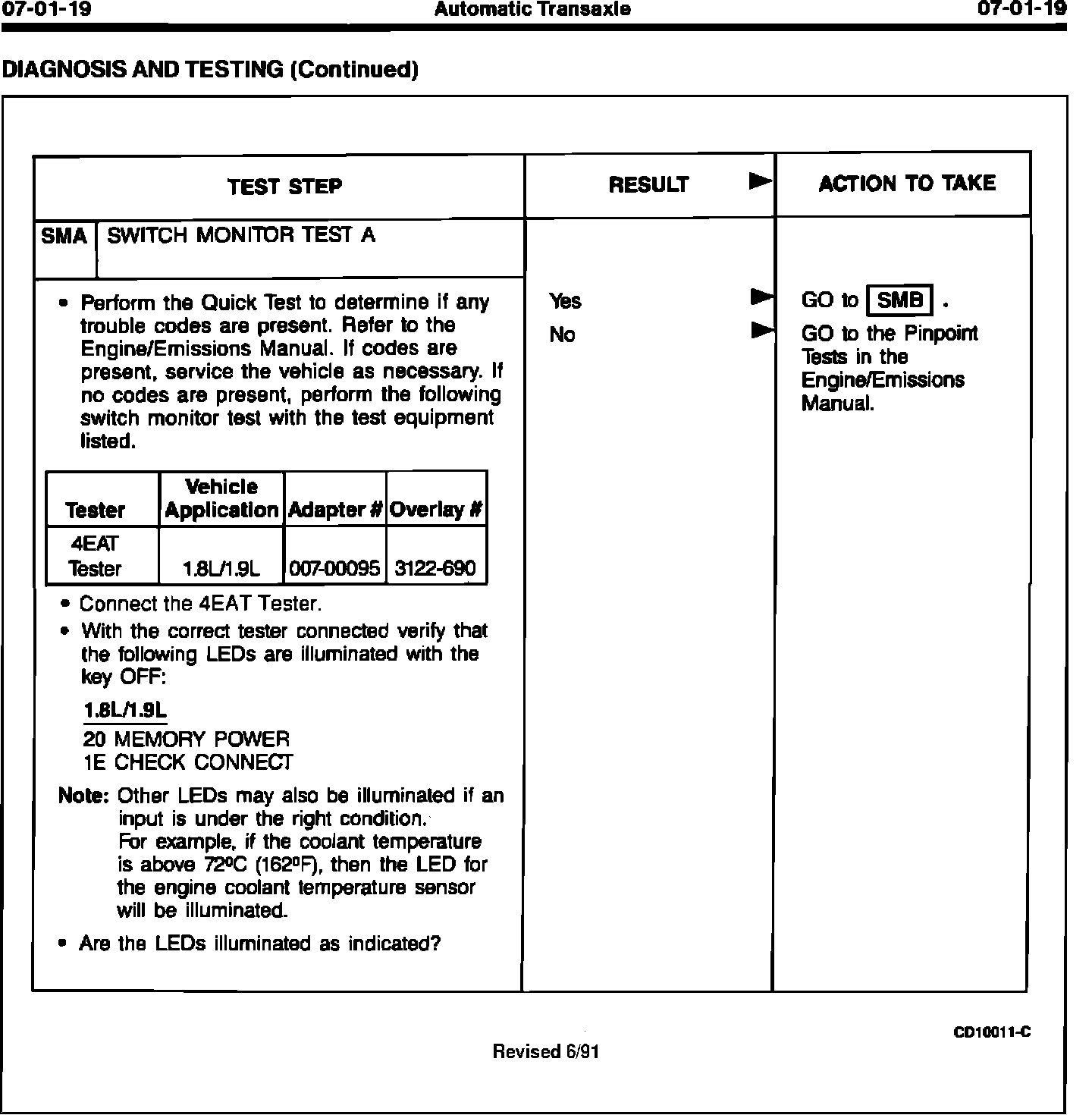

07-01-19 Test Step SMA Switch Monitor Test A

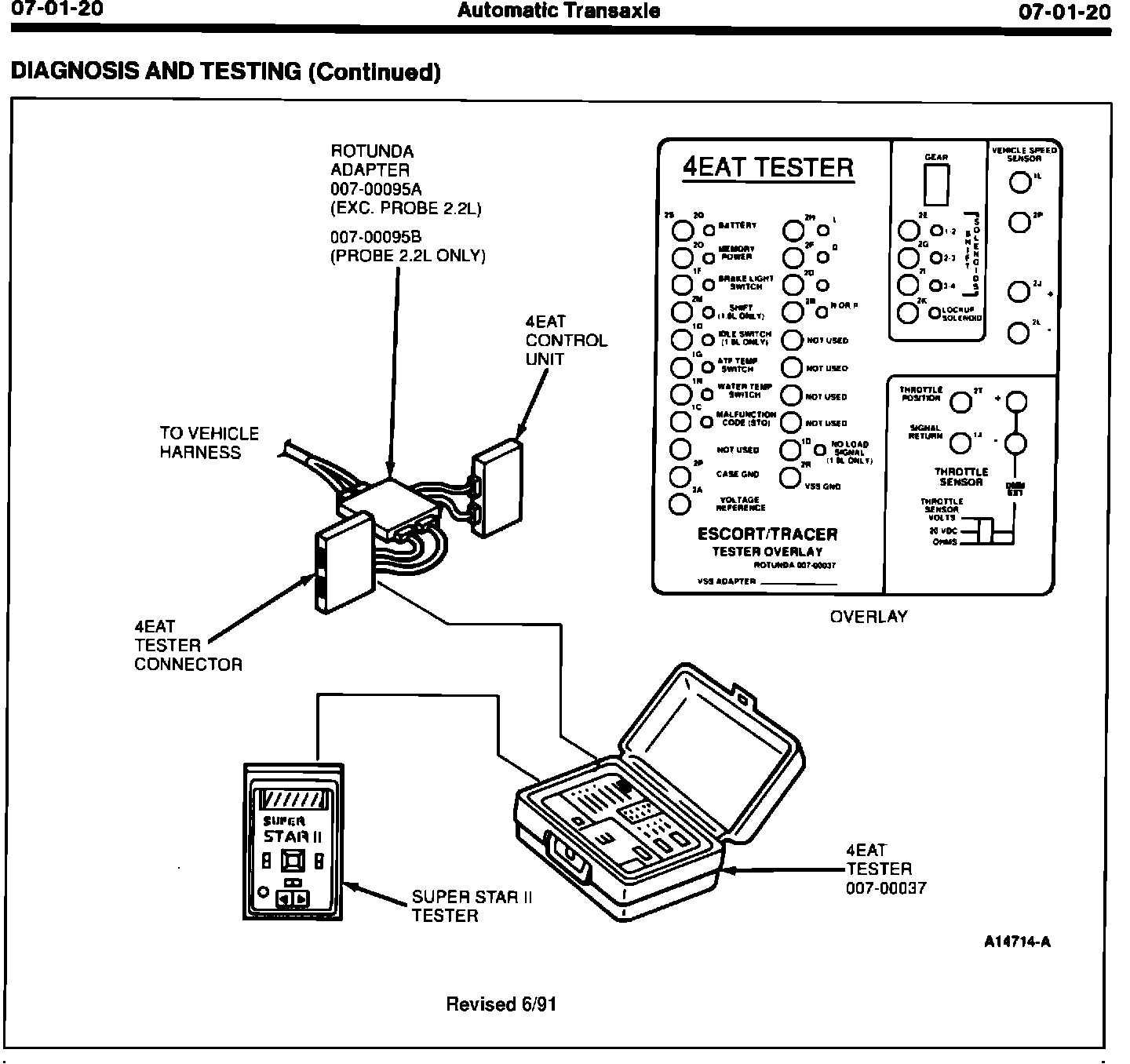

07-01-20 4EAT Tester

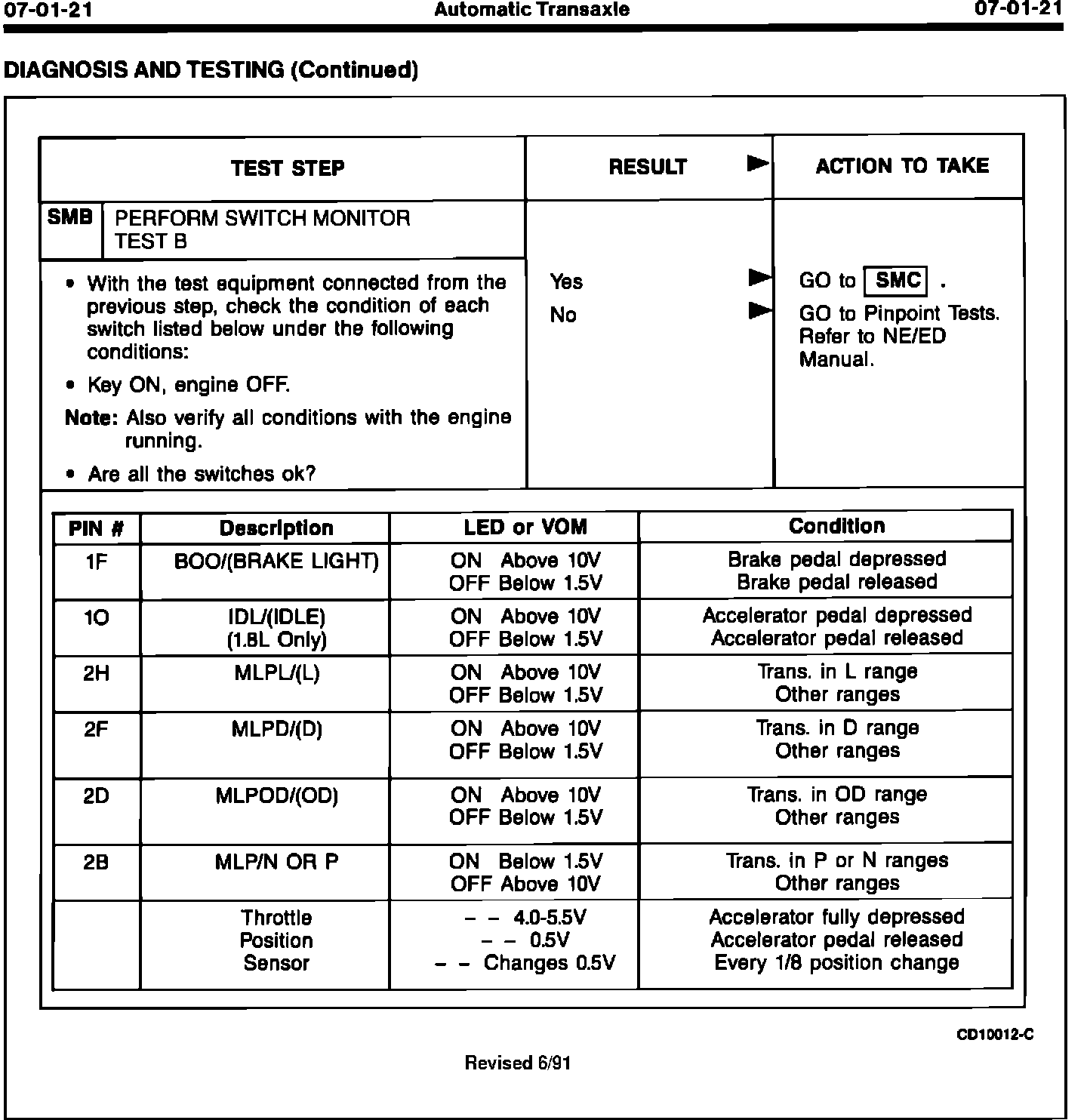

07-01-21 Test Step Perform Switch Monitor Test B






07-01-22 Perform Switch Monitor Test C

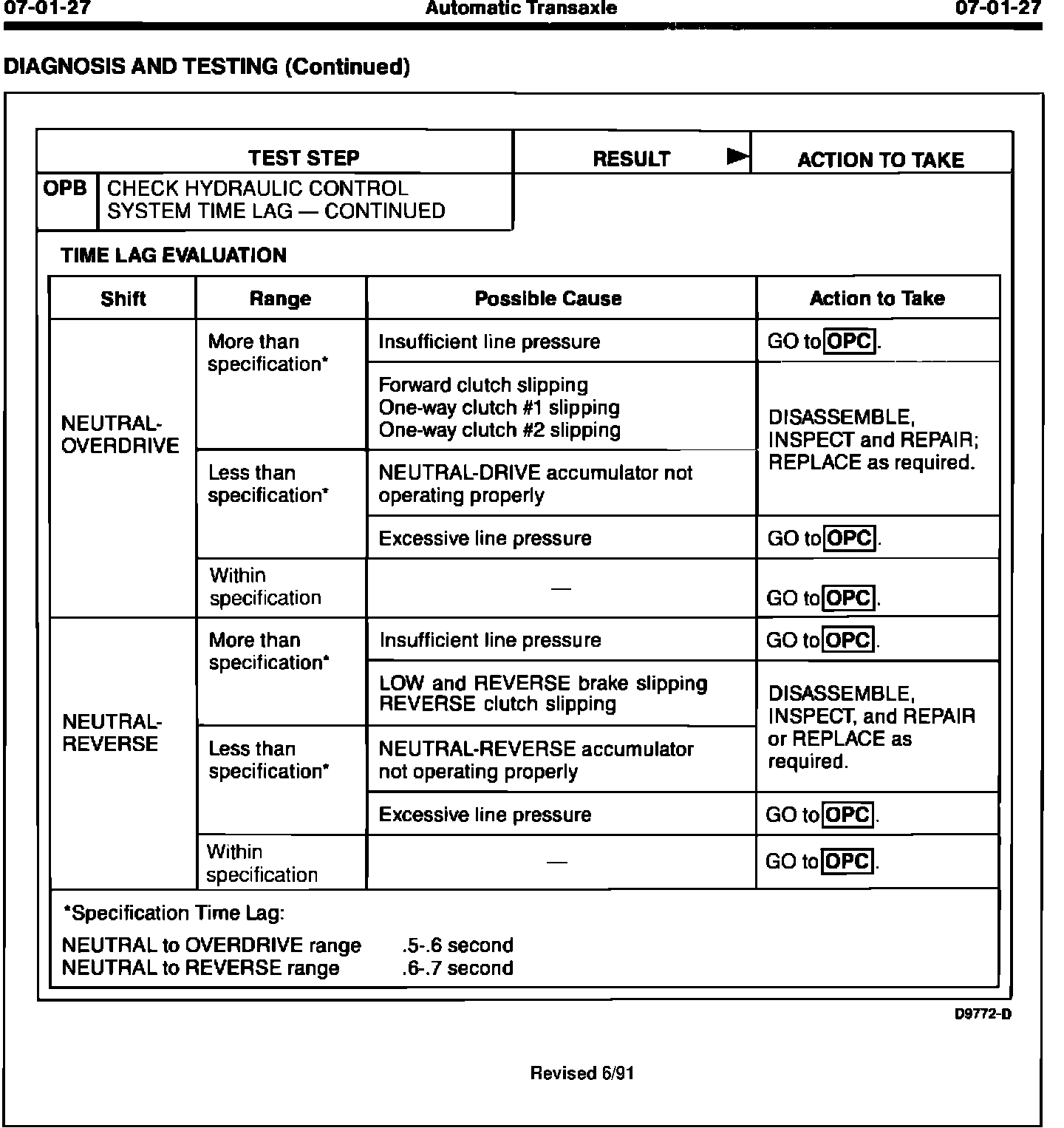

07-01-27 Test Step Check Hydraulic Control System Time Lag - Continued

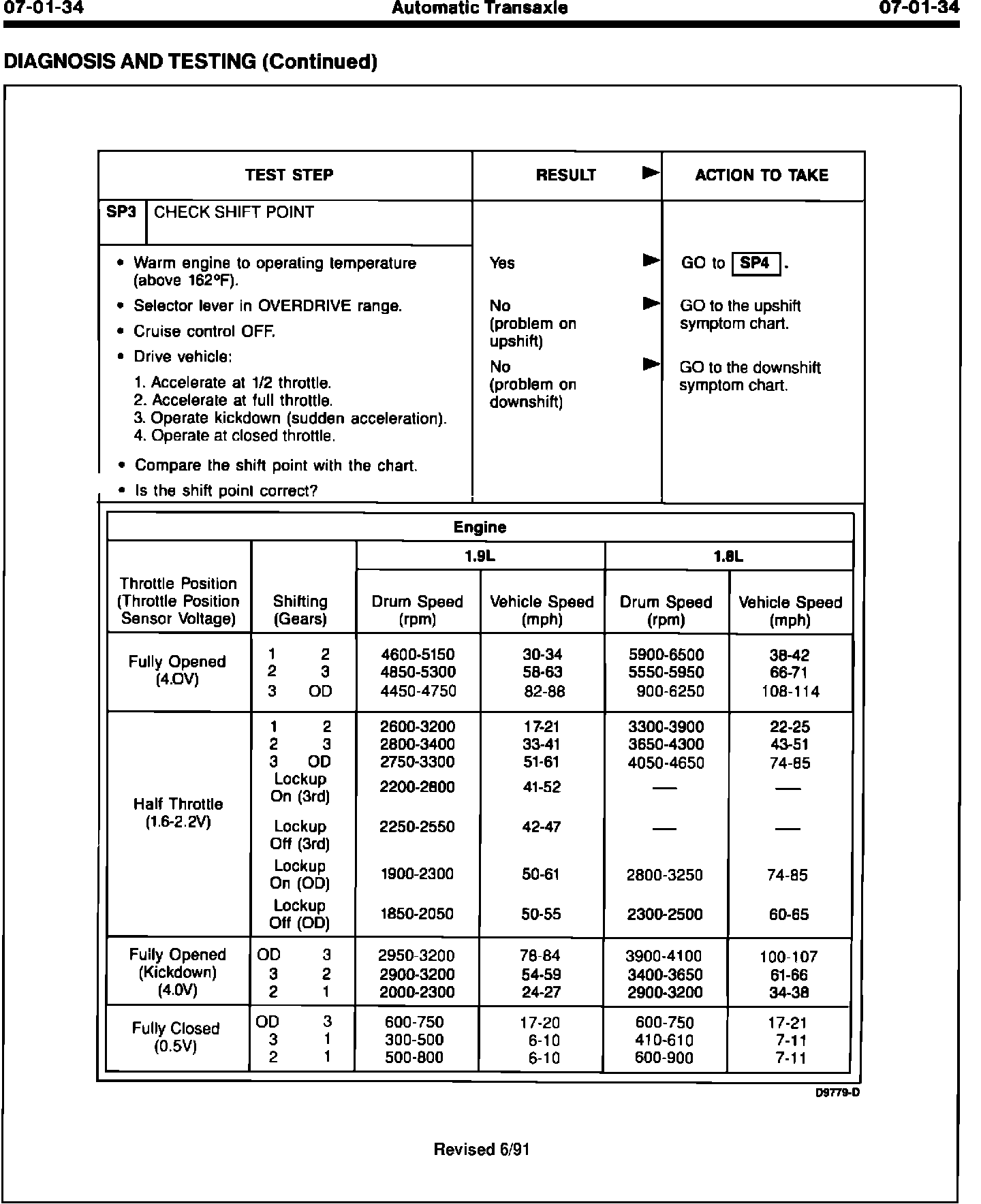

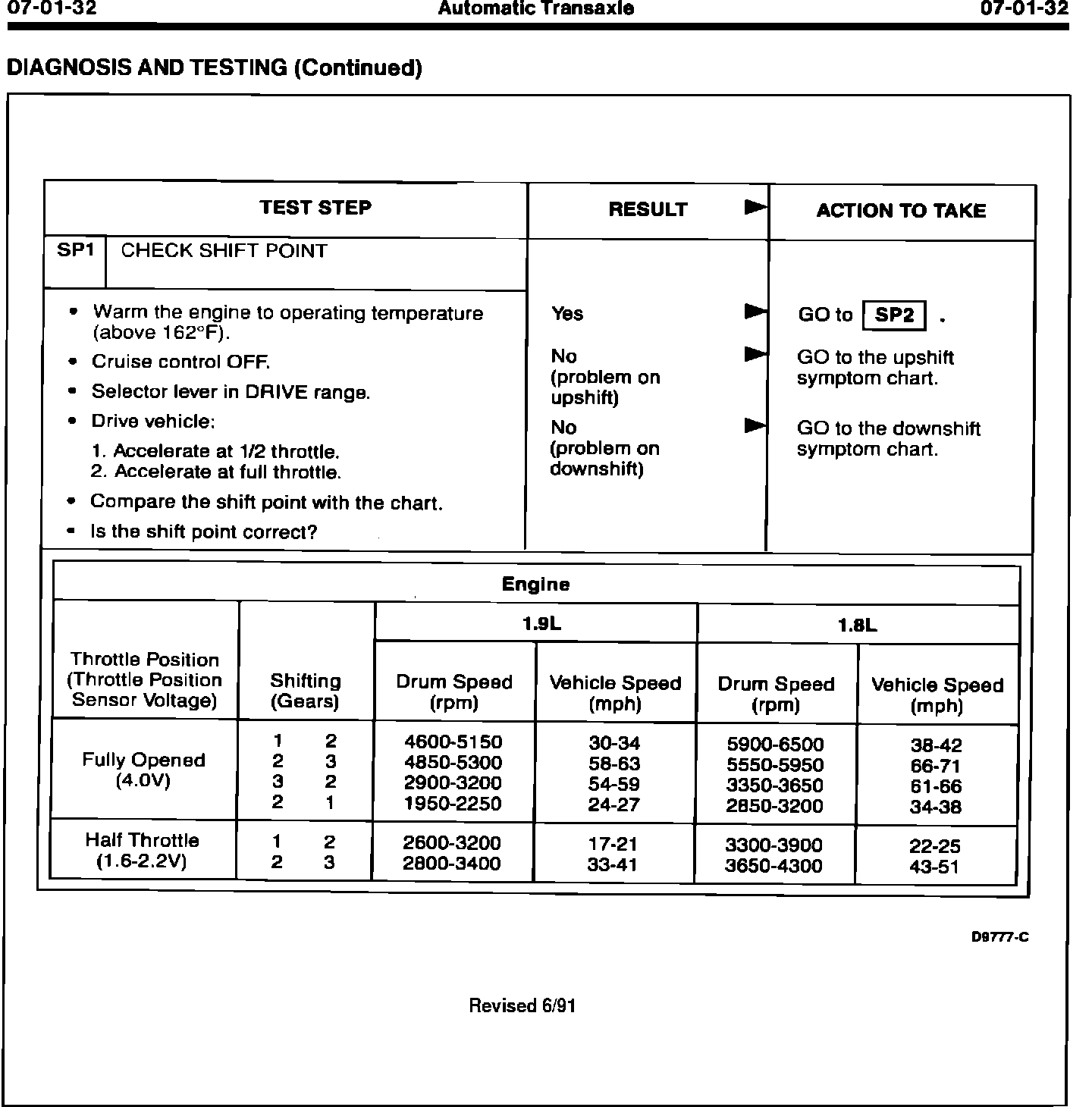

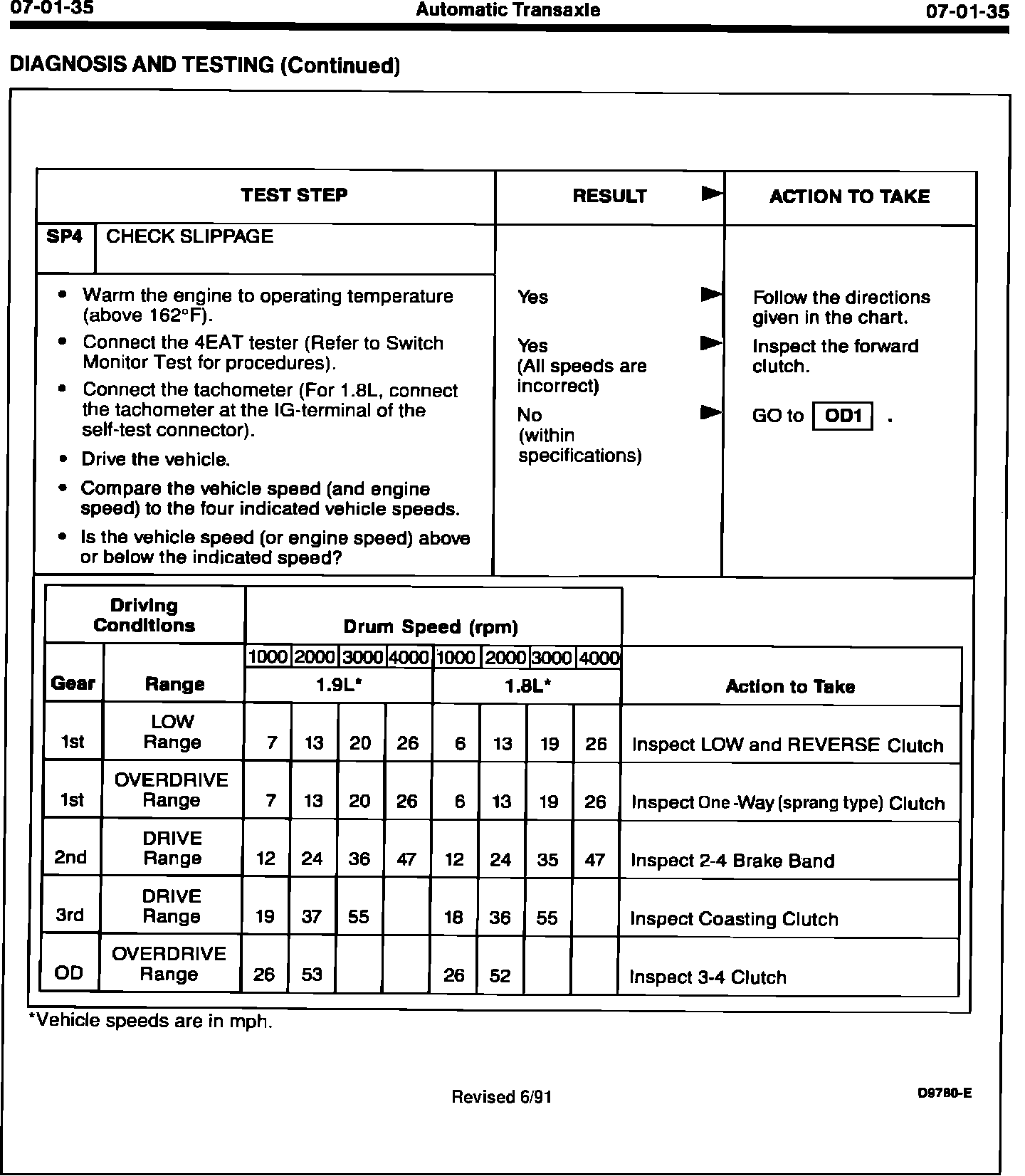

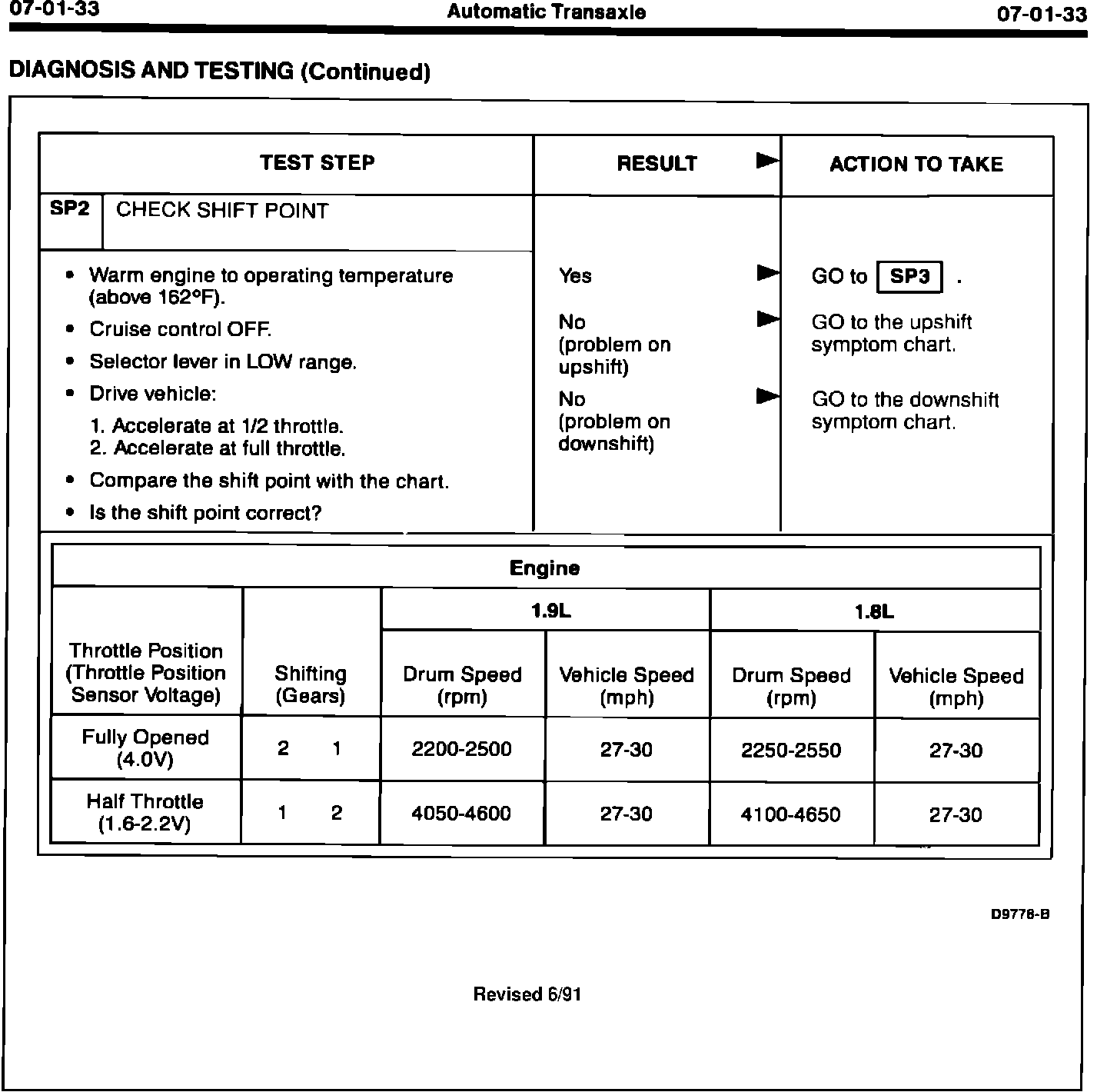

07-01-32 Test Step SP1 thru SP4 Check Shift Point

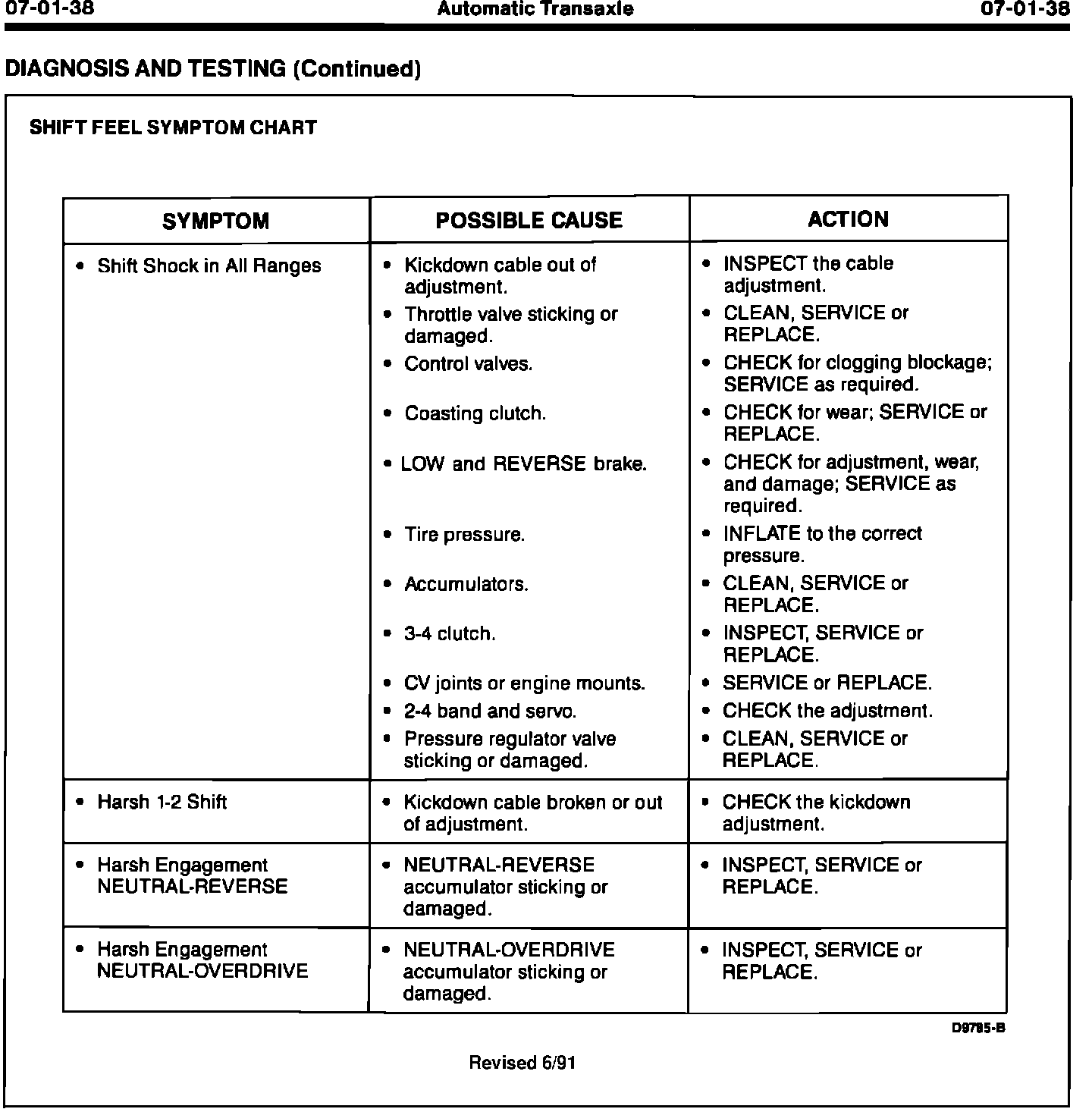

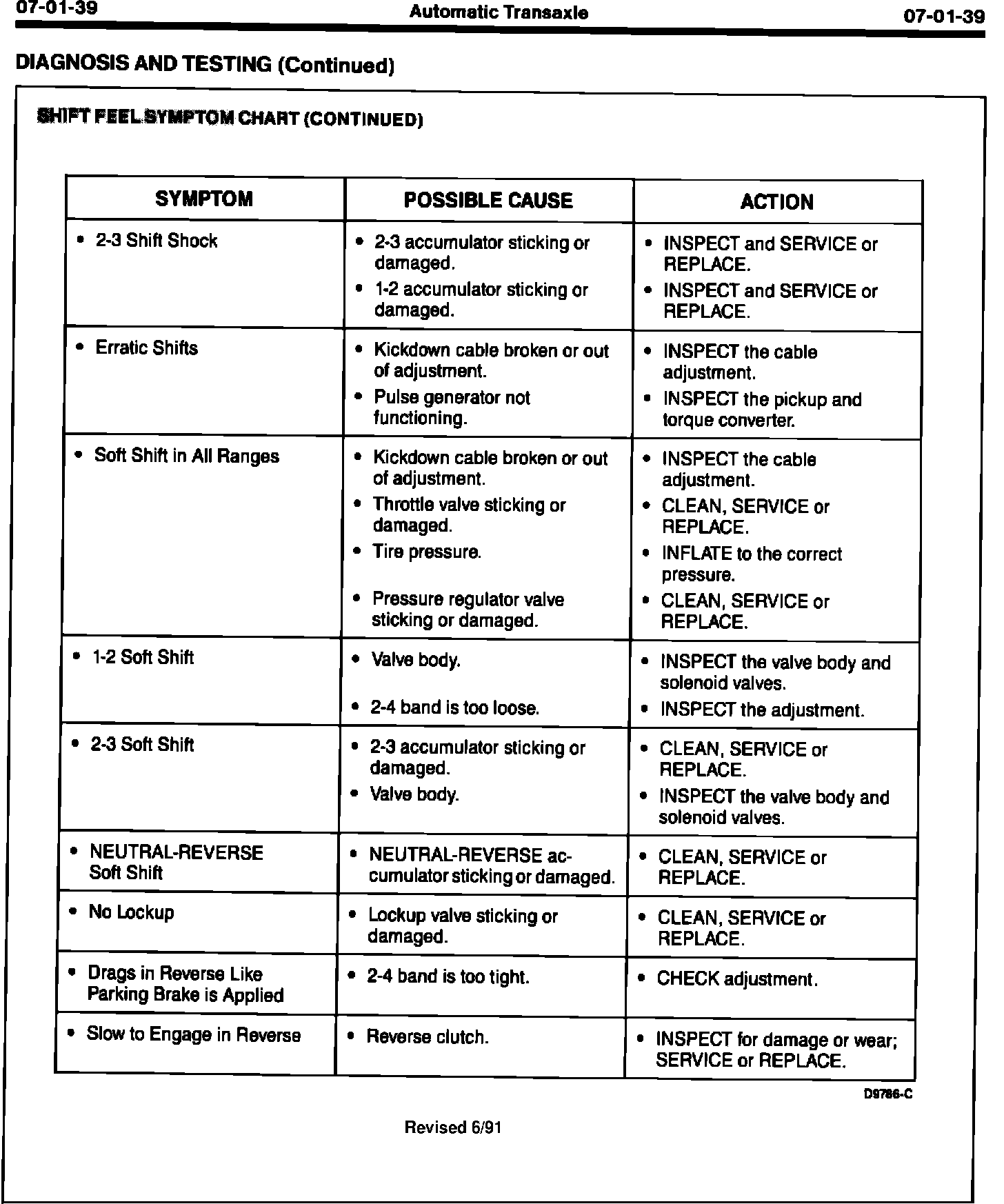

07-01-38, 39 Shift Feel Symptom Chart

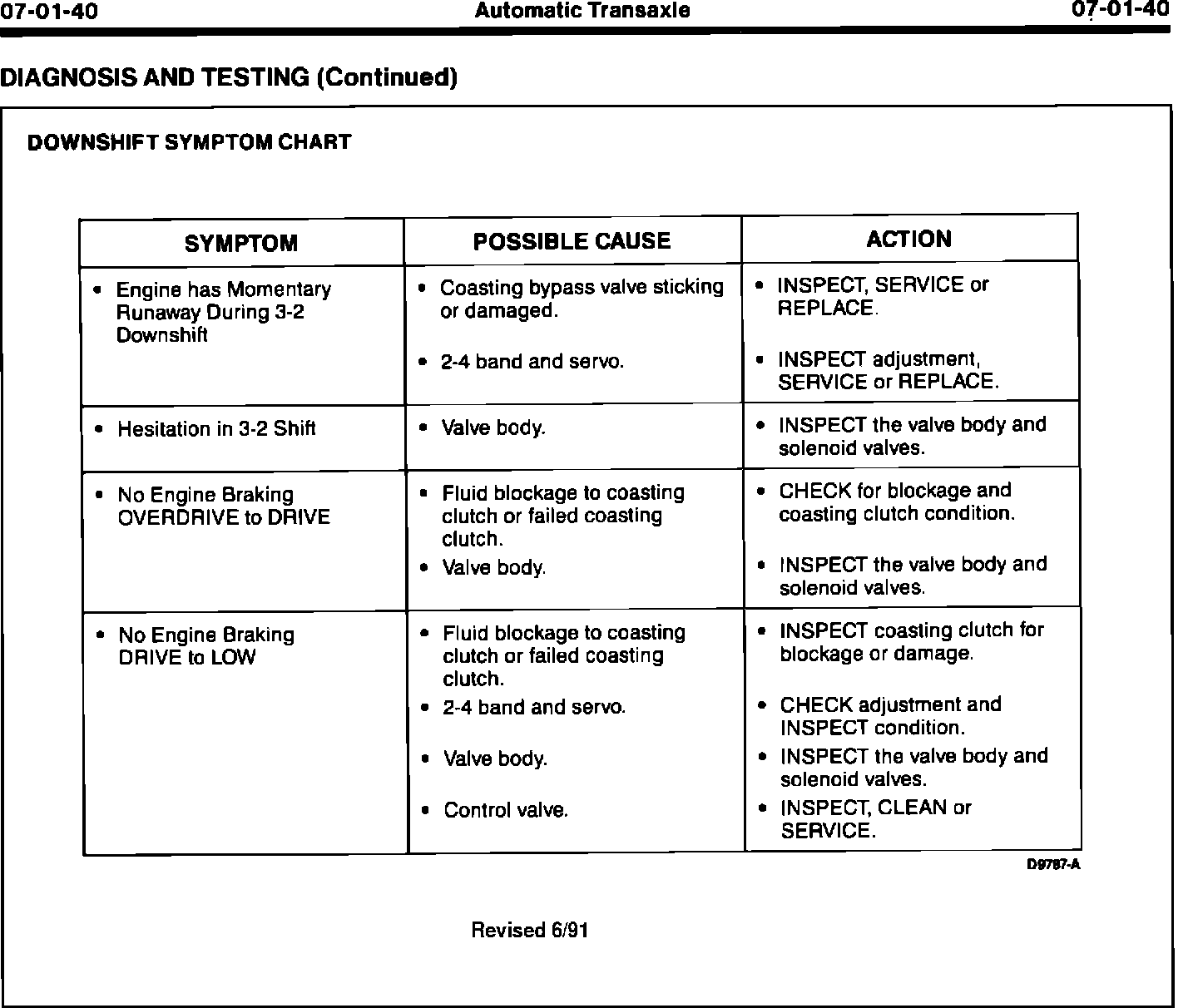

07-01-40 Downshift Symptom Chart

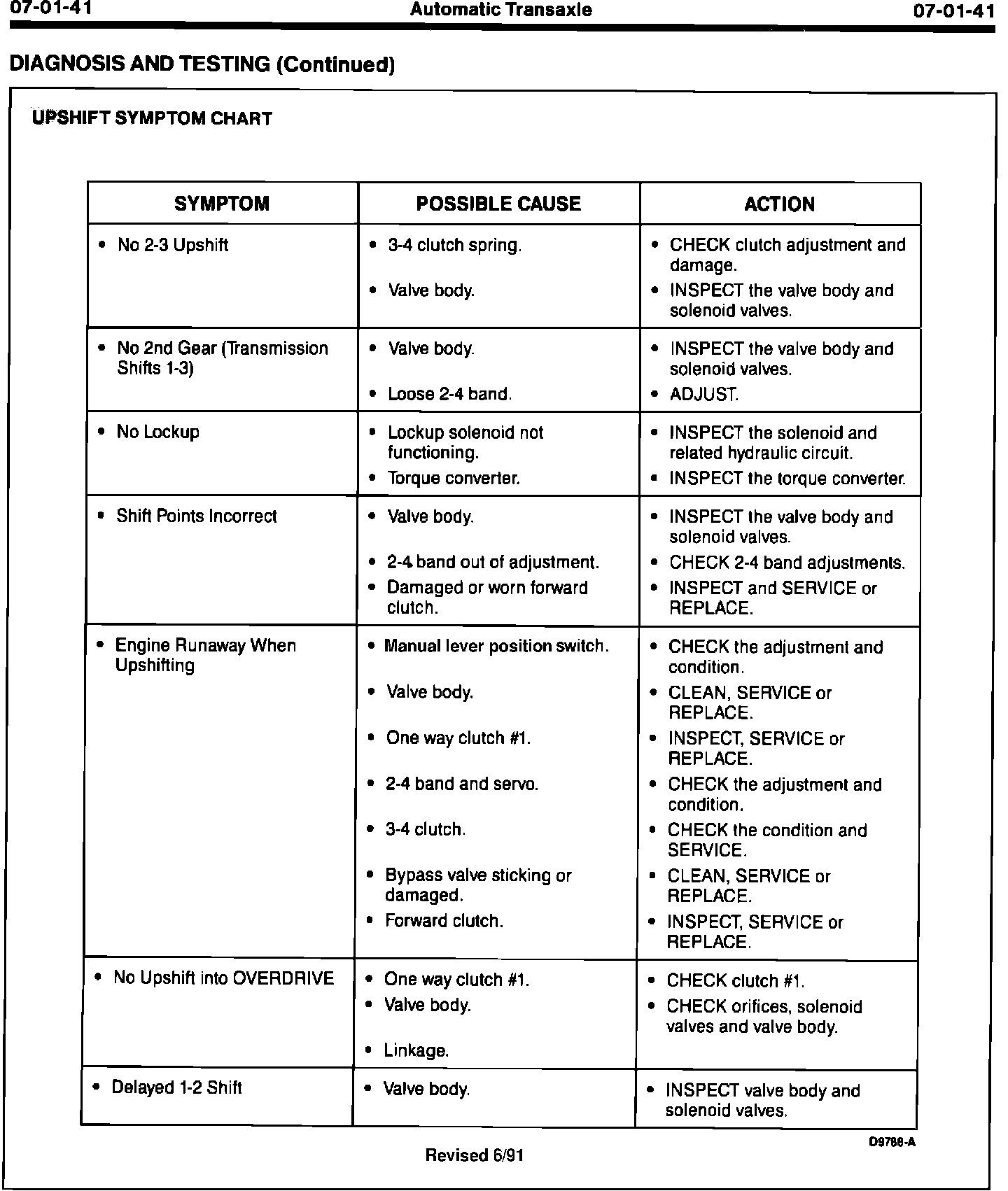

07-01-41 Upshift Symptom Chart
