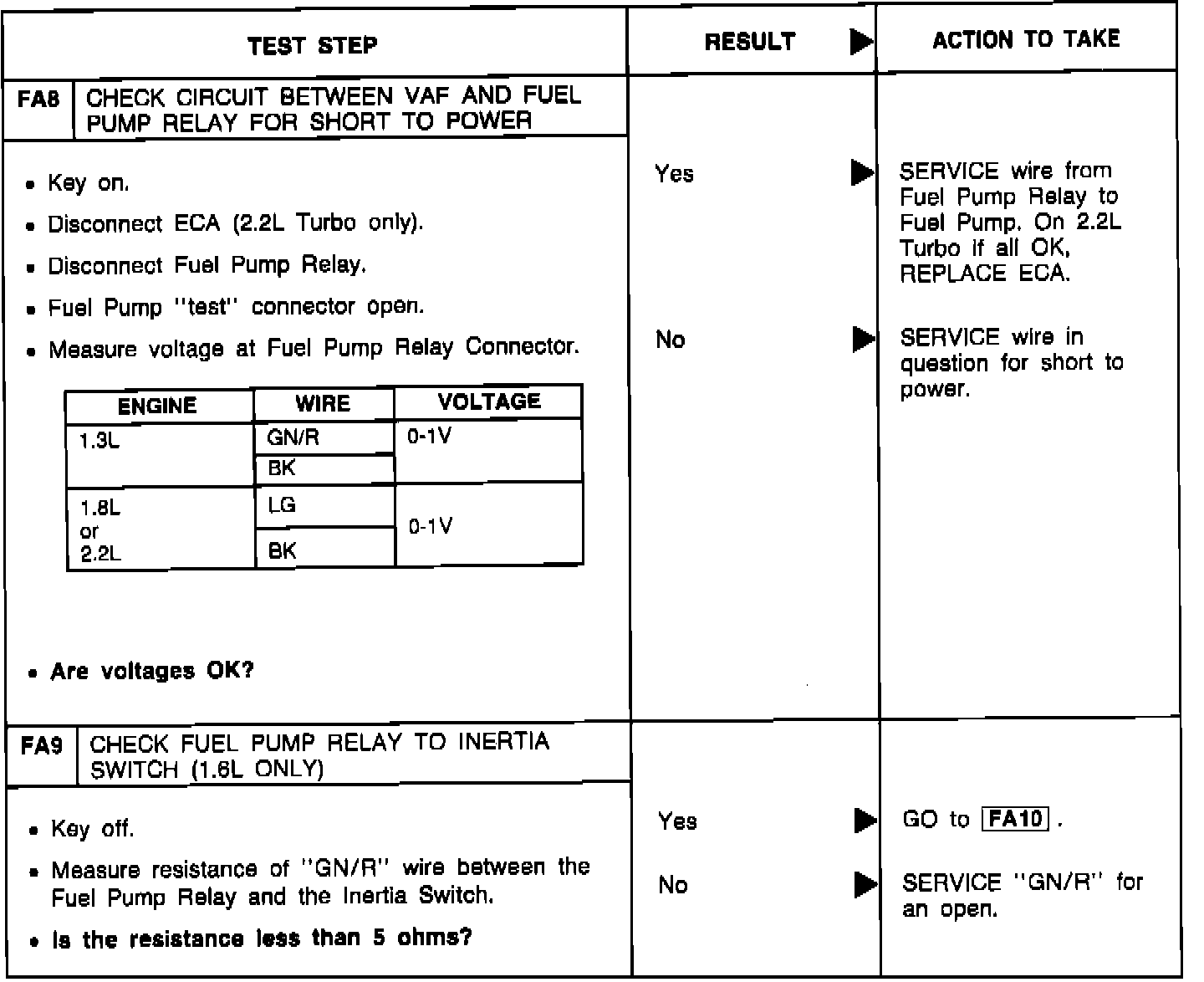

FA8 - FA9 VAF to Relay Check - Relay to Inertia Switch
FA8 - FA9 VAF to Relay Check - Relay to Inertia Switch
Check Fuel Pump Relay Circuits:
