Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Fuel Delivery and Air Induction
>>
Inertia Fuel Shutoff Switch
>>
Testing and Inspection
>>

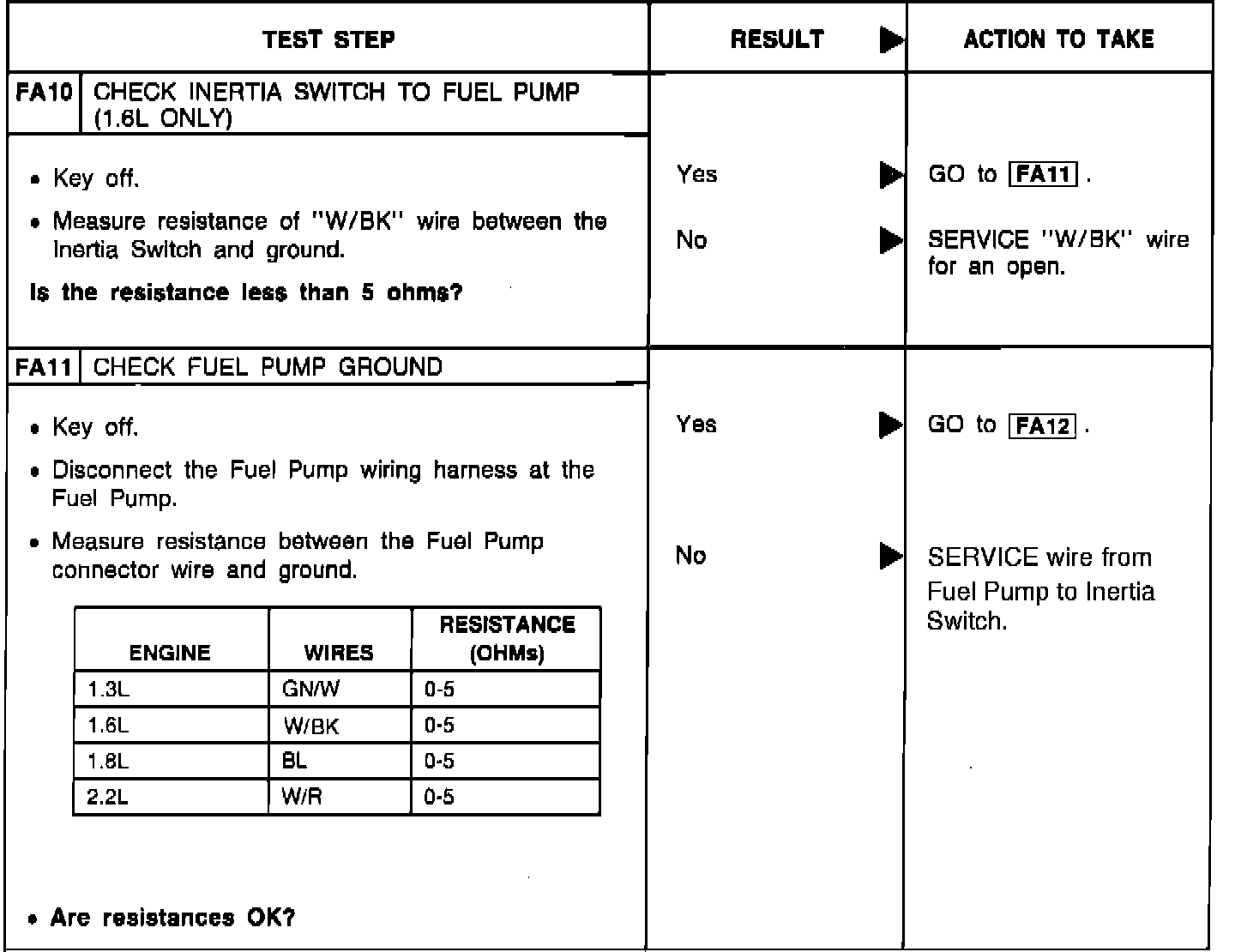

FA10 - FA11 Inertia Switch to Fuel Pump and Pump Ground
FA10 - FA11 Inertia Switch to Fuel Pump and Pump Ground
Check Fuel Pump Circuits:
