Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> FD - Fuel Injector Test >> FD1 - Check Fuel Injection Function

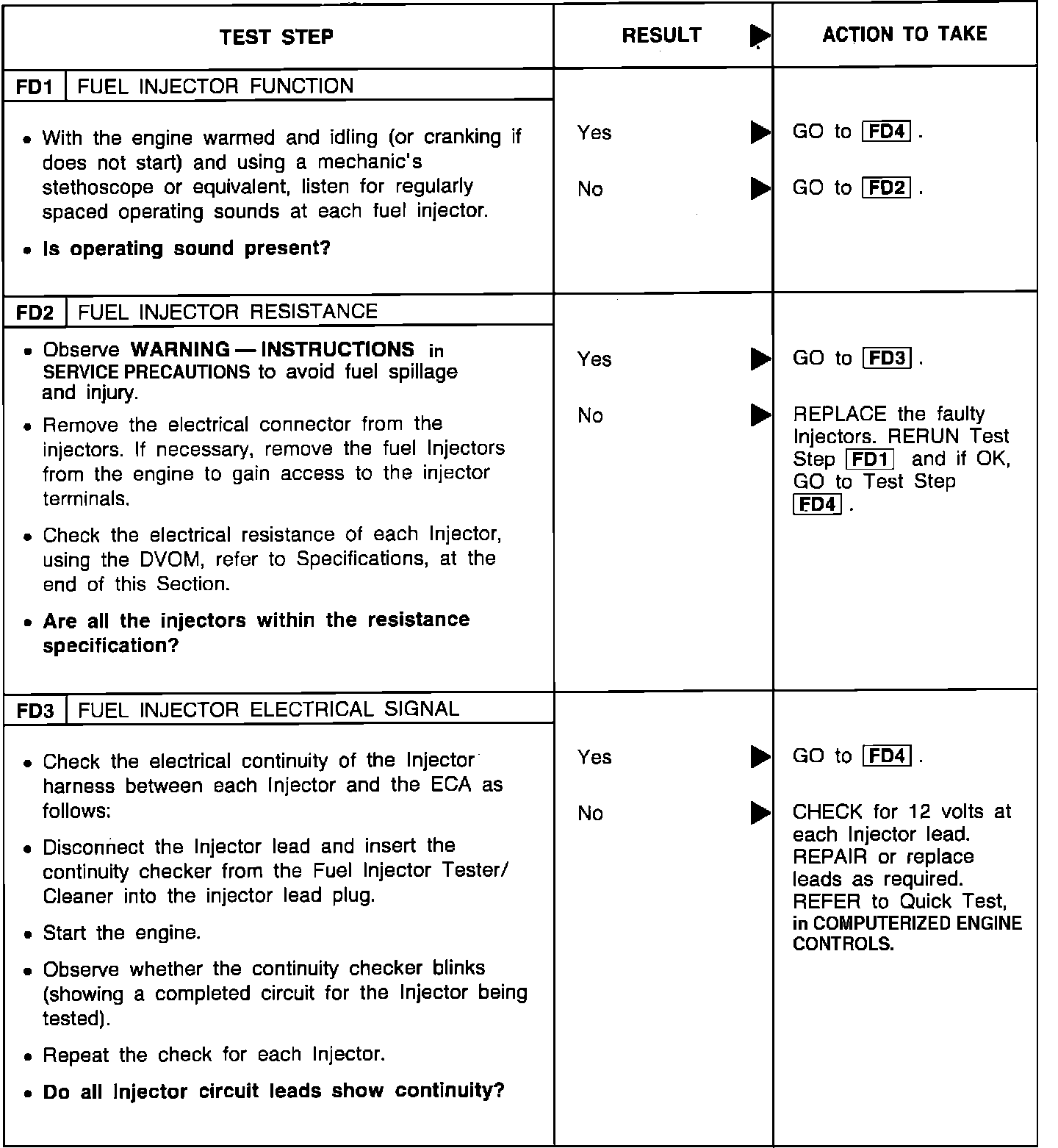

FD1 - Check Fuel Injection Function

Check Fuel Injector:
