Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> FB - Low Fuel Pressure Test >> FB4 - FB5 Fuel Pressure Regulator Checks

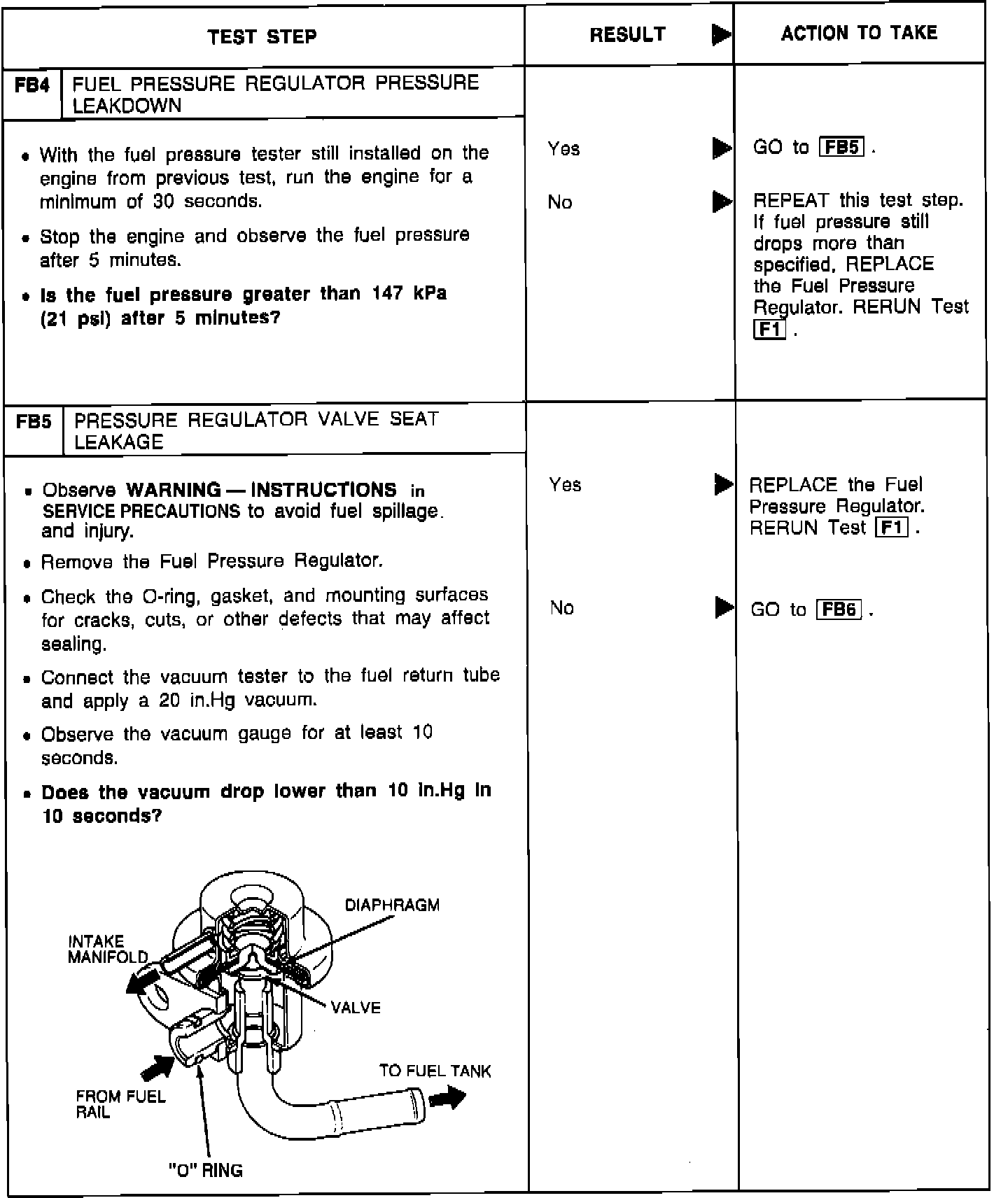

FB4 - FB5 Fuel Pressure Regulator Checks

Check Fuel Pressure Regulator:
