Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> FA - No Fuel Pressure Test >> FA13 - Fuel Pump Motor Check

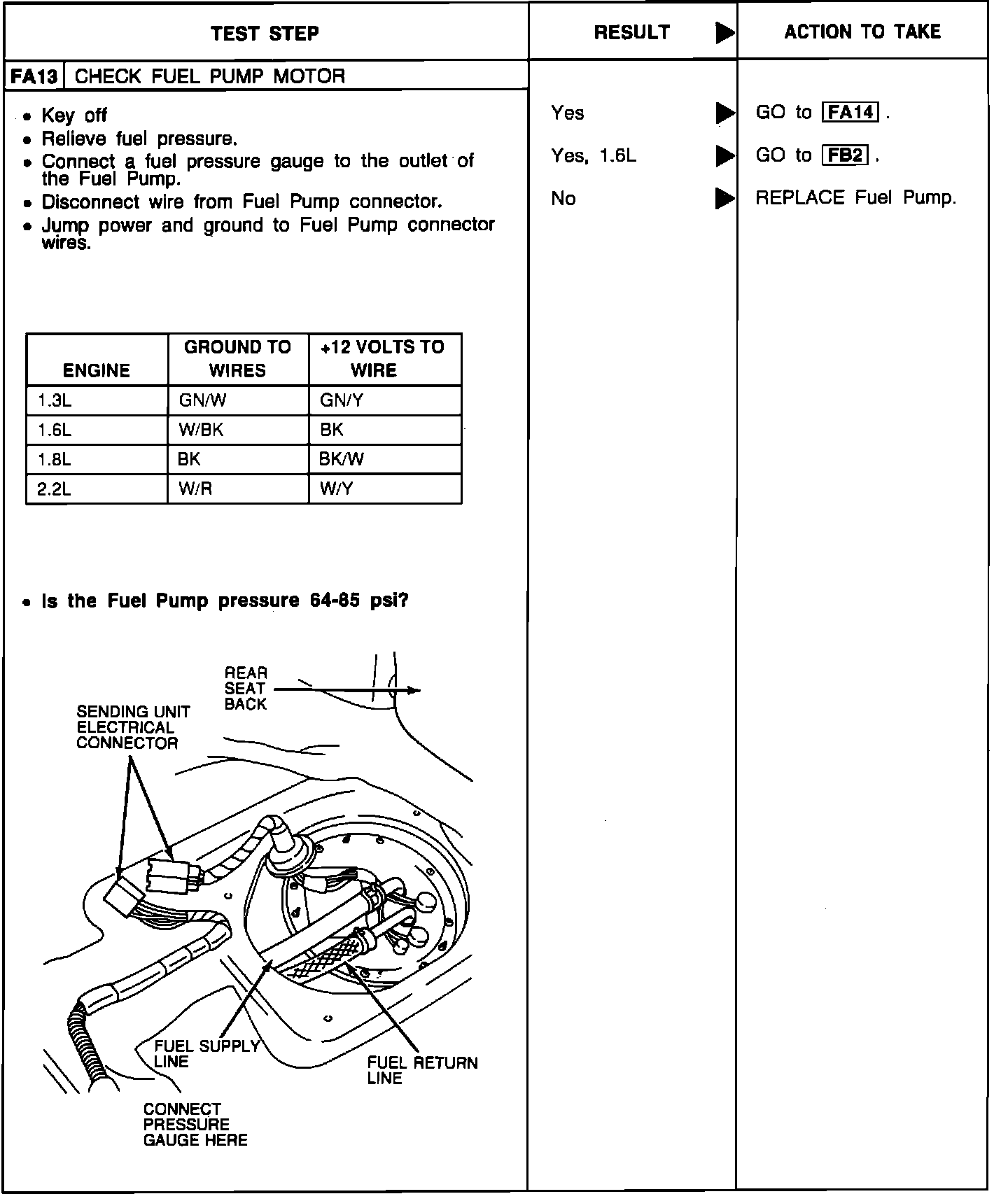

FA13 - Fuel Pump Motor Check

Check Fuel Pump Motor:
