Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> VPWR - Vehicle Power >> VPWR4 - Battery to Main Relay

VPWR4 - Battery to Main Relay

*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

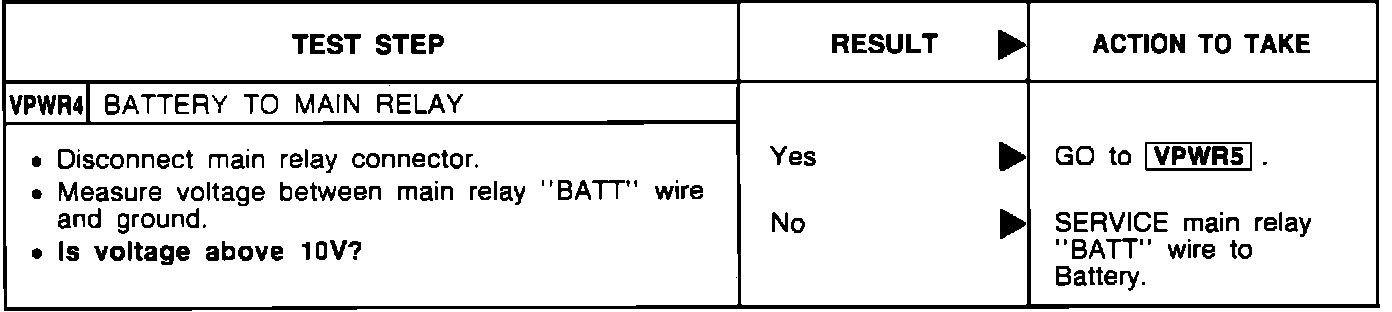

Pinpoint Test VPWR4:
