Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> VAT - Vane Air Temperature Sensor >> VAT2 - VAT Input Resistance

VAT2 - VAT Input Resistance

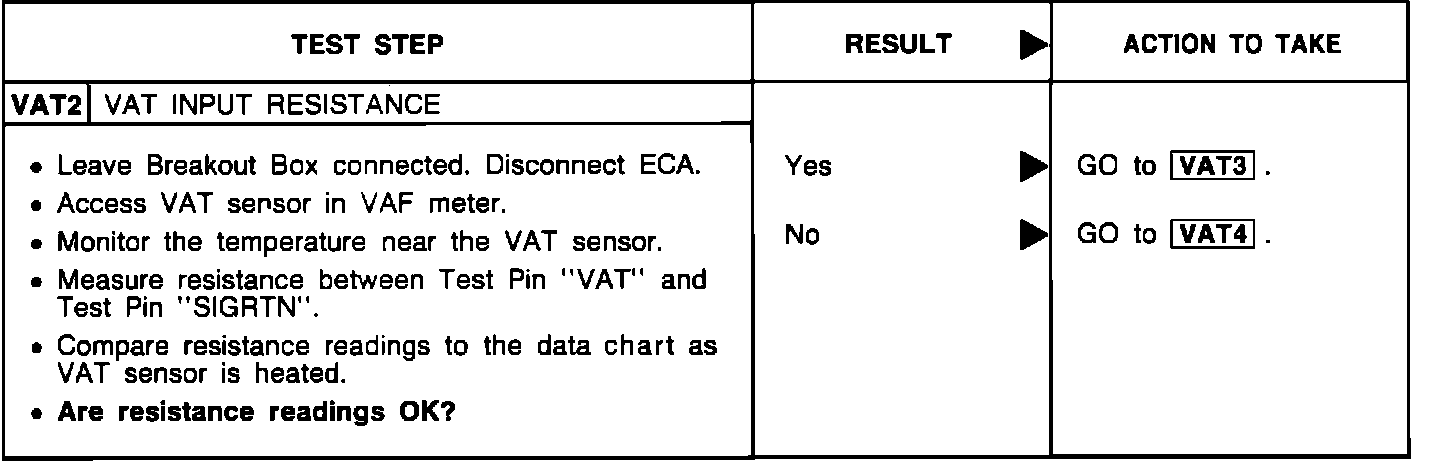

Pinpoint Test VAT2:
