Pinpoint Tests
>>
VAF - Vane Air Flow Sensor
>>
VAF - Data Sheet
VAF - Data Sheet
*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

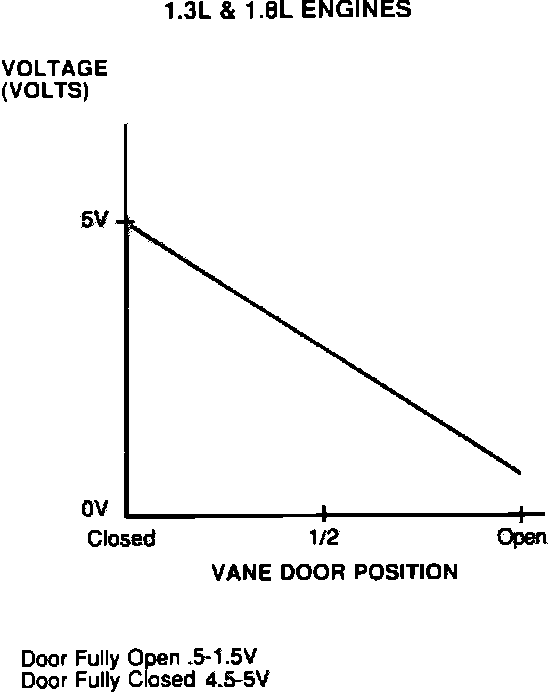

Pinpoint Test VAF Data Chart:
