Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> STG - Switch to Ground >> STG1 - Check Switch Signal

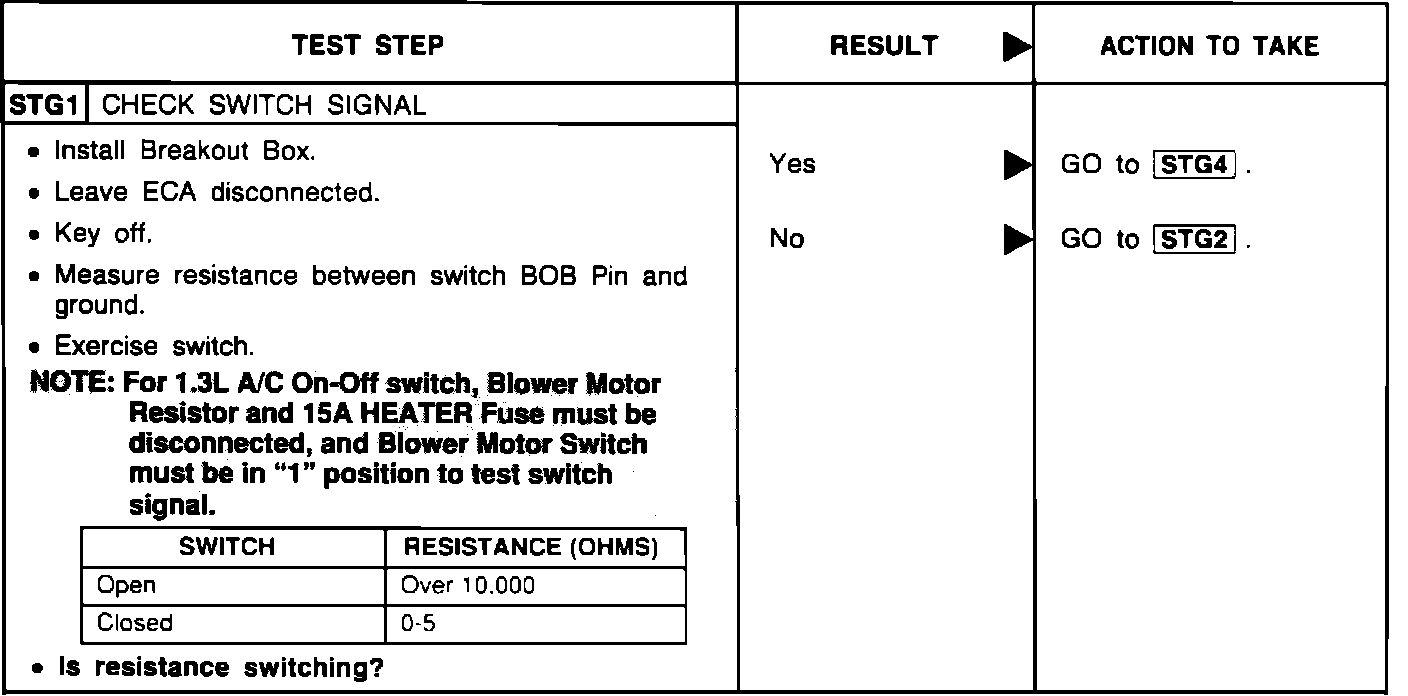

STG1 - Check Switch Signal

*** UPDATED BY TSB# 91-14-B1 DATED 08-30-93

Pinpoint Test STG1:
