Overview of Program 91B01

June, 1992

TO: All Ford and Lincoln-Mercury Dealers

SUBJECT:
Owner Notification Program 91BO4 - Speedometer Cable Speed Sensor.

OASIS - YES
OWNER LIST - YES
PARTS RETURN - NO

AFFECTED VEHICLES

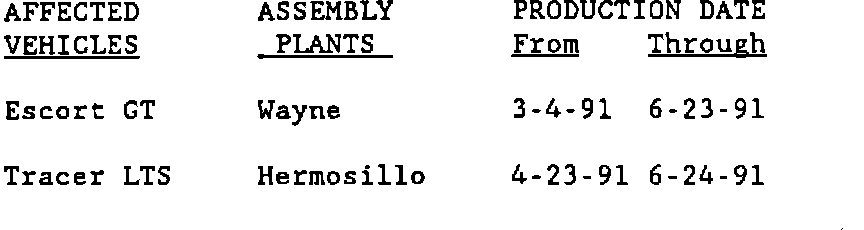

Certain 1991 Escort GT and Tracer LTS cars equipped with 1.8L engines and 5-speed manual transmissions. Specific vehicle information (see illustration)

REASONS FOR THIS PROGRAM
A ball seal in the speedometer cable speed sensor may not have been installed at assembly. A sensor with a missing seal may result in transmission fluid being pumped up the speedometer cable to the speedometer head and dripping into the driver's footwell area.

SERVICE ACTION
Cars returned for service will be inspected to determine if the seal was omitted from the speed sensor and, if necessary, the sensor, speedometer cable and/or speedometer head will be replaced.

ATTACHMENTS
Attachment I
- Administrative Information

Attachment II
- Labor Allowances
- Parts Ordering Information

Attachment III
- Technical Information
