Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Speed/Throttle Actuator - Electronic >> Testing and Inspection >> BPA3 Function Check For Stuck Closed

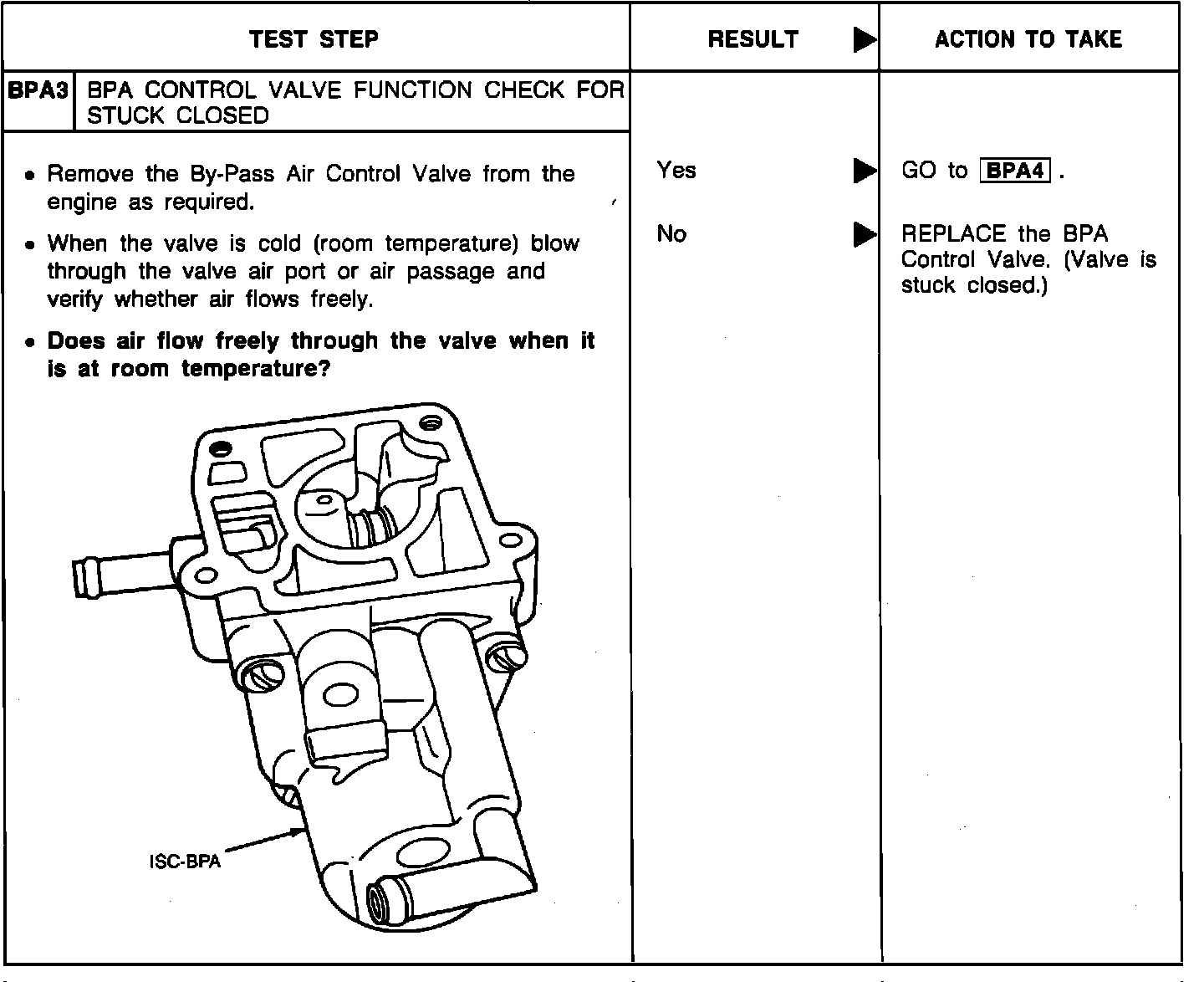

BPA3 Function Check For Stuck Closed

BPA3 Control Valve Function Check (Stuck Closed):
