Interior/Exterior Lighting System - Revision

Article No.
91-14B-41

Date
July 22, 1991



SHOP MANUAL - 1991 - SECTION 17-00 - LIGHTING, GENERAL SERVICE - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Lighting, General Service Section 17-00 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 17-00-3 thru 31 in original service manual have been revised by pages 17-00-3 thru 19 of this bulletin.

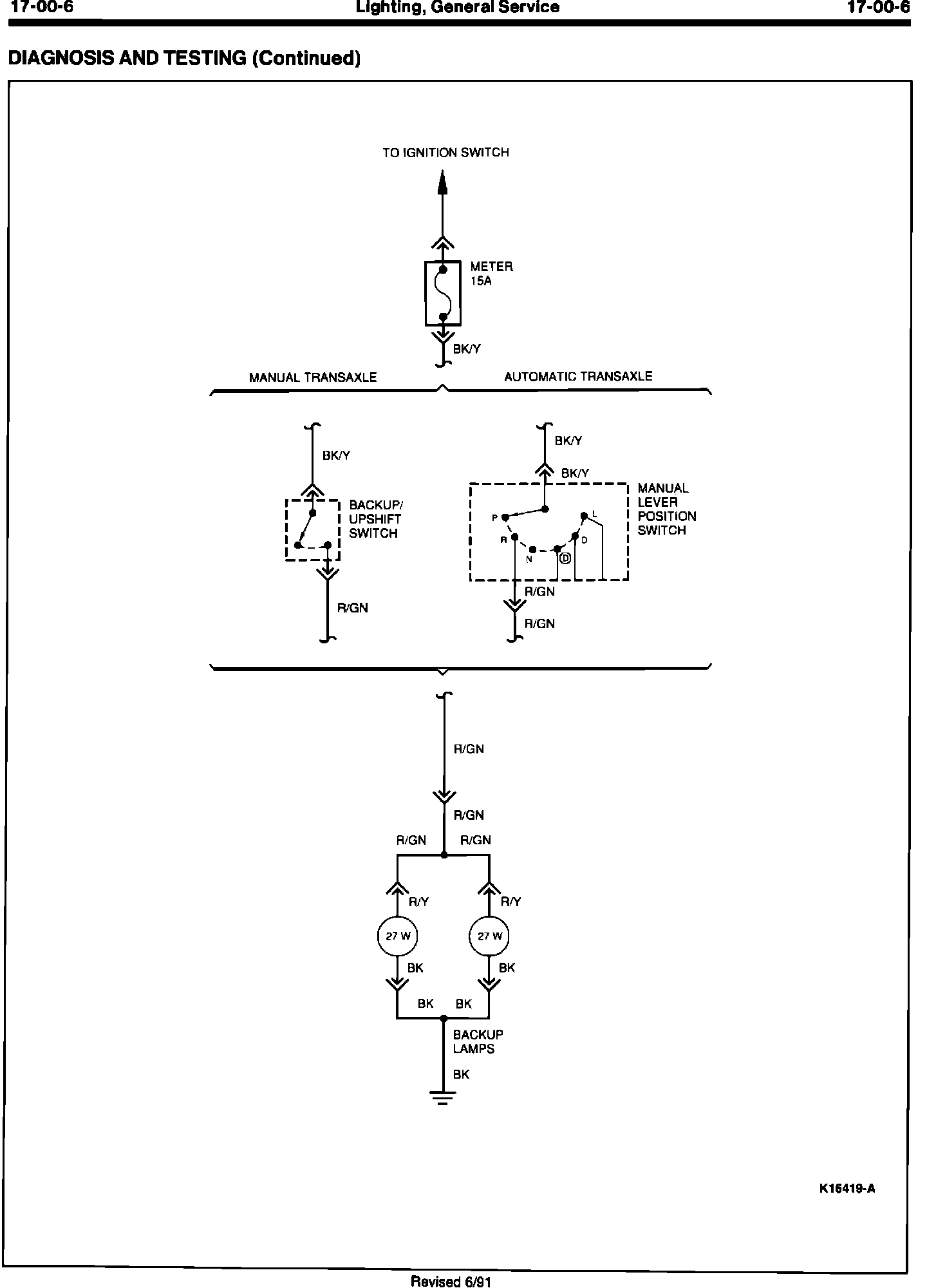

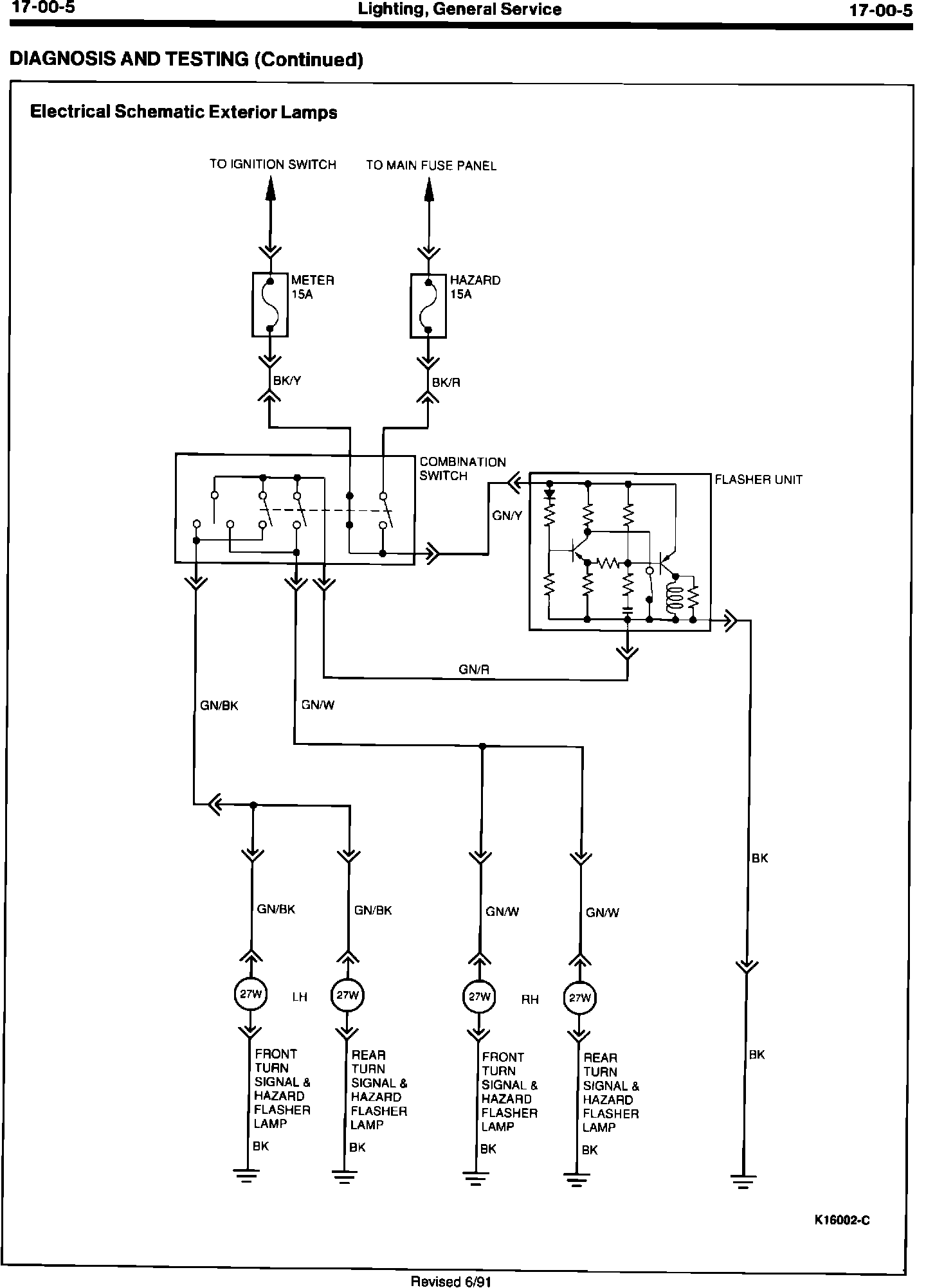

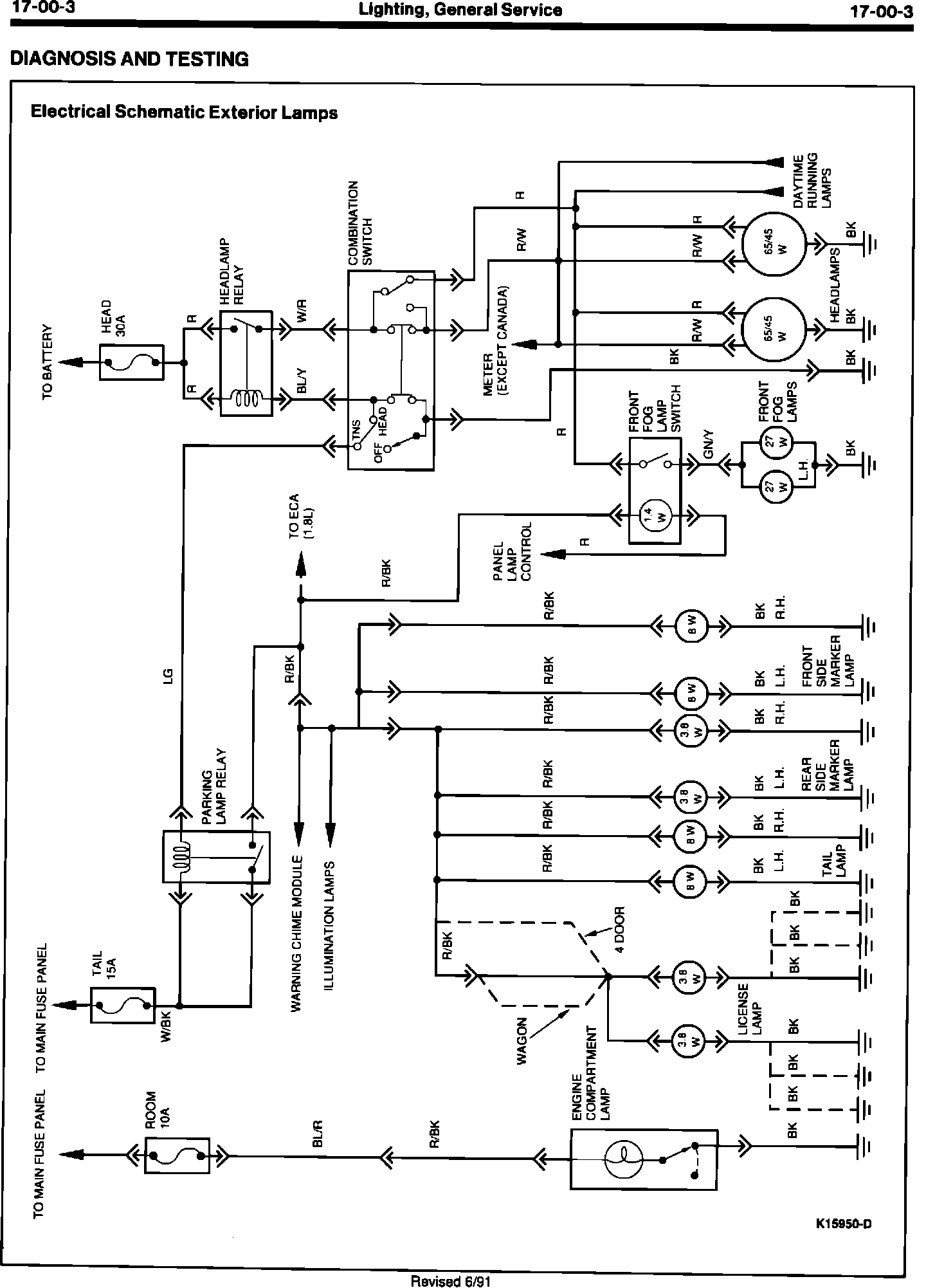

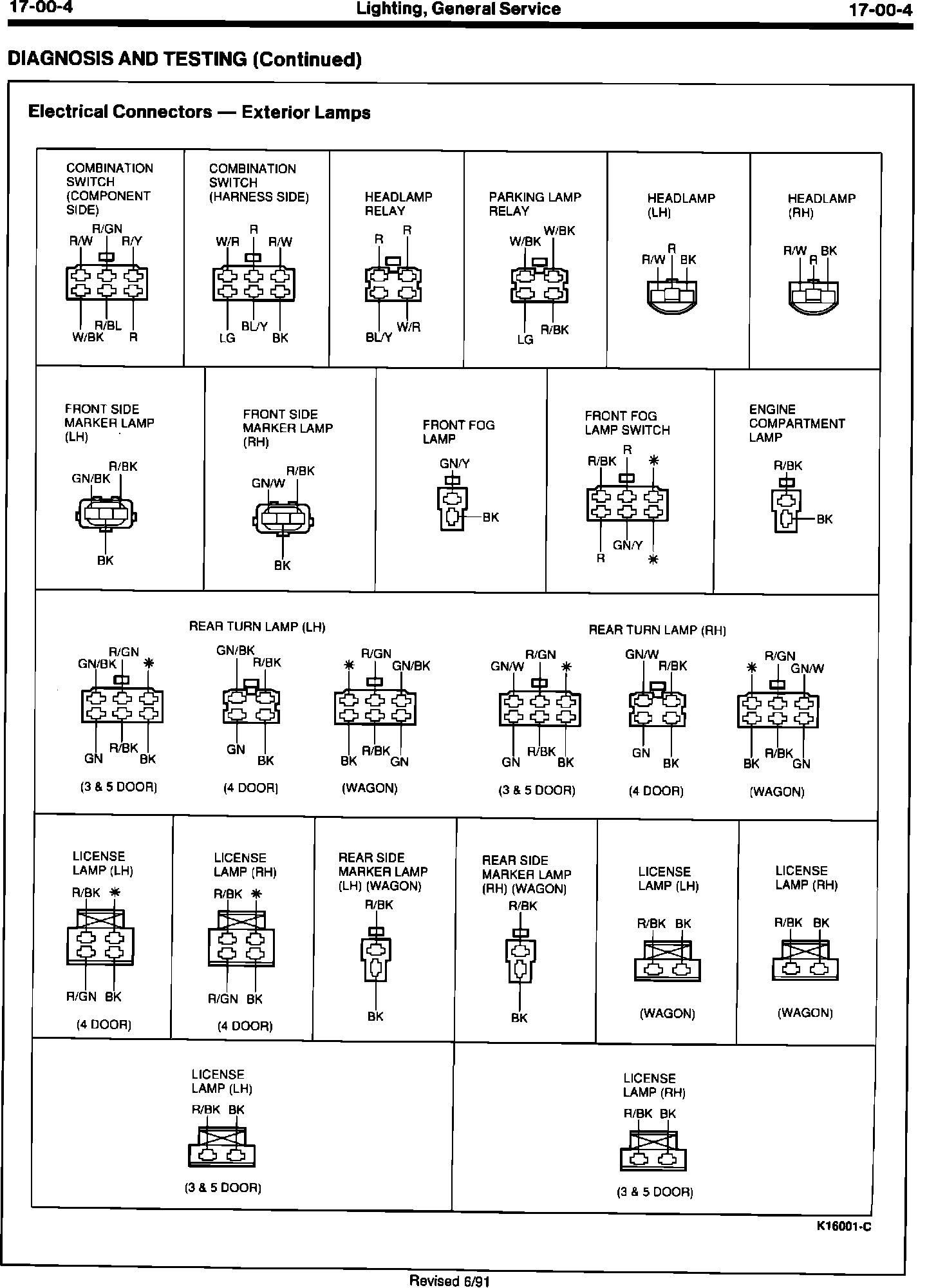

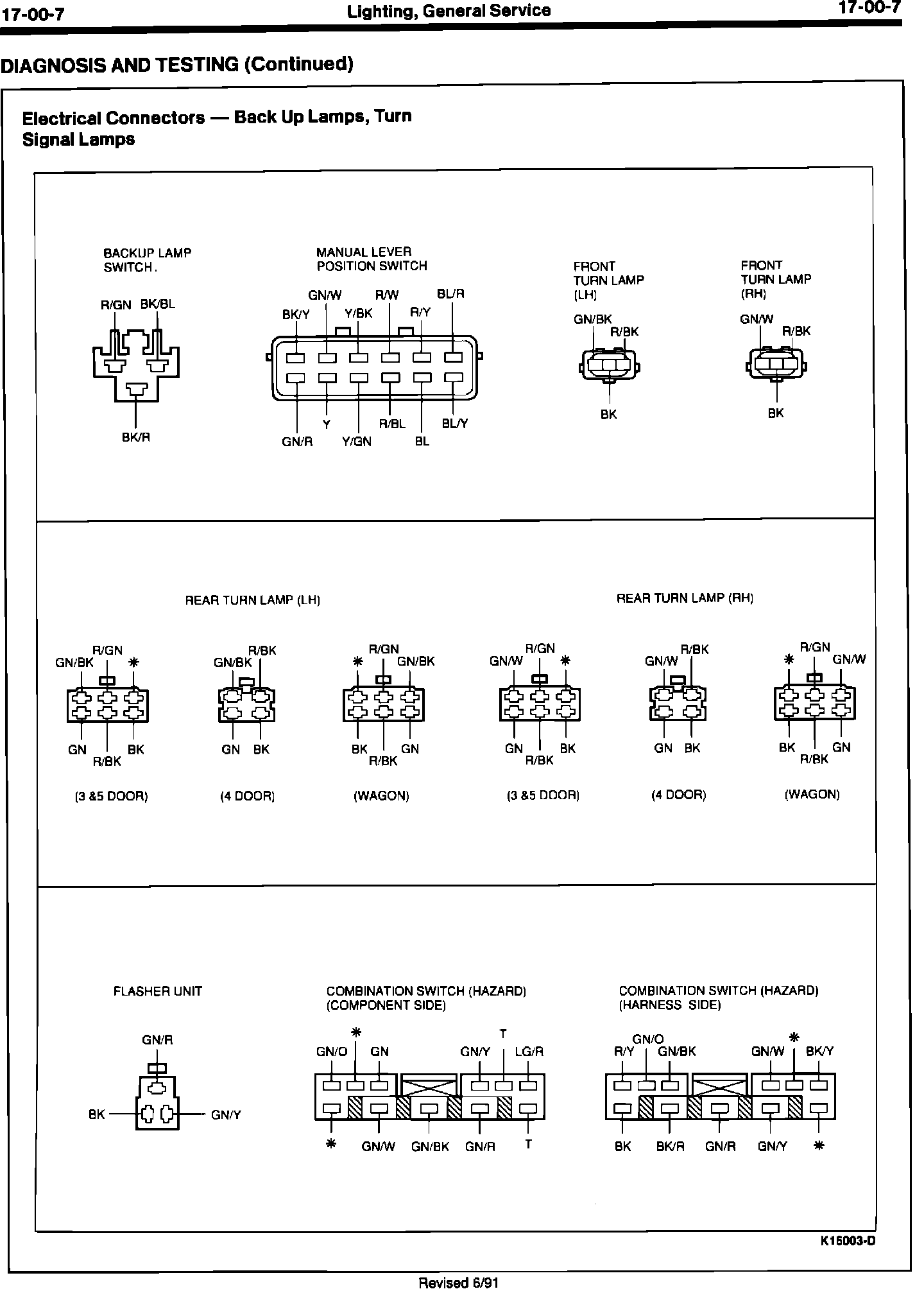

EXTERIOR ELECTRICAL SCHEMATIC & CONNECTOR ID

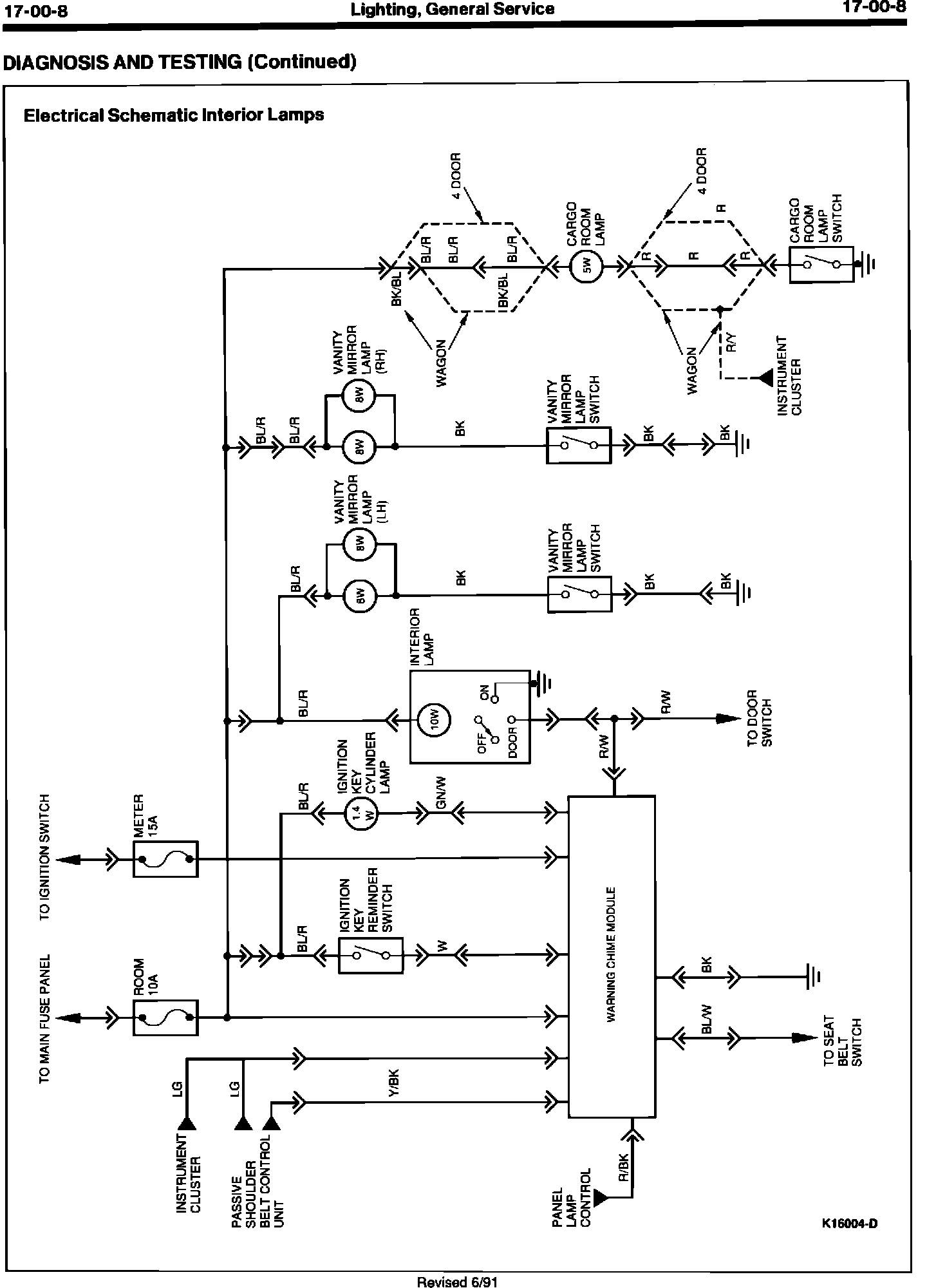

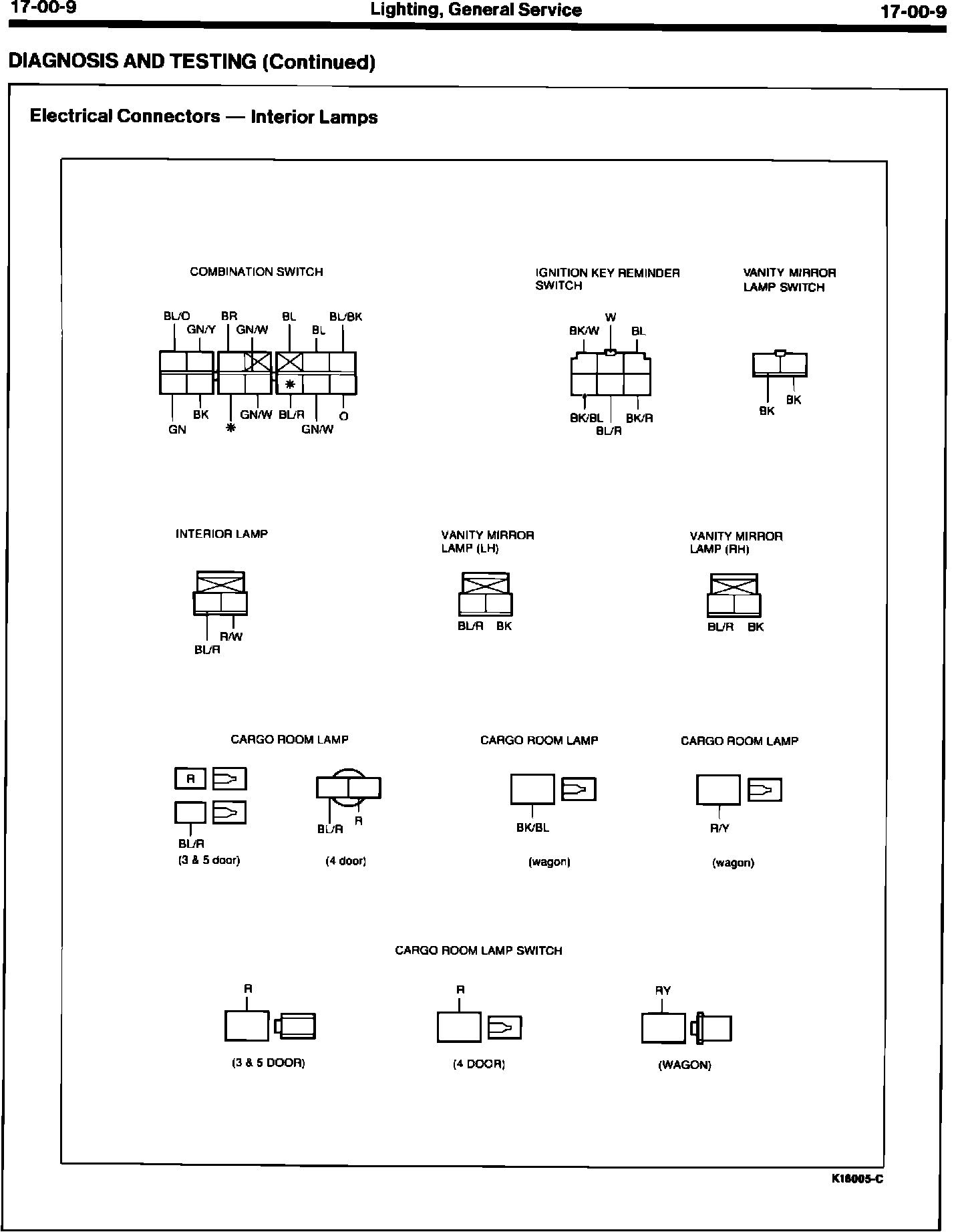

INTERIOR ELECTRICAL SCHEMATIC & CONNECTOR ID

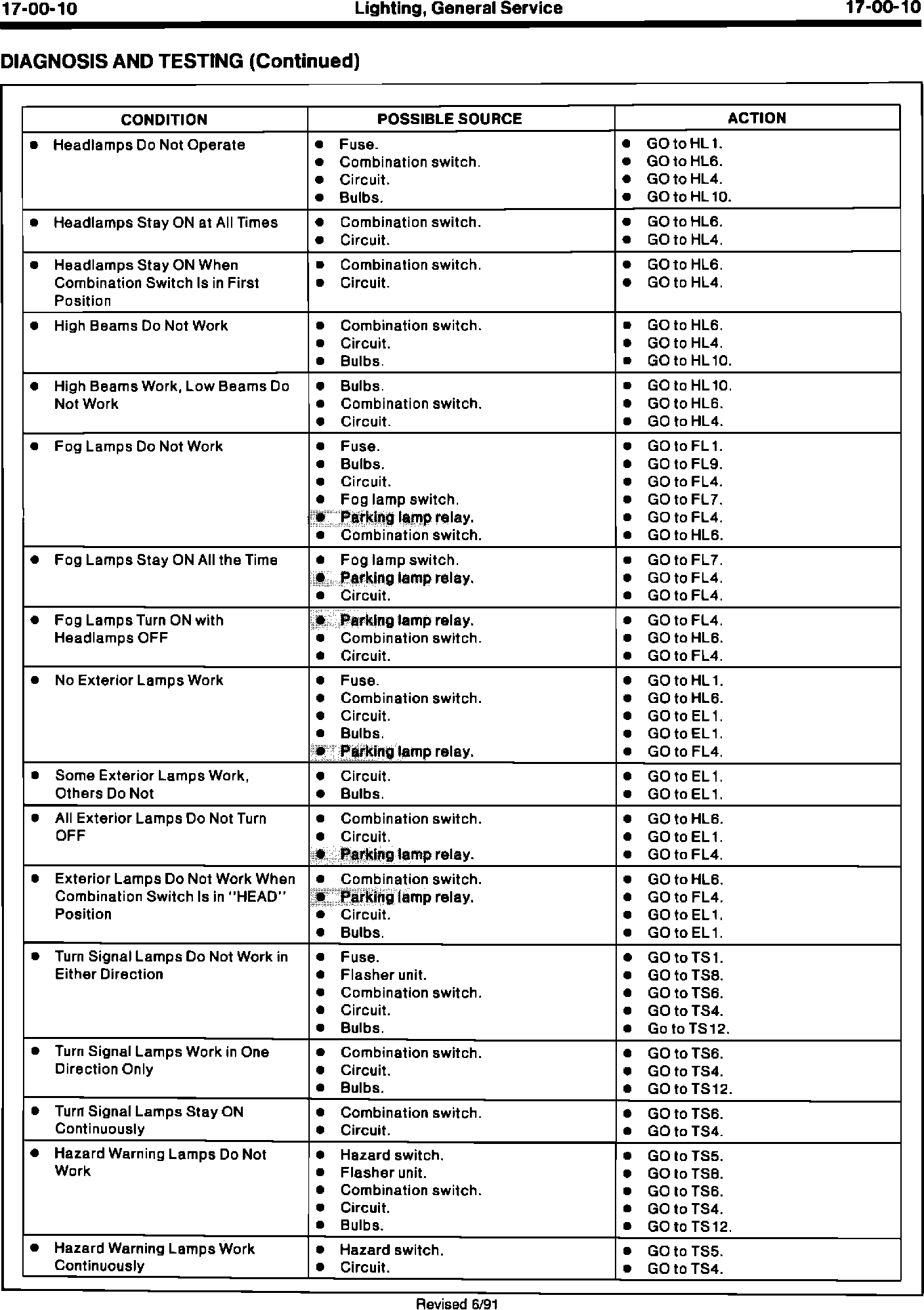

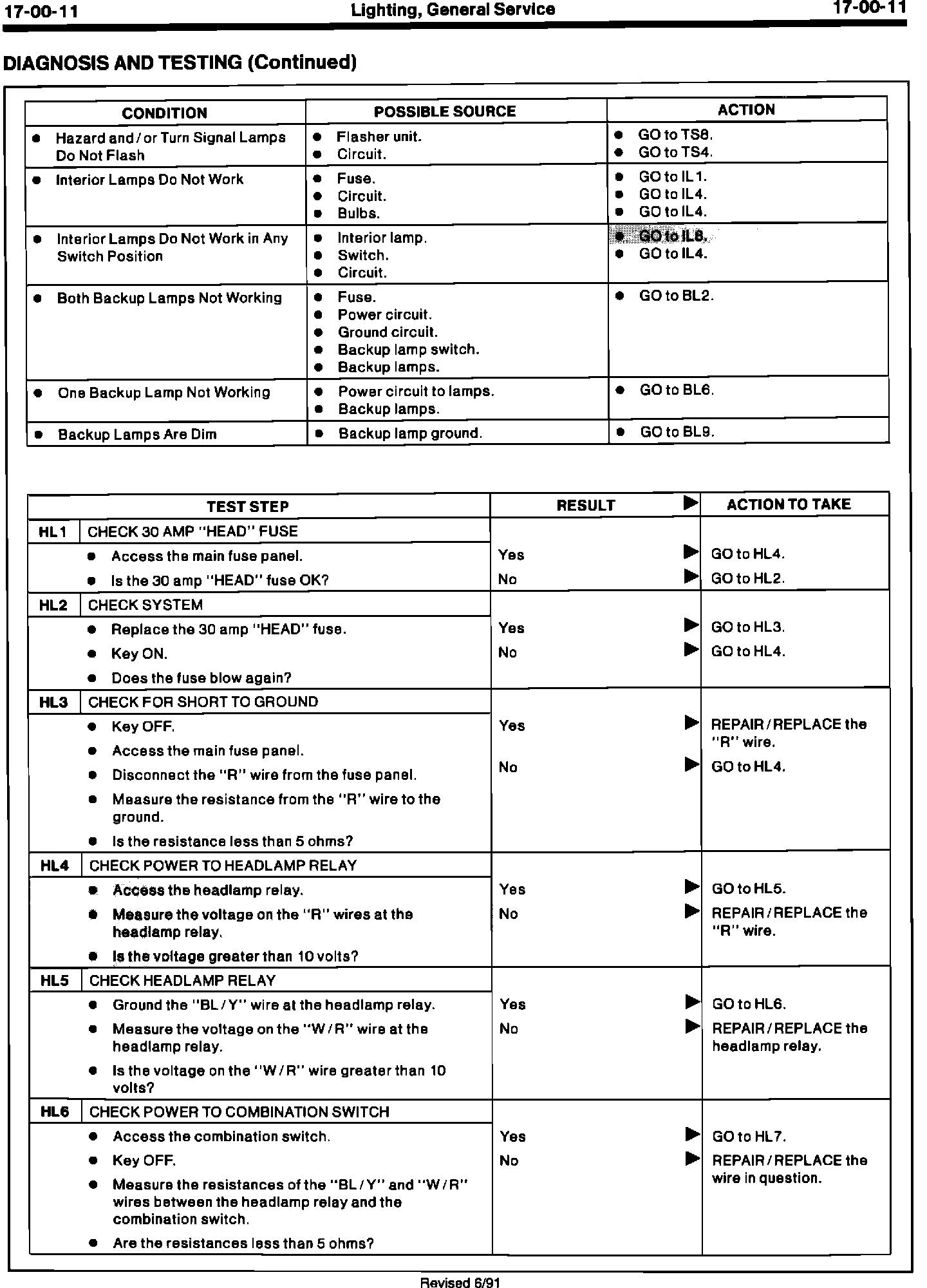

DIAGNOSIS BY SYMPTOM & TEST HL1 THRU HL6

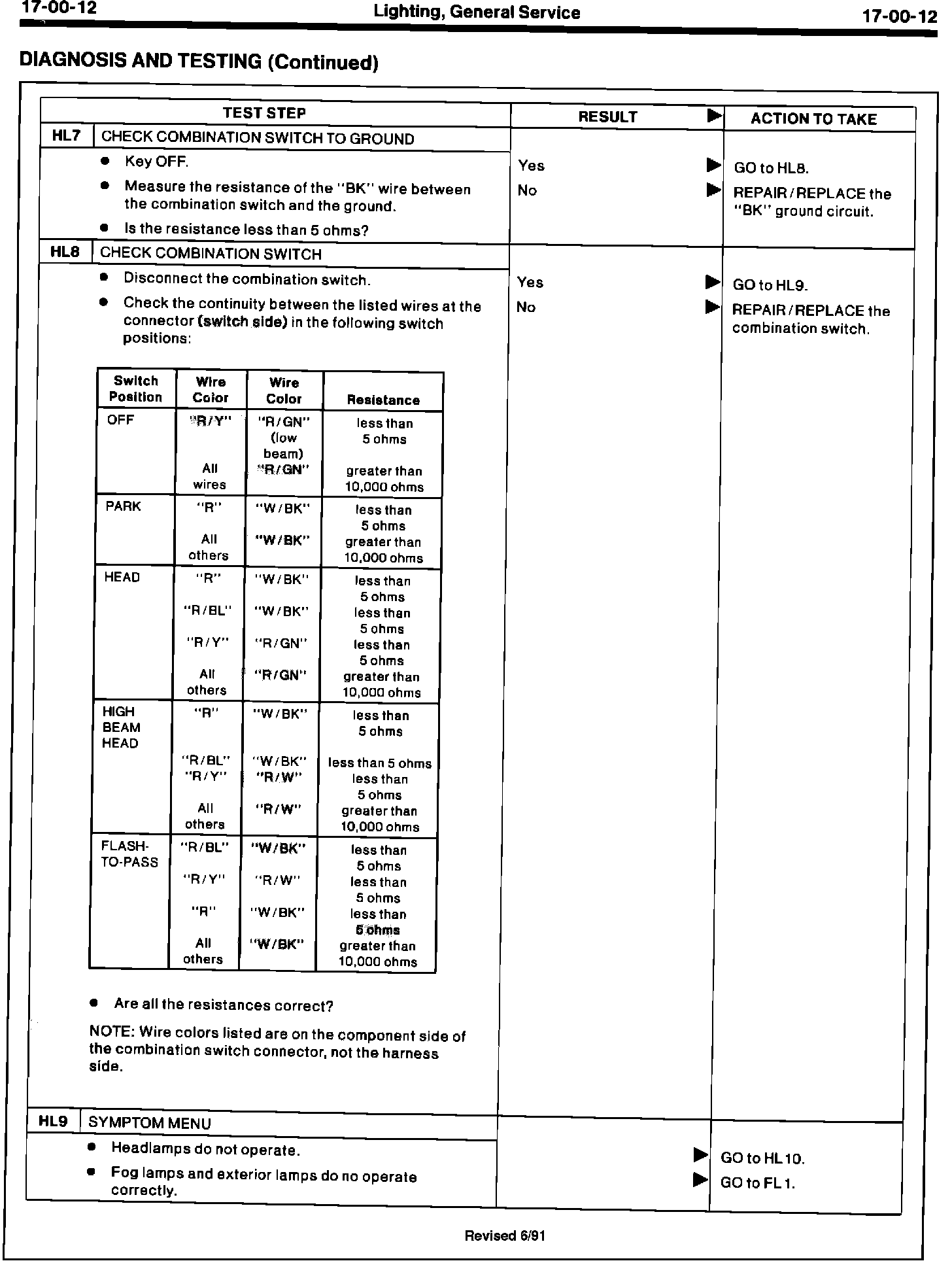

TEST HL7 THRU HL9

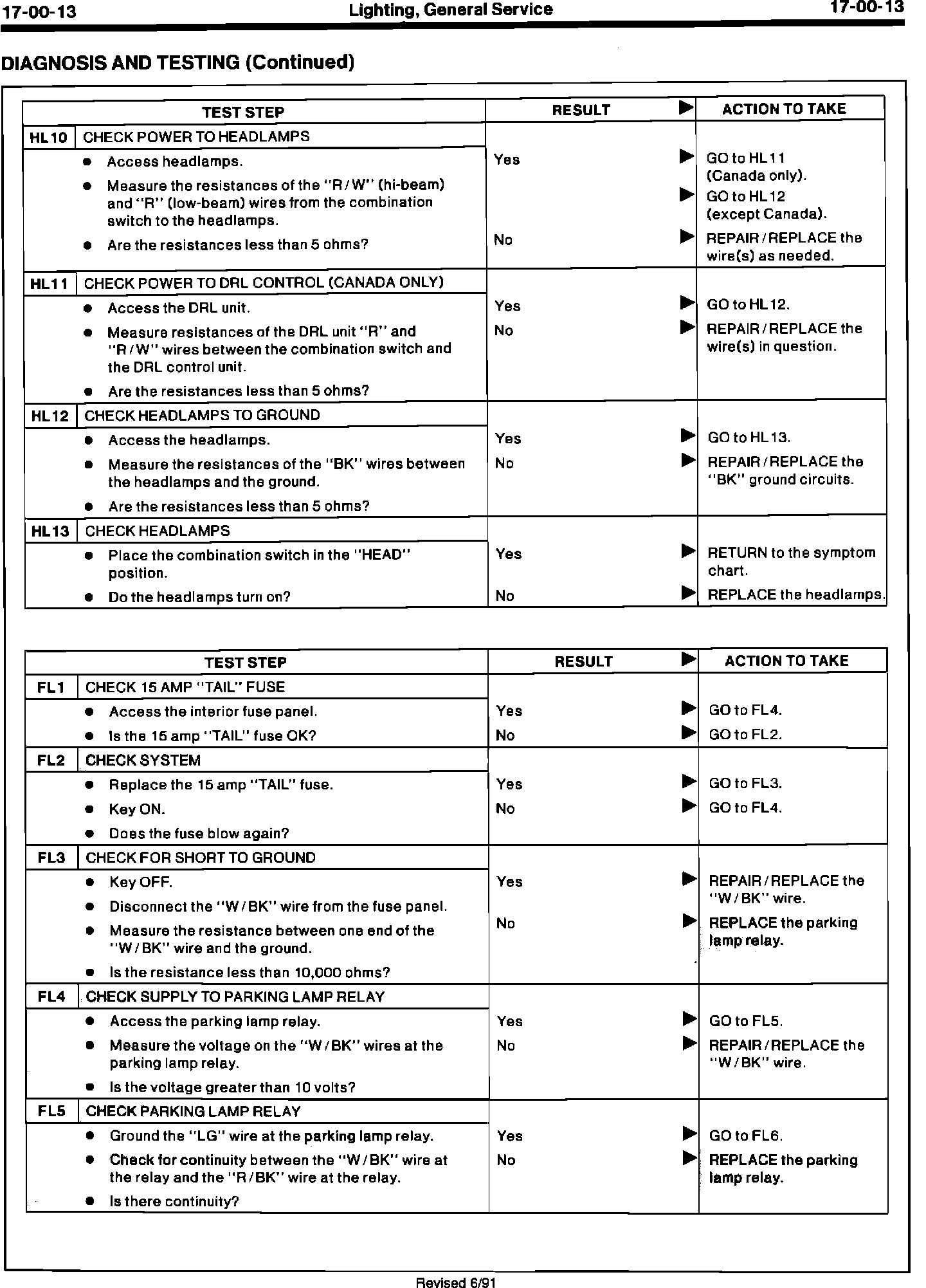

TEST HL10 THRU FL5

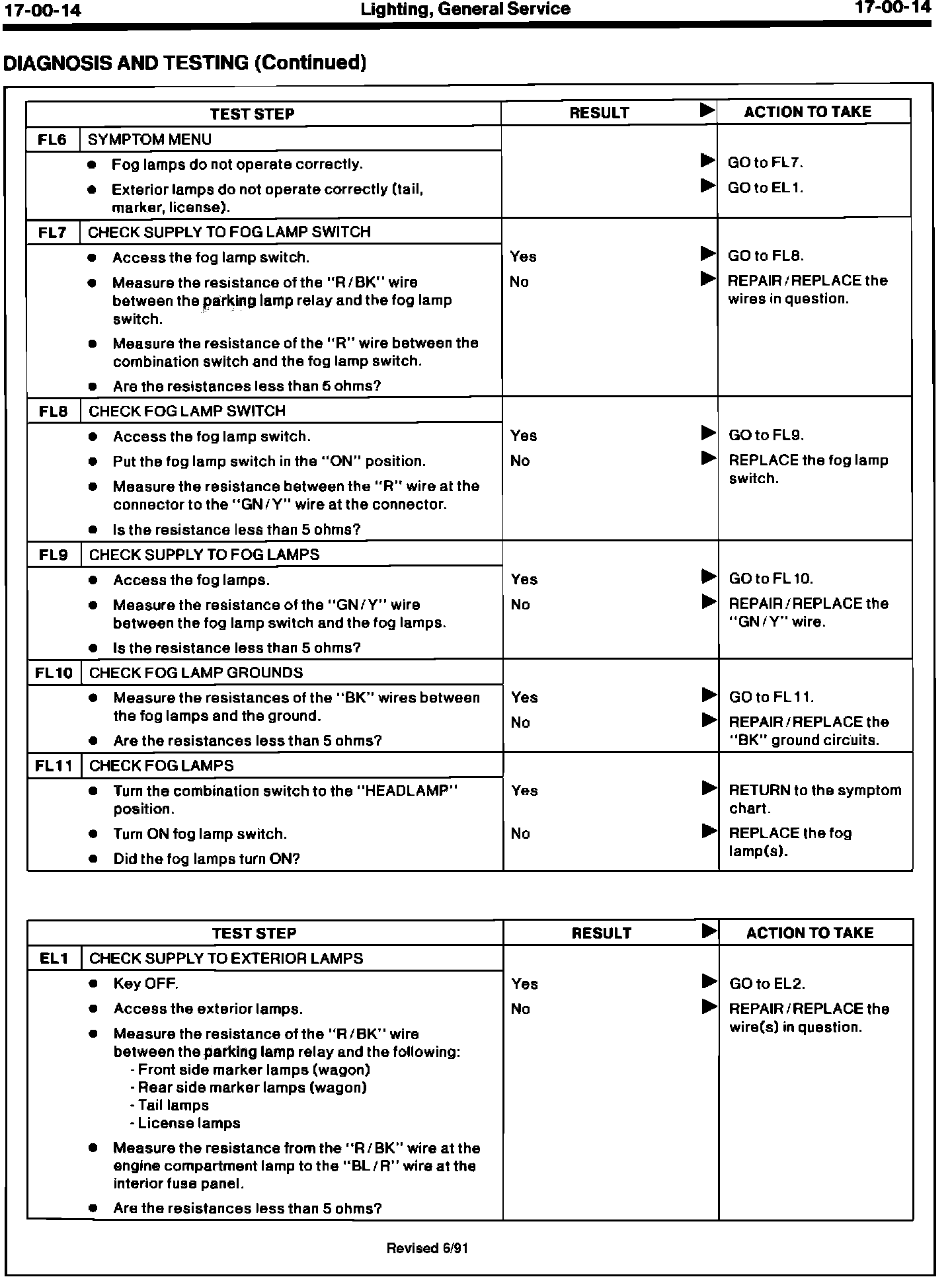

TEST FL6 THRU EL1

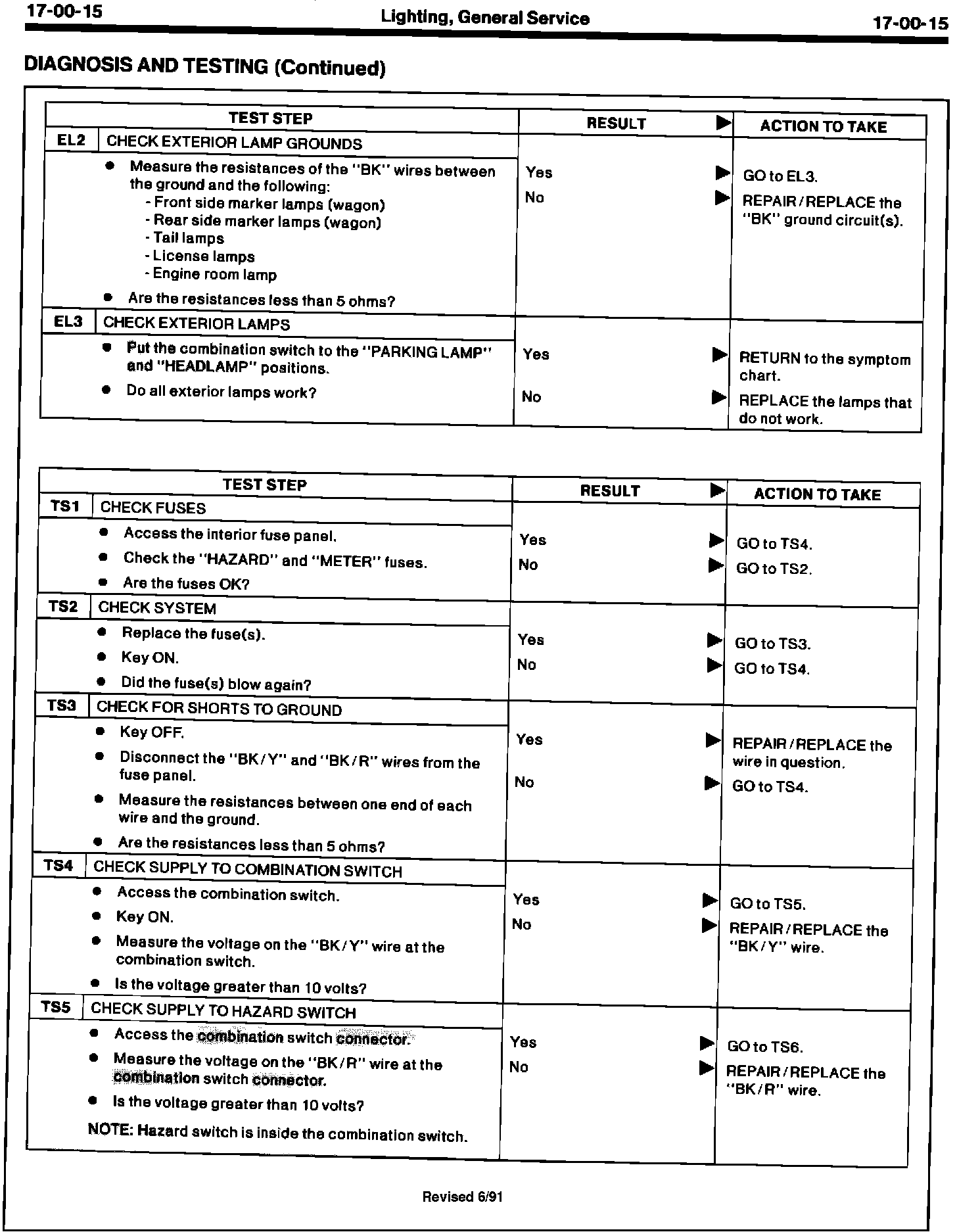

TEST EL2 THRU TS5

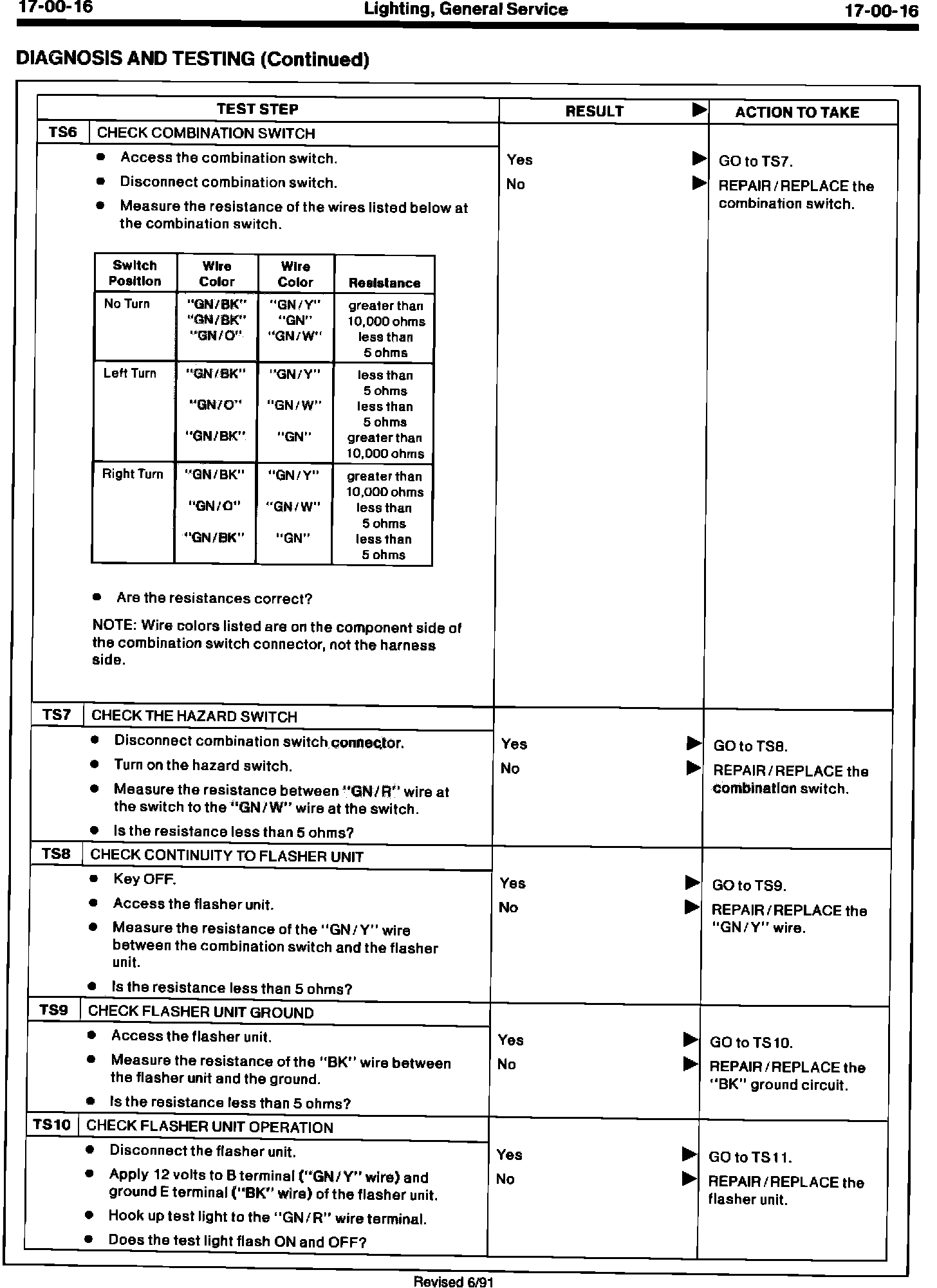

TEST TS6 THRU TS10

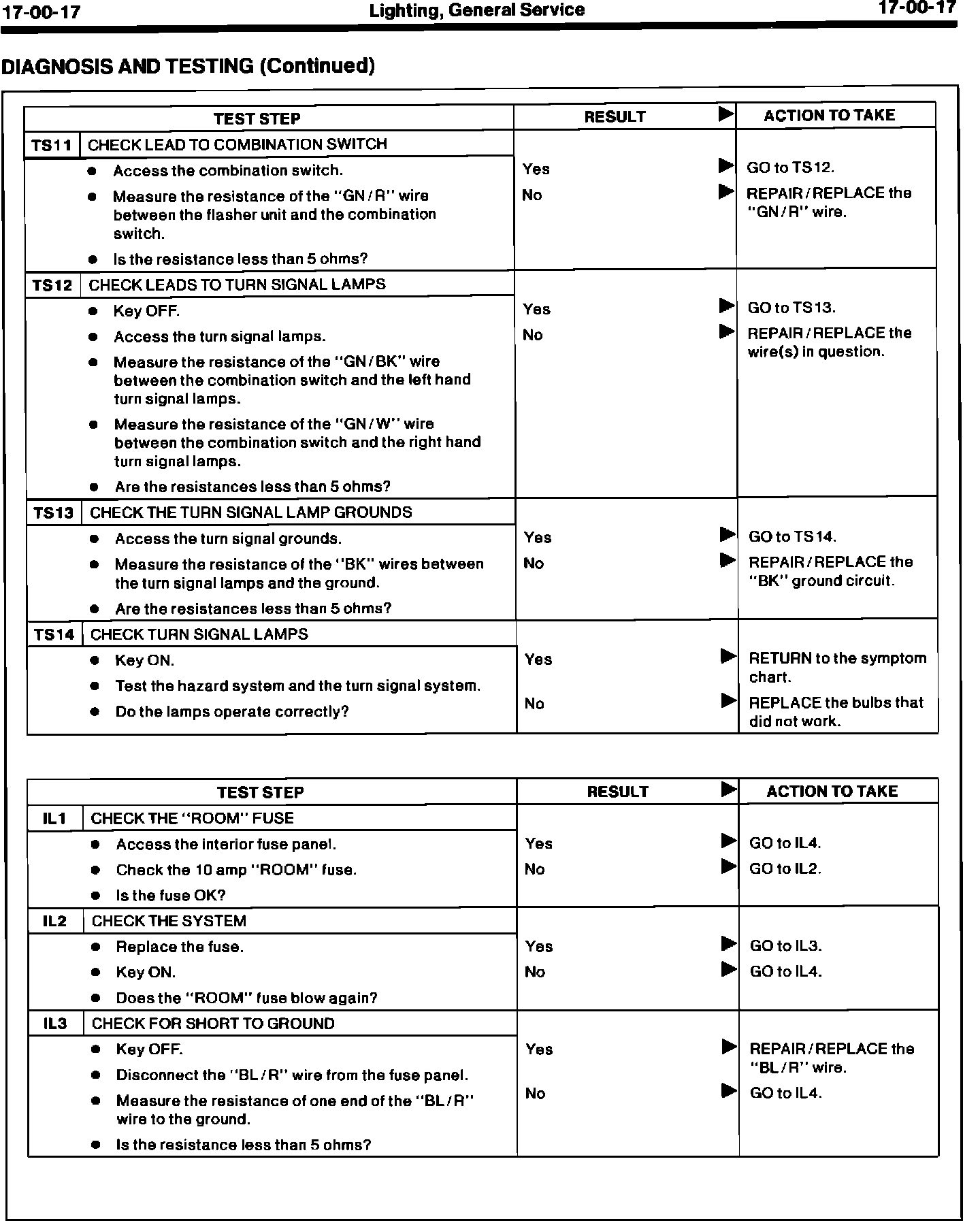

TEST TS11 THRU IL3

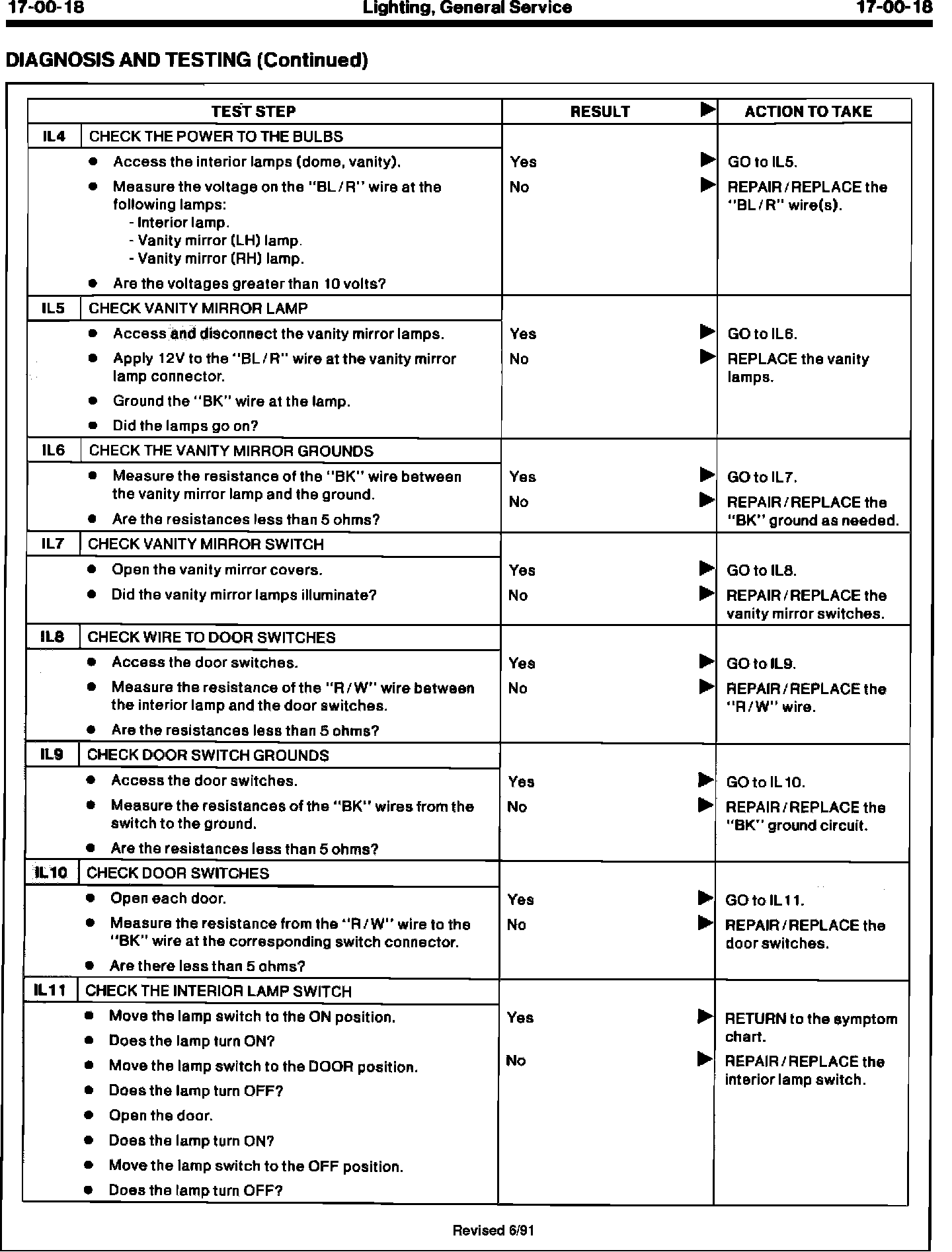

TEST IL4 THRU IL11

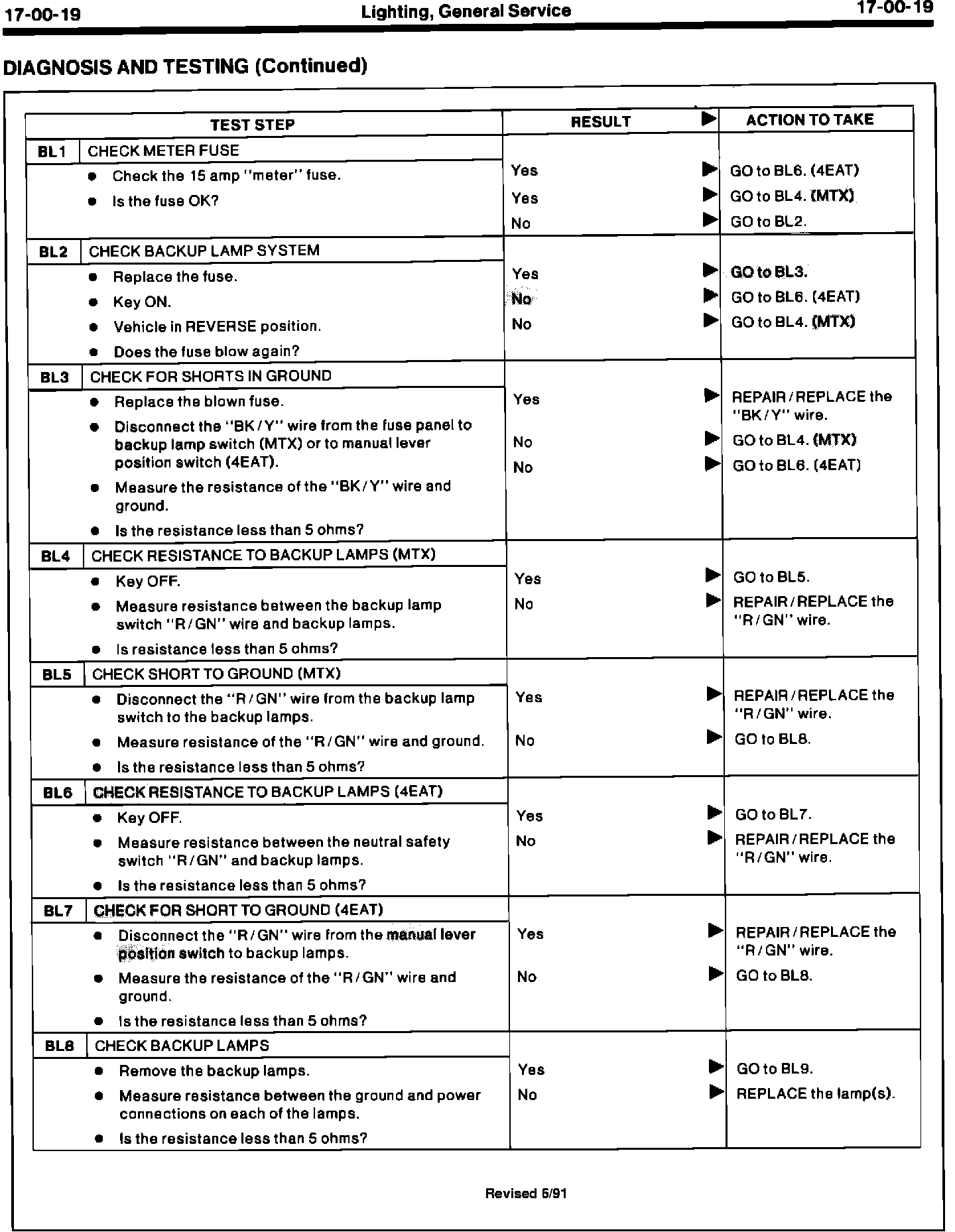

TEST BL1 THRU BL8

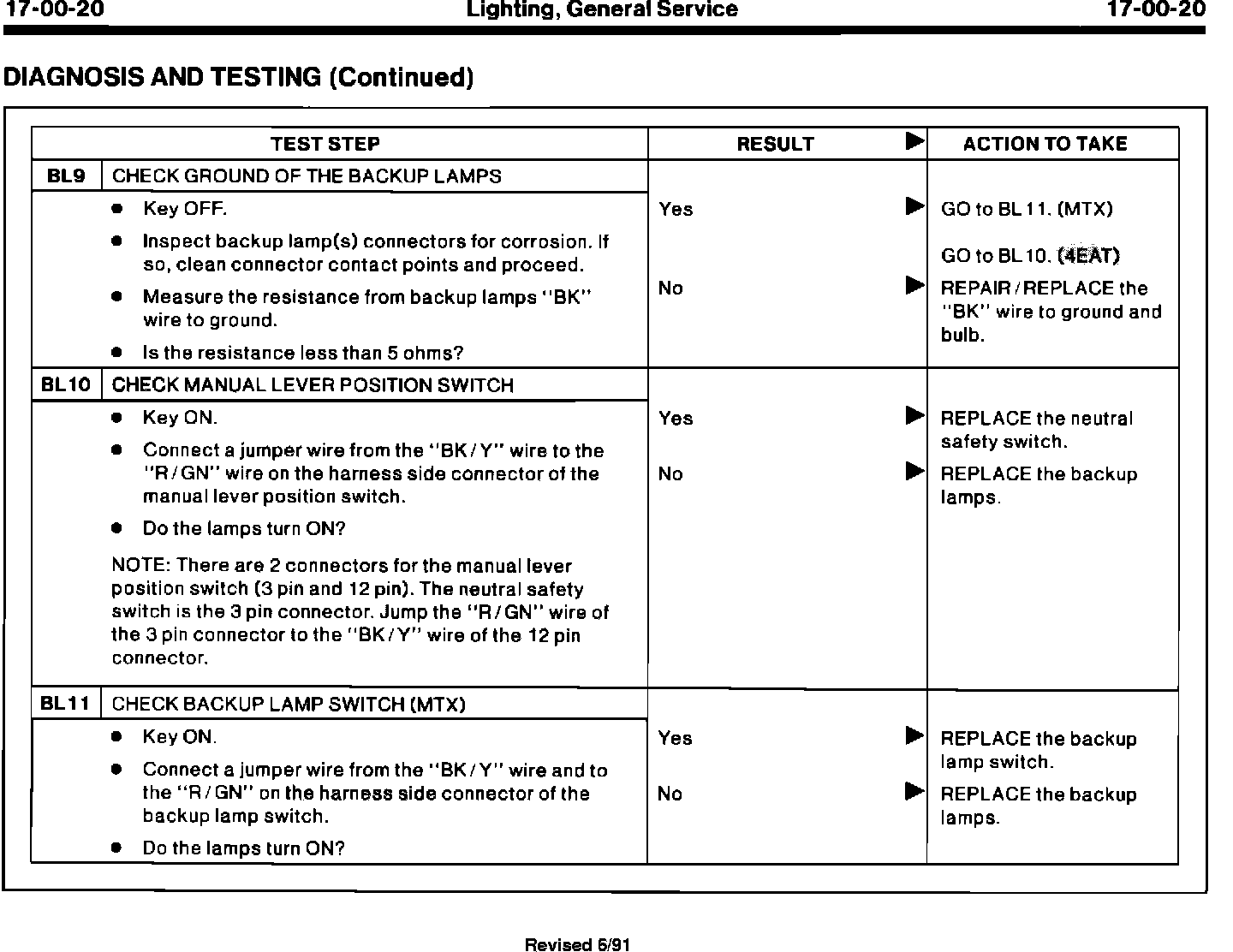

TEST BL9 THRU BL11



ACTION:
Refer to the pages in this TSB article for the updated information.


NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
