Horn Diagnosis and Testing - Manual Revision

Article No.
91-14B-37

SHOP MANUAL - 1991 - SECTION 13-06 - HORN - DIAGNOSTIC INFORMATION REVISED

07/22/91

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
Horn Section 13-06 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 13-06-2 and 3 through 6 are affected.

The new revised pages are:
13-06-2
13-06-3, 4

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

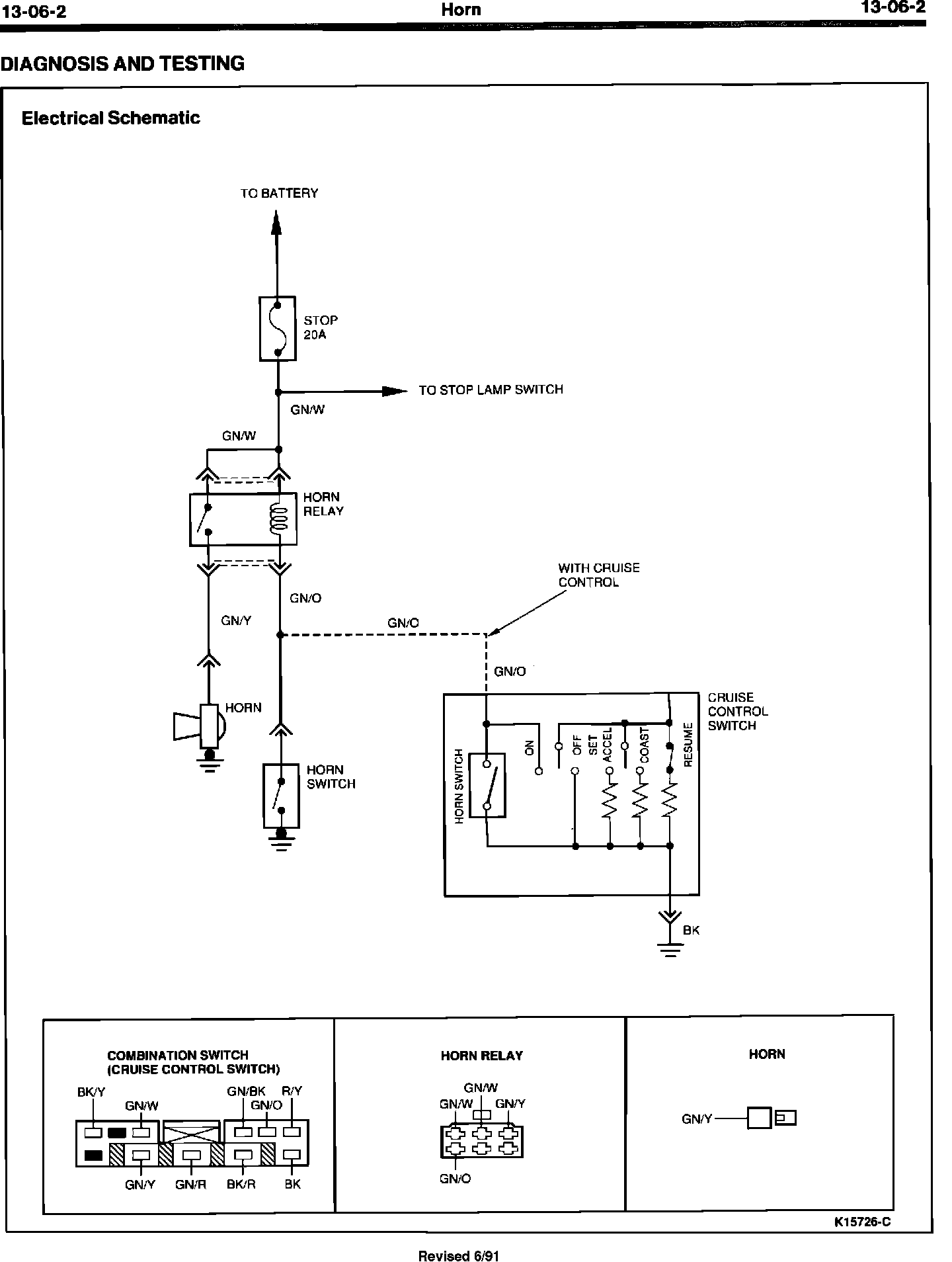

13-06-2 Electrical Schematic

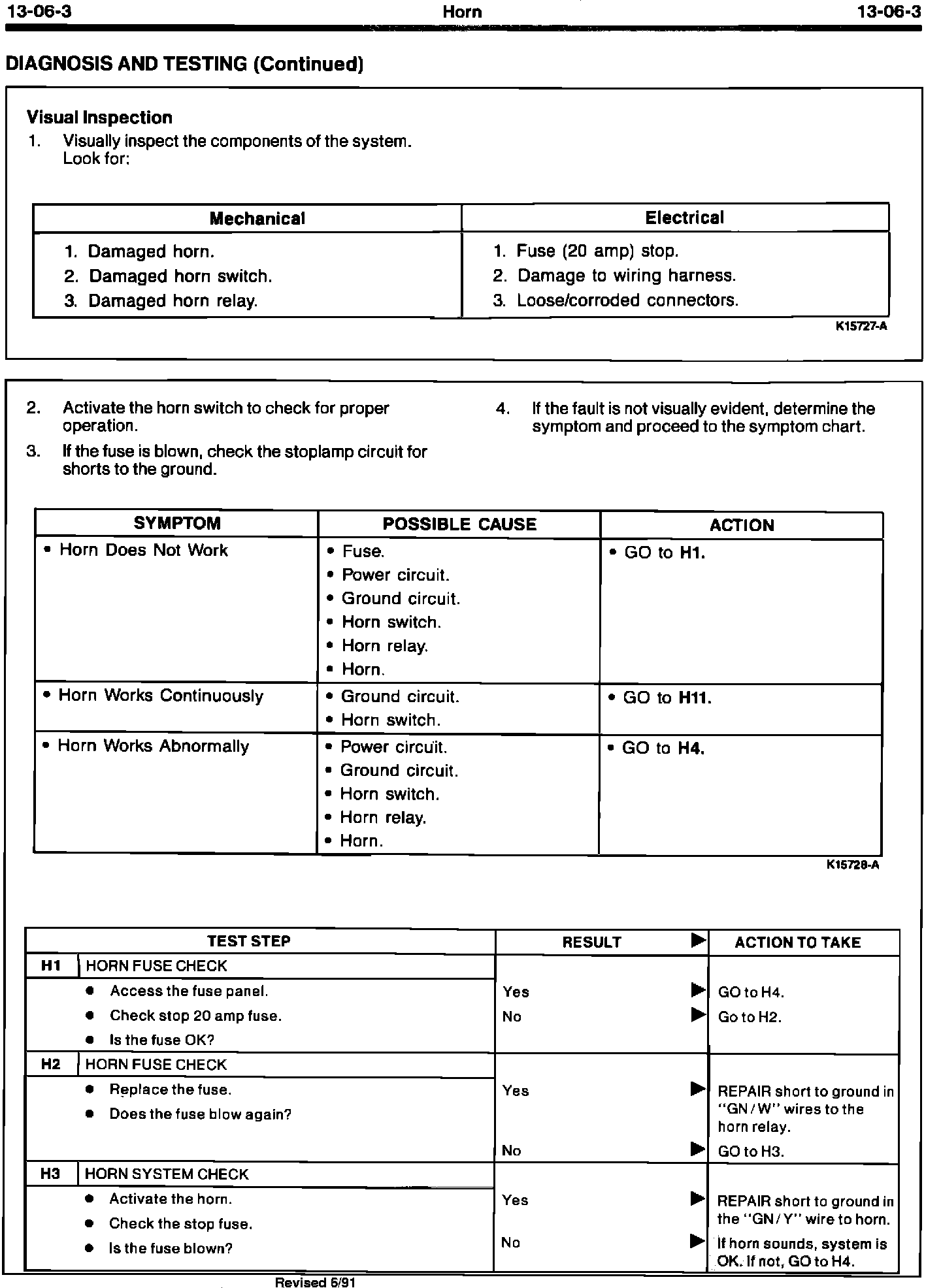

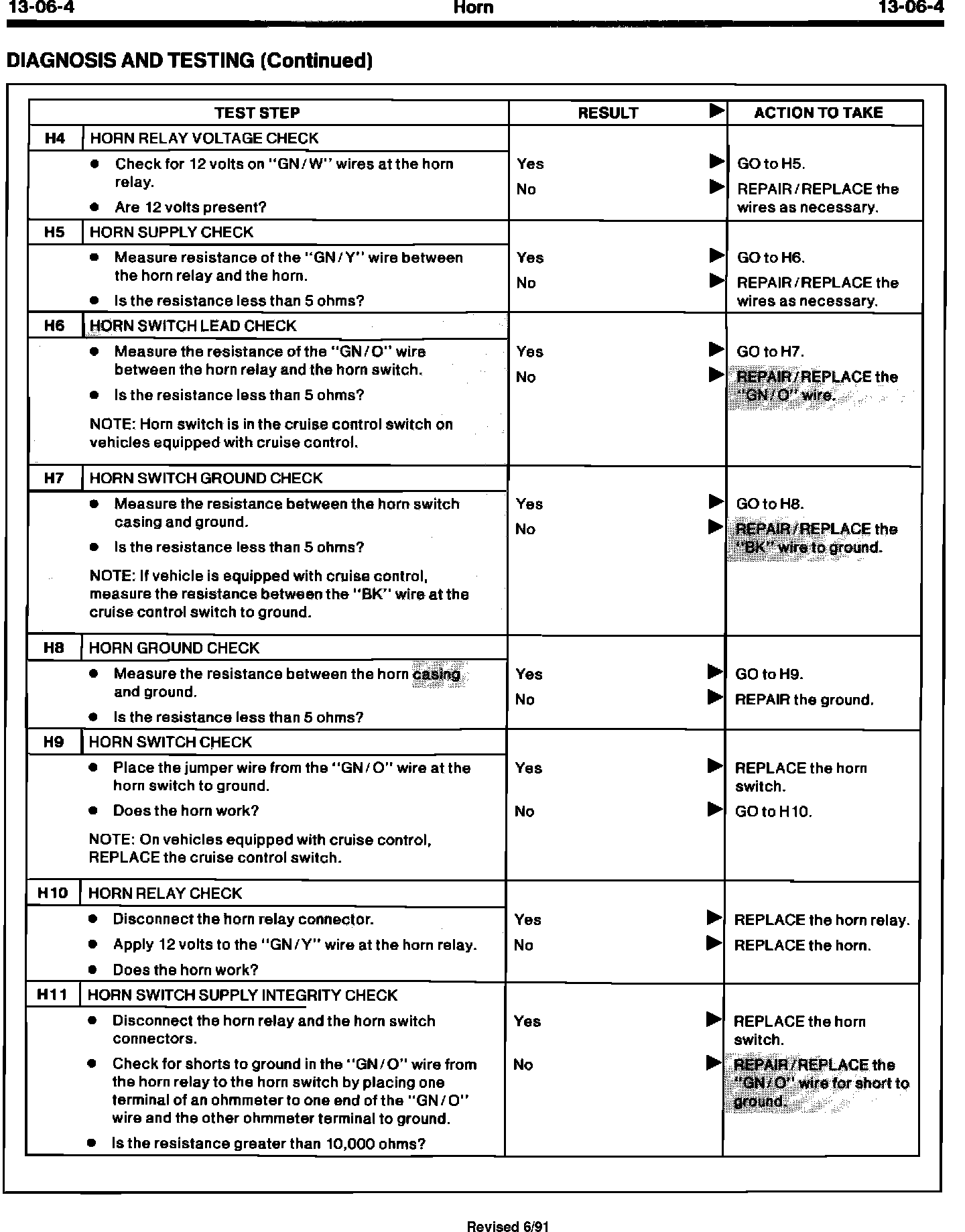

13-06-3, 4 Visual Inspection and Diagnosis
