Miscellaneous/Warning Devices - Manual Revision

Article No.
91-14B-38

SHOP MANUAL - 1991 - SECTION 13-09 - MISCELLANEOUS GAUGES/WARNING DEVICES - DIAGNOSTIC INFORMATION REVISED

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
Miscellaneous Gauges/Warning Devices Section 13-09 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 13-09-2 through 9 are affected.

The new revised pages are:
13-09-2 through 7

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

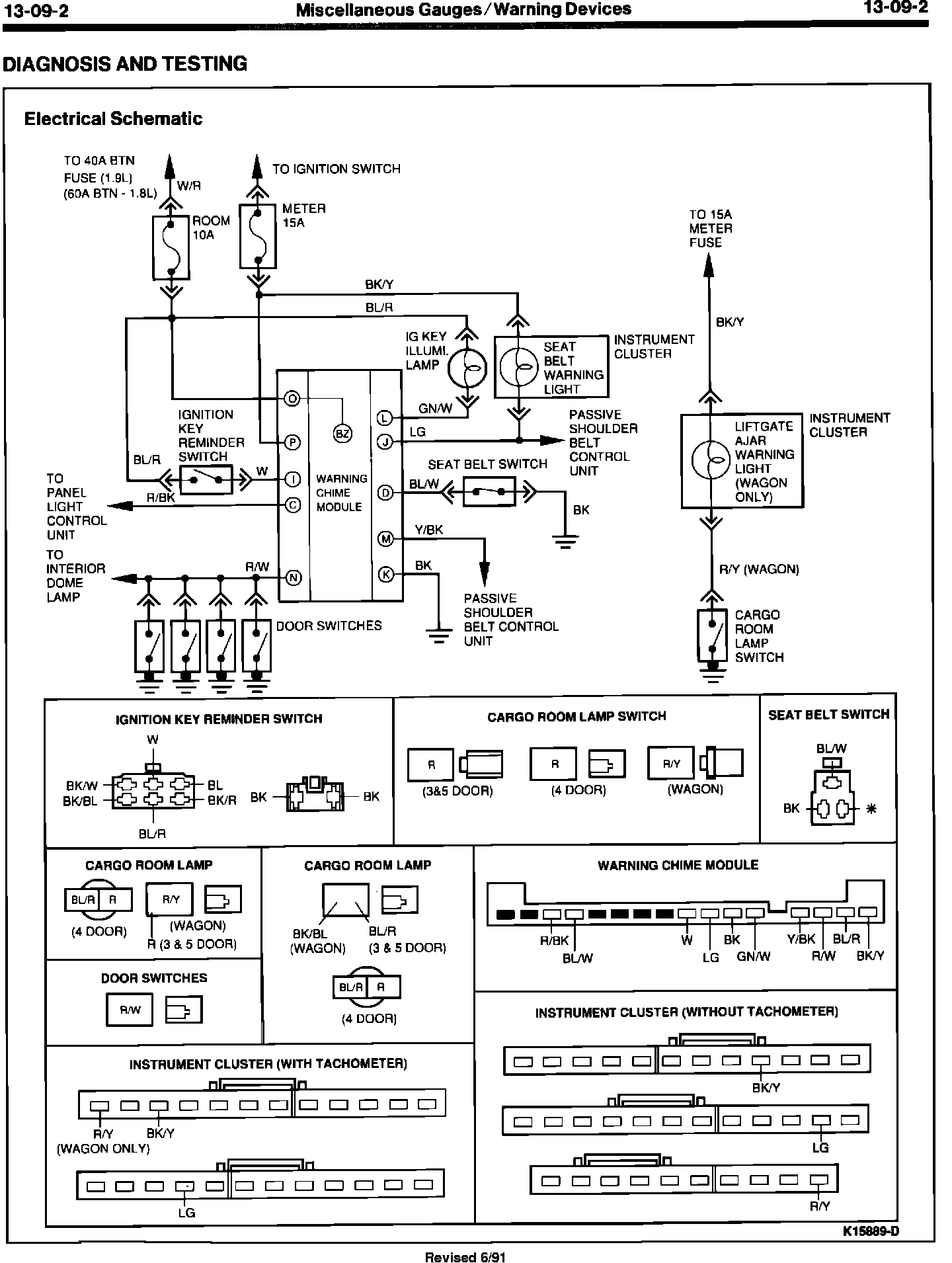

13-09-2 Electrical Schematic

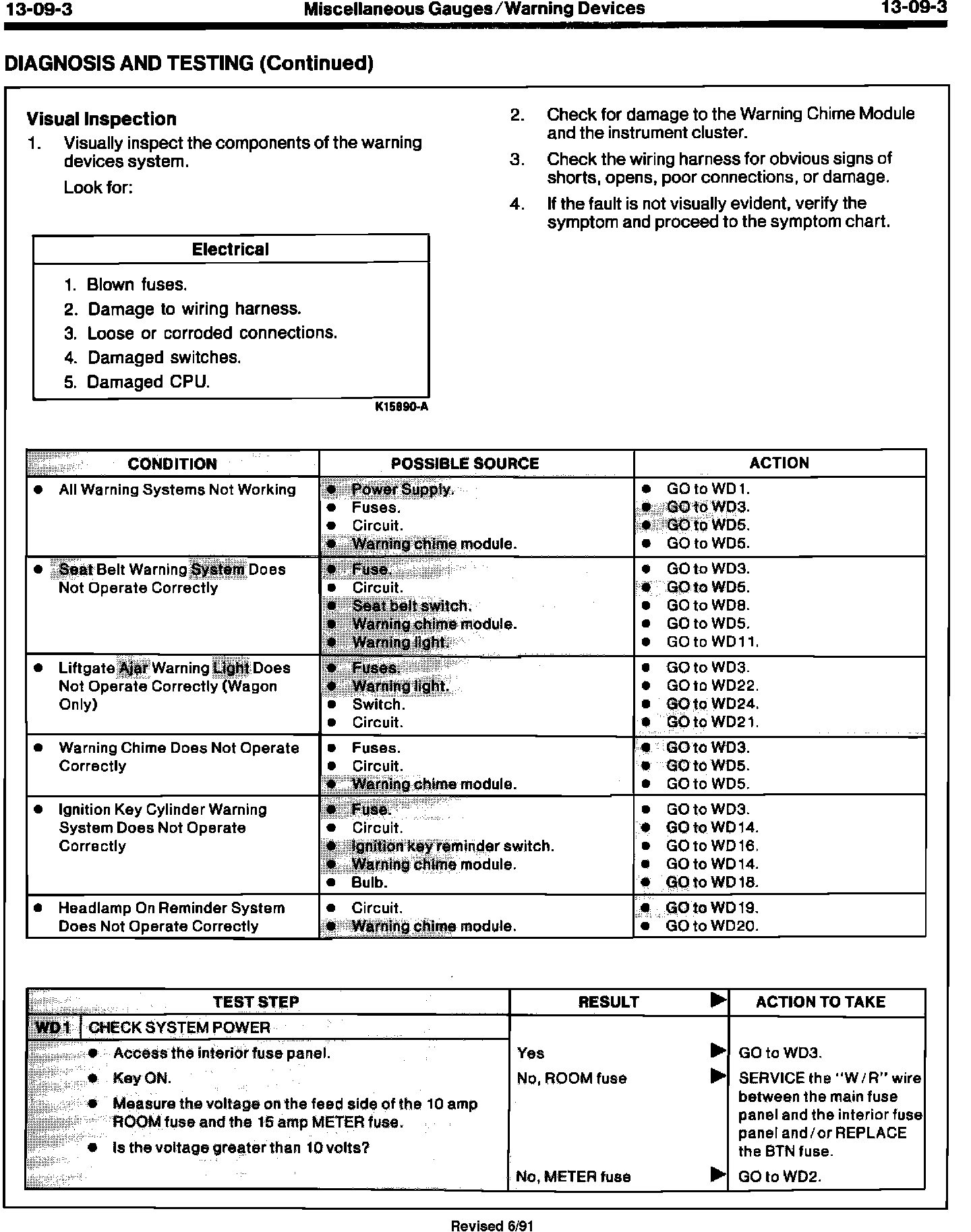

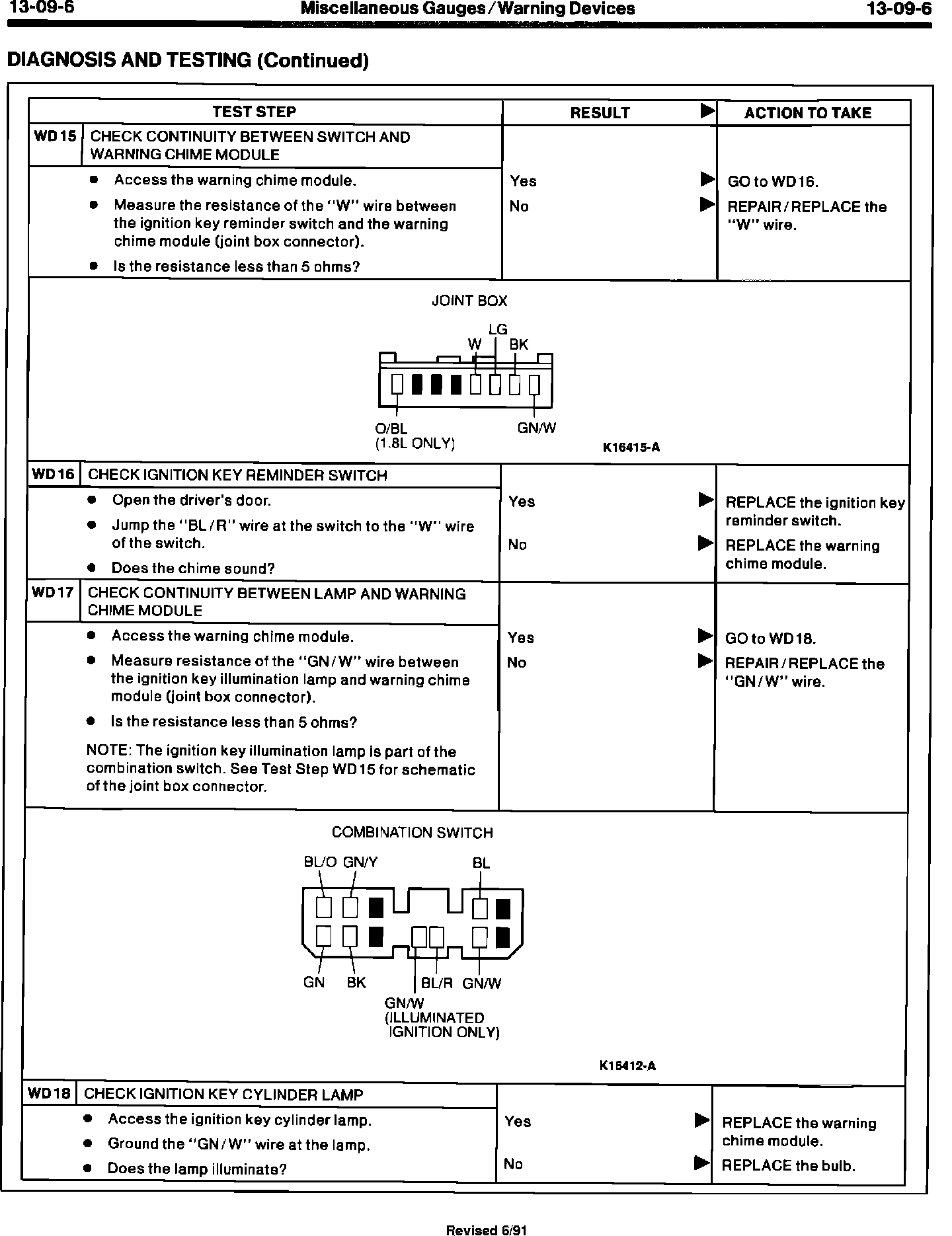

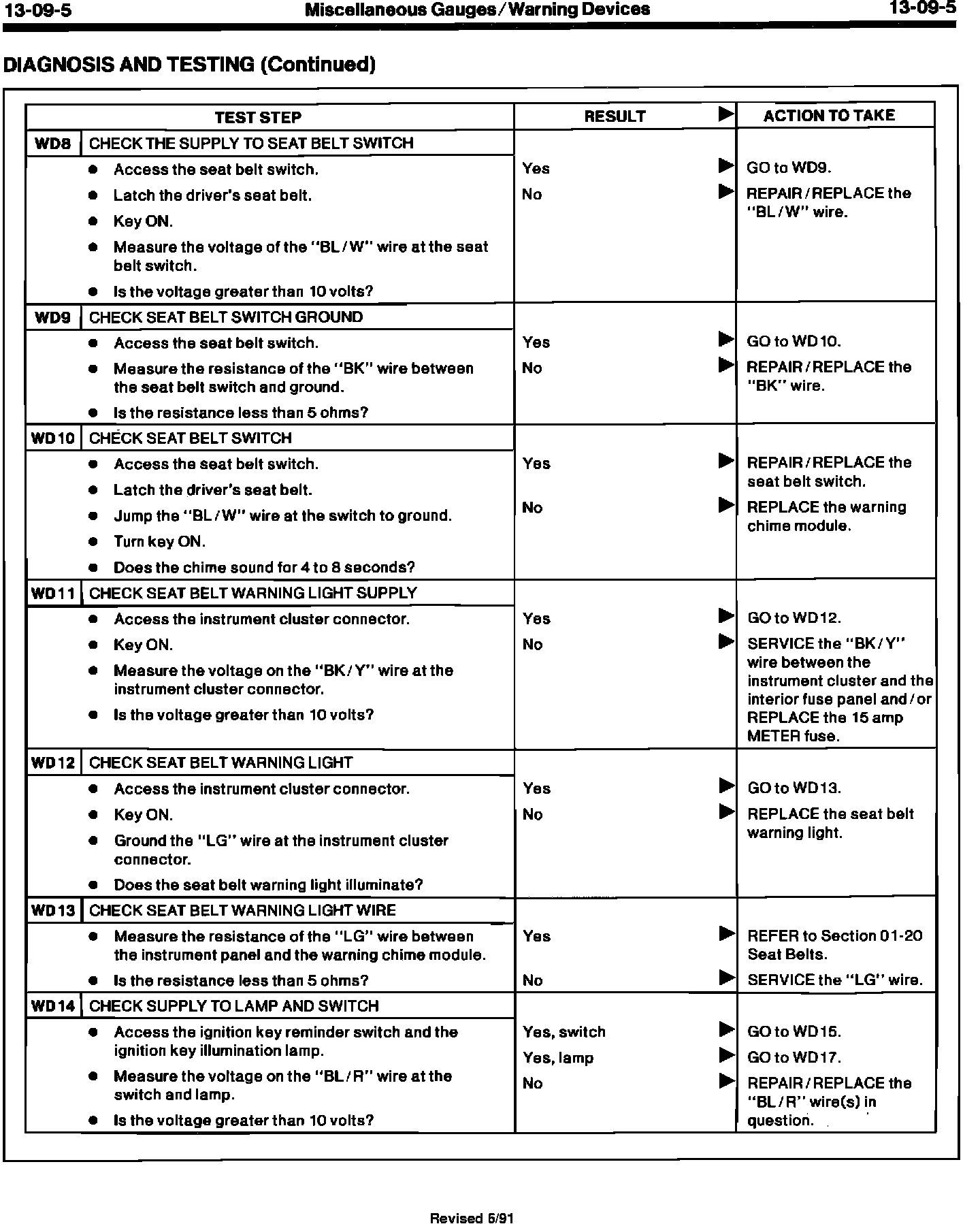

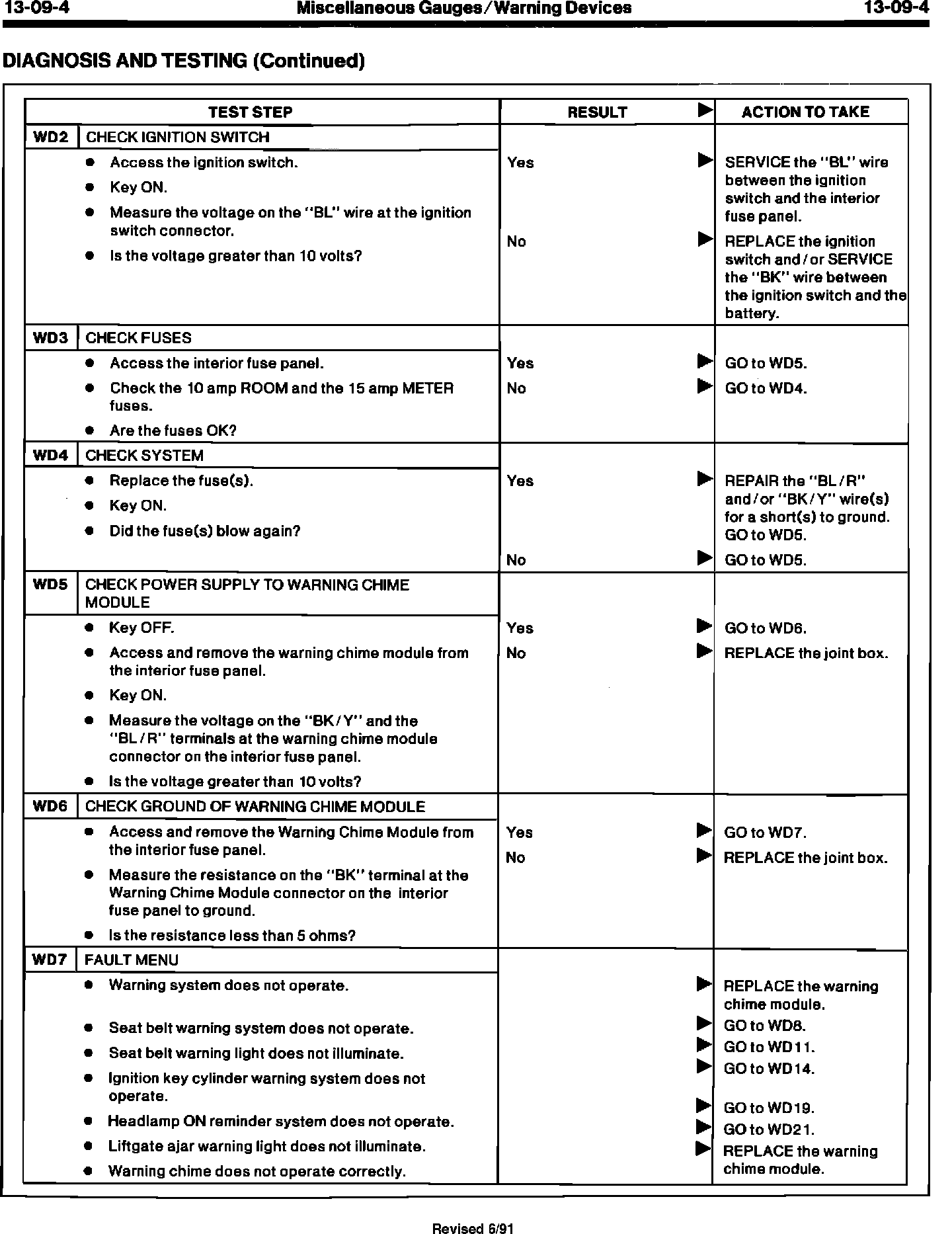

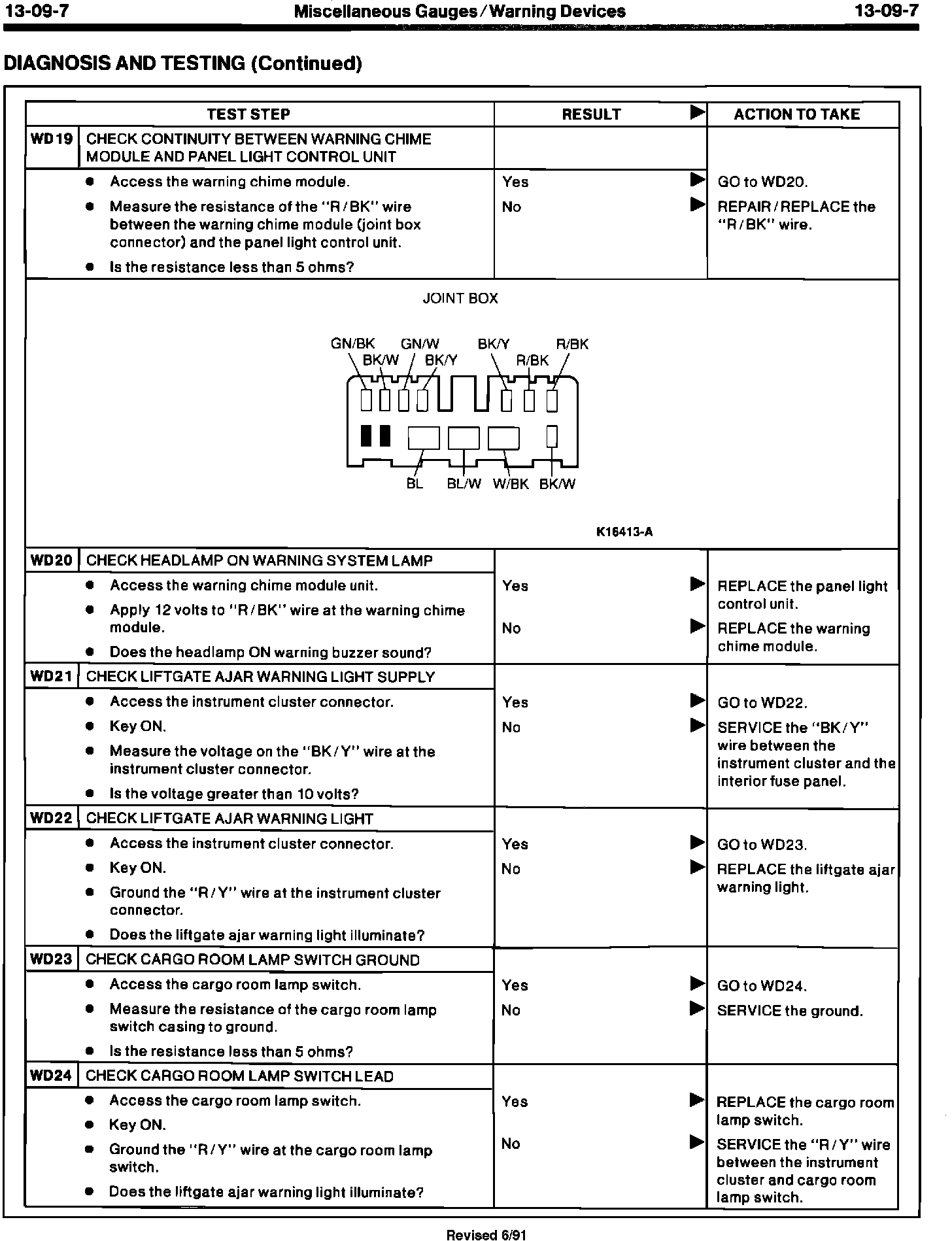

13-09-3 thru 7 Visual Inspection, Diagnosis and Test Step
