Instrument Panel Lighting - Manual Revision

Article No.
91-14B-33

SHOP MANUAL - 1991 - SECTION 13-01 - INSTRUMENT CLUSTER AND PANEL LIGHTING - DIAGNOSTIC INFORMATION REVISED

07/22/91

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
Instrument Cluster and Panel Lighting Section 13-01 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 13-01-3 through 8 are affected.

The new revised pages are:
13-01-3 through 5, page 6 is the continuation.

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

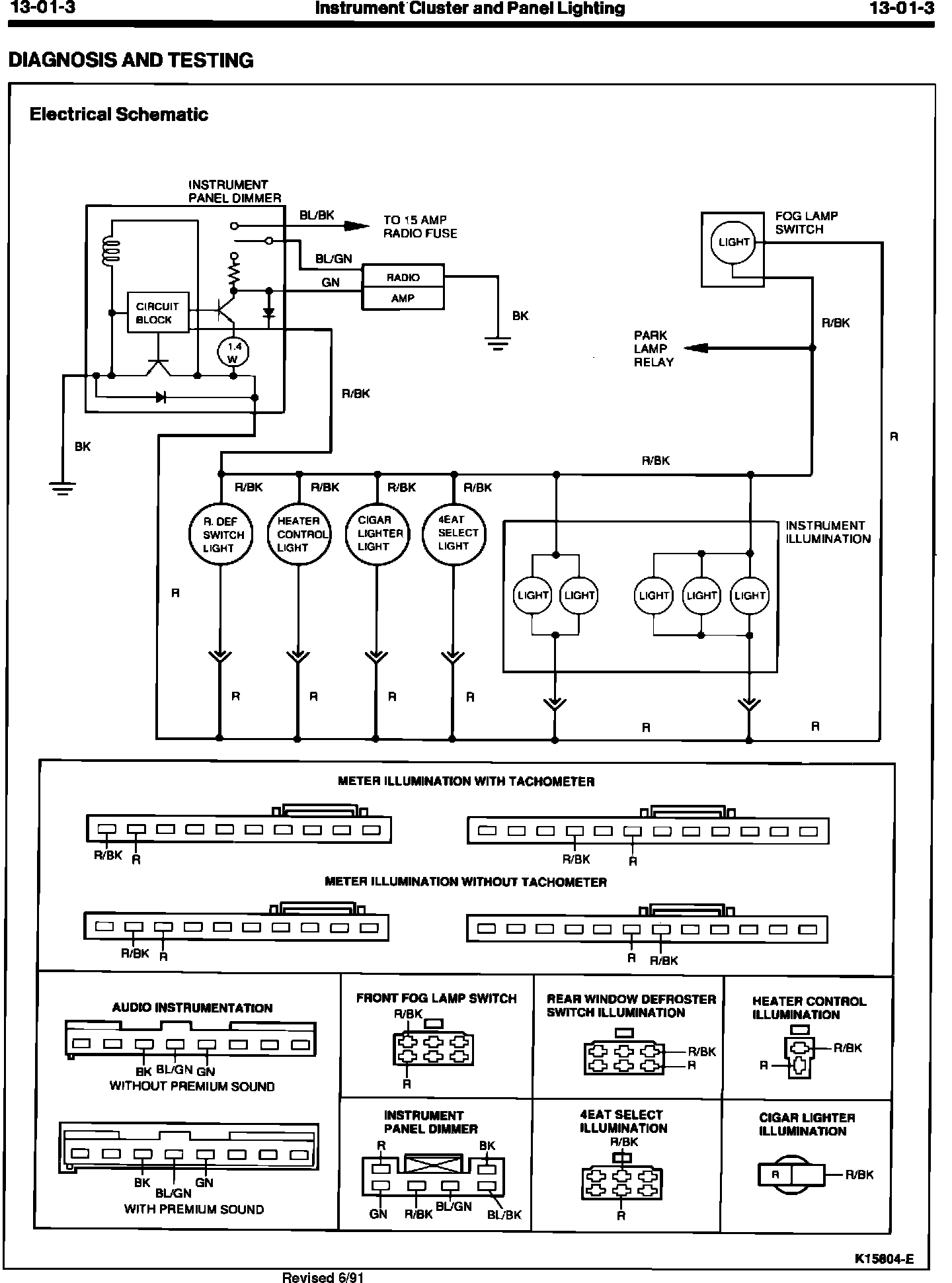

13-01-3 Electrical Schematic

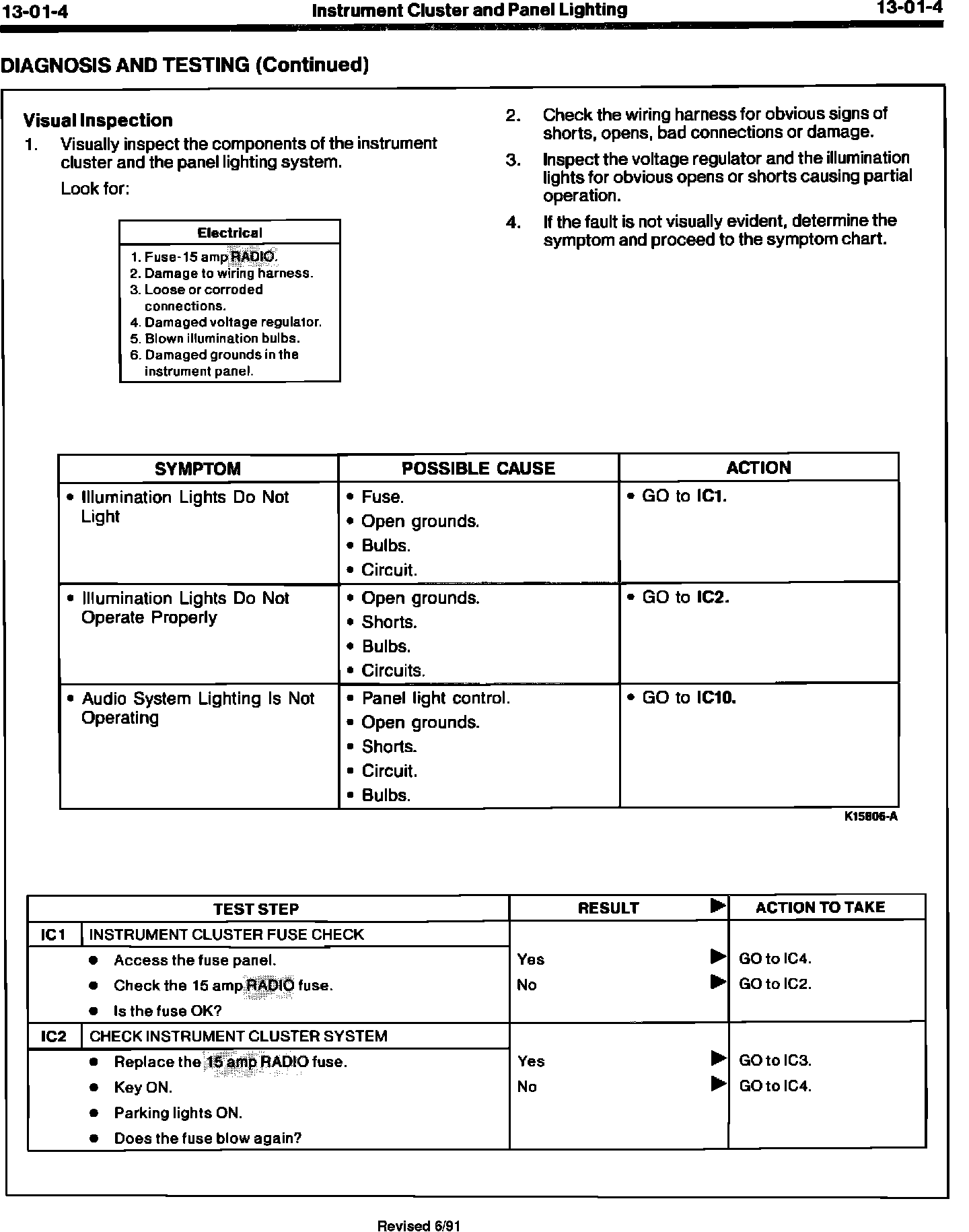

13-01-4 Visual Inspection and Test Step IC1 thru 10

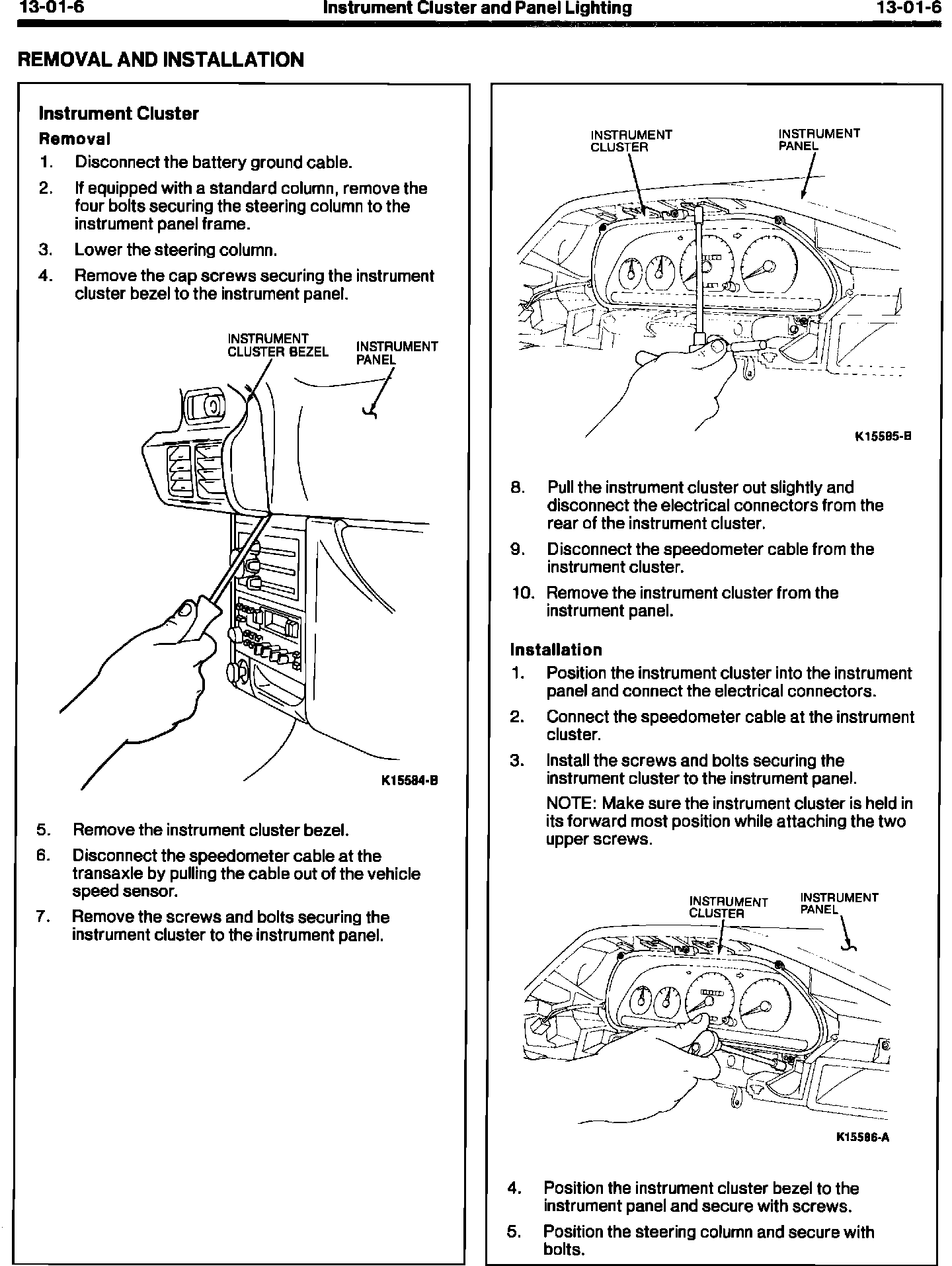

13-01-6 Instrument Cluster Removal
