Fuel Gauge/Low Fuel Warning Light - Revision

Article No.
91-14B-34

SHOP MANUAL - 1991 - SECTION 13-03 - FUEL GAUGE AND LOW FUEL WARNING LIGHT - DIAGNOSTIC INFORMATION REVISED

07/22/91

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
Fuel Gauge and Low Fuel Warning Light Section 13-03 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 13-03-3 through 7 are affected.

The revised pages are:
13-04-4 through 9

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

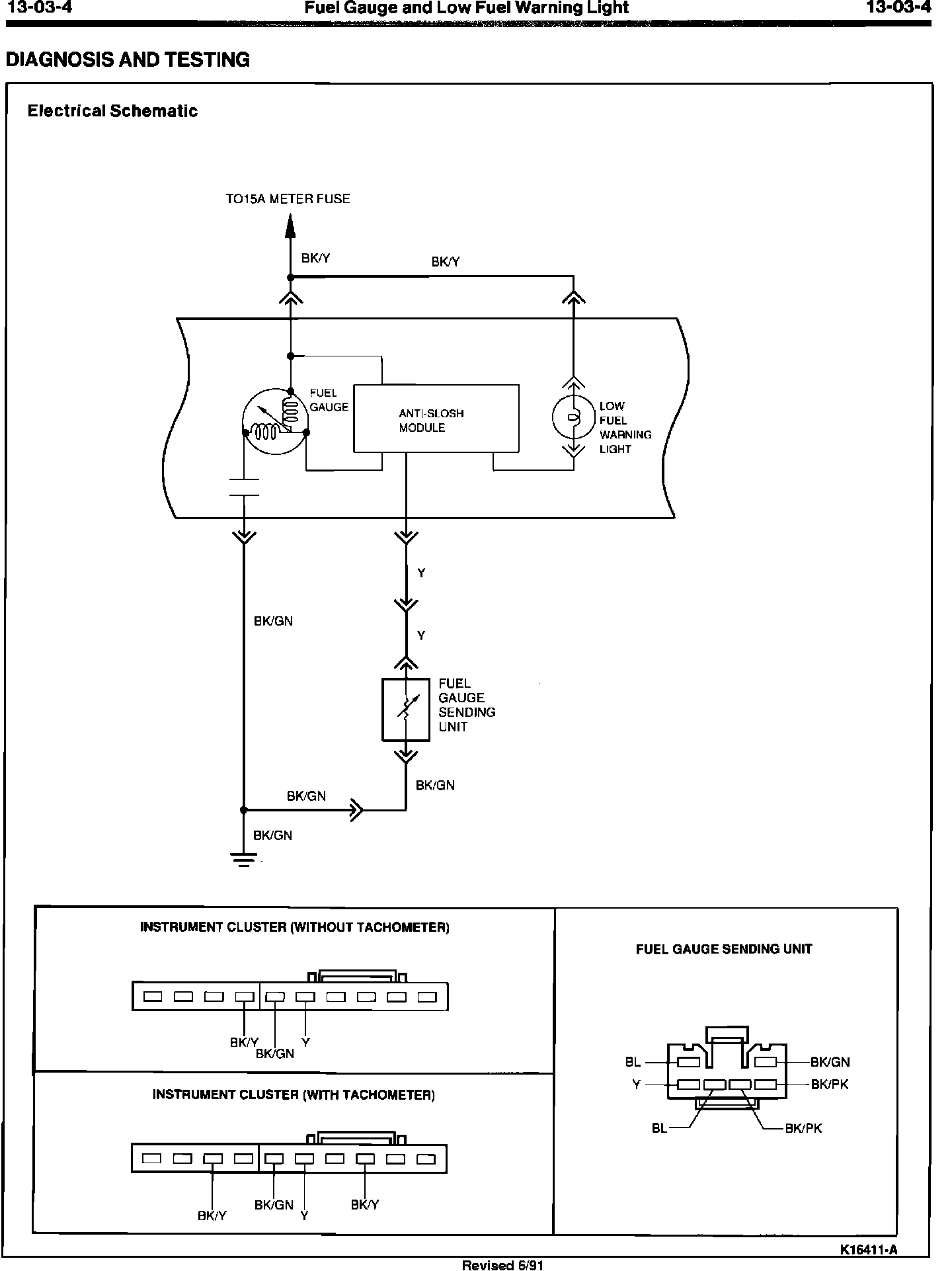

13-03-4 Electrical Schematic

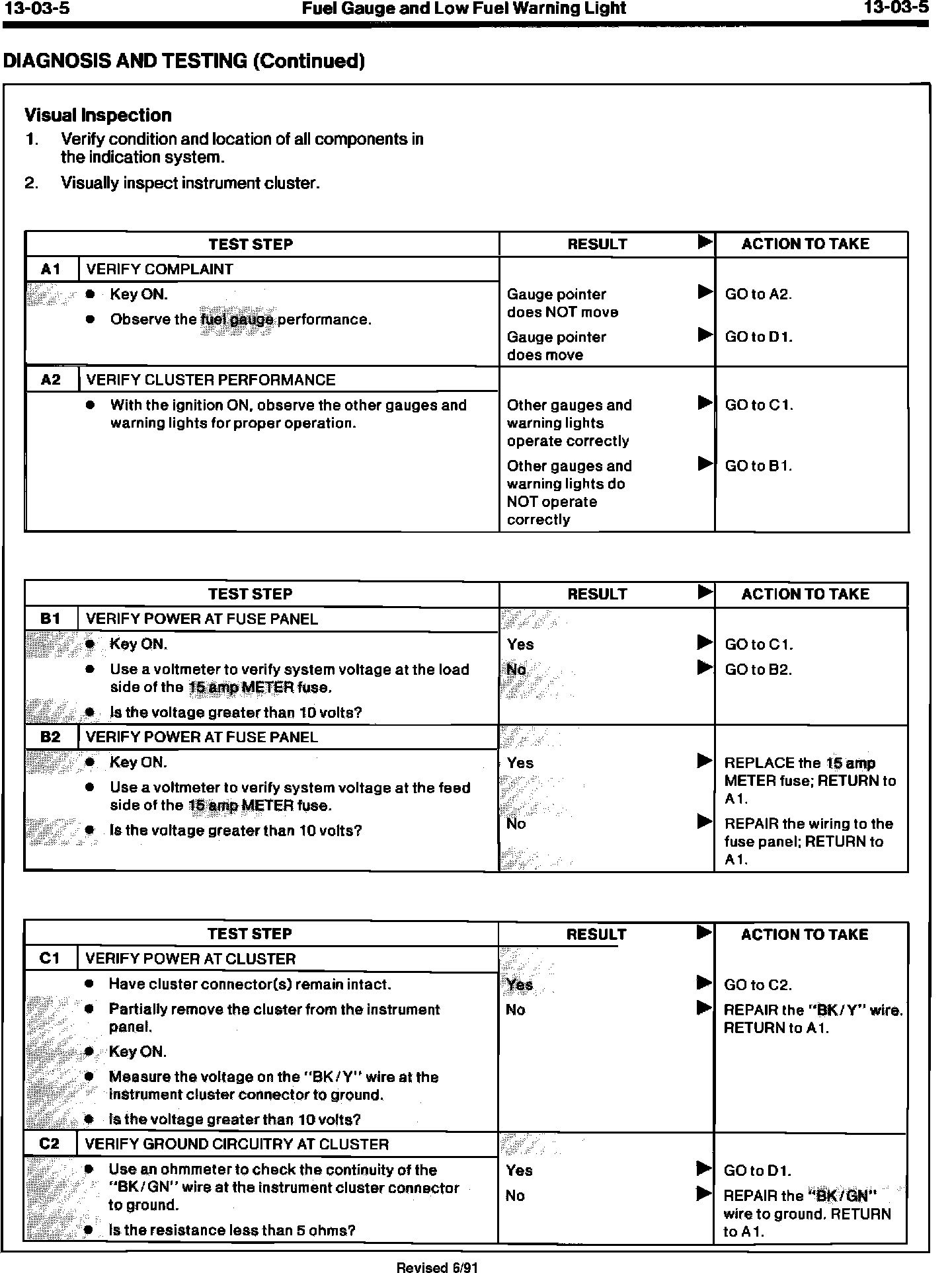

13-03-5 Visual Inspection and Test Step A, B, C

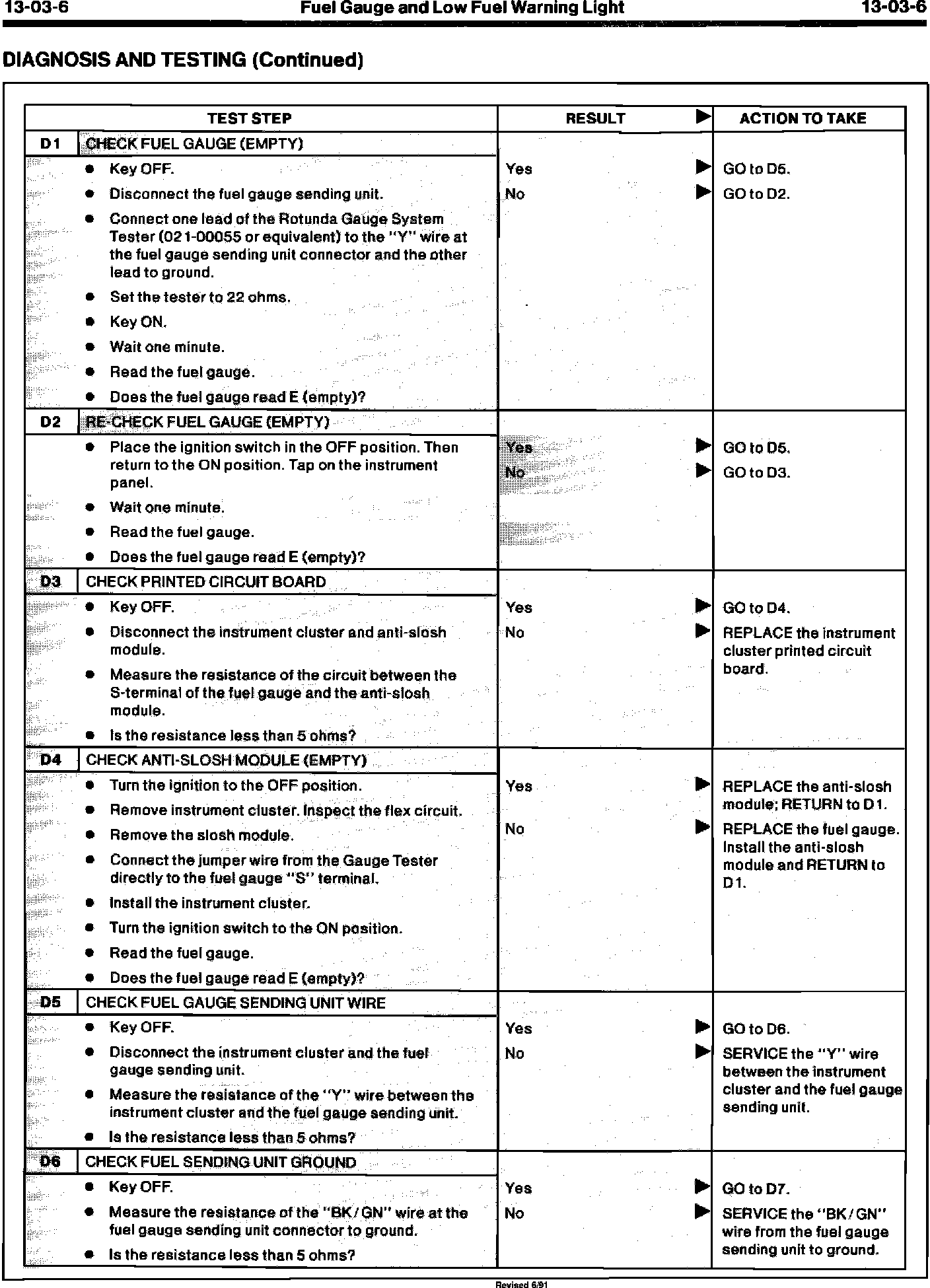

13-03-6 Test Step D1 thru D6

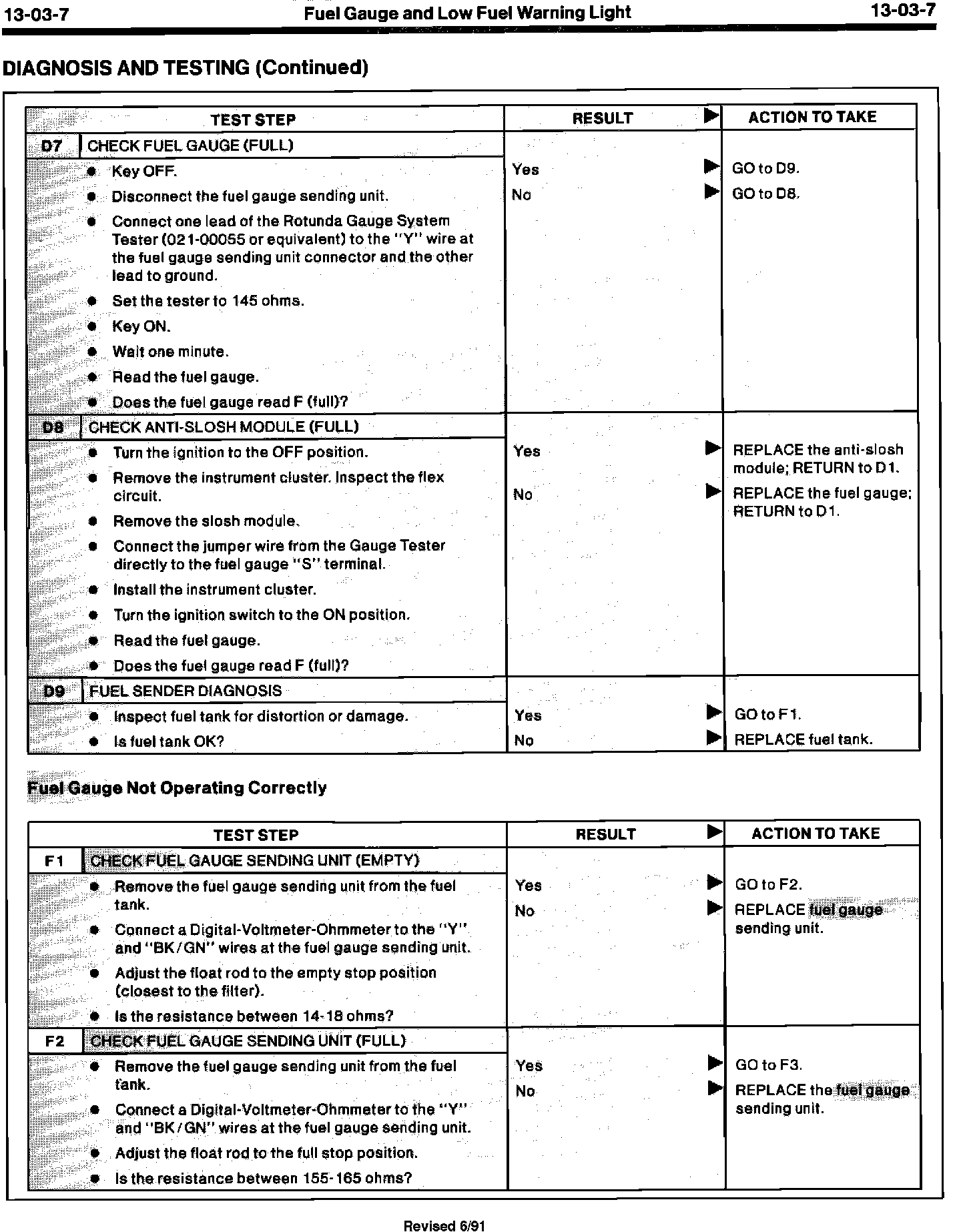

13-03-7 Test Step D7 thru D9, F1, F2

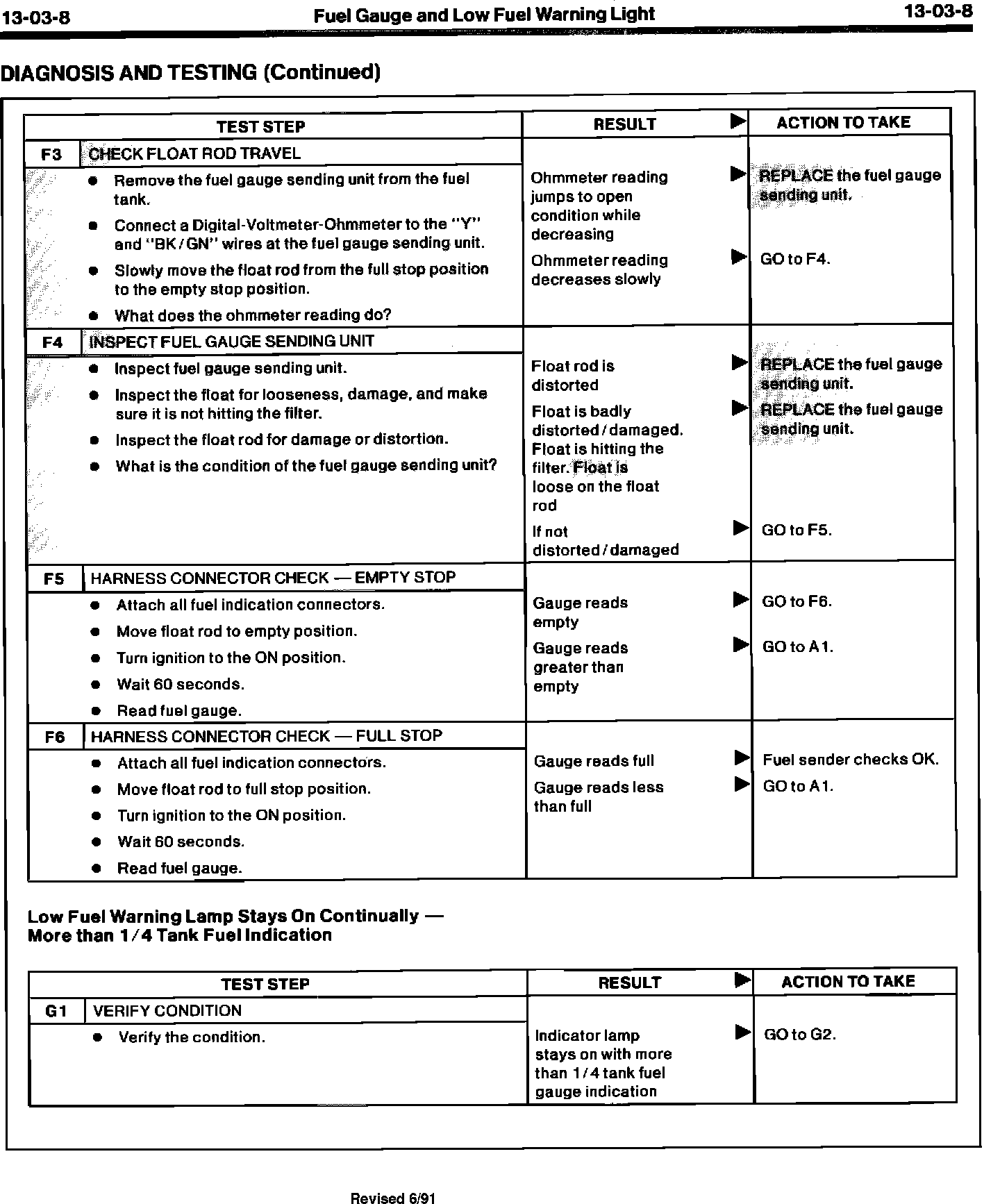

13-03-8 Test Step F3 thru F6, G1

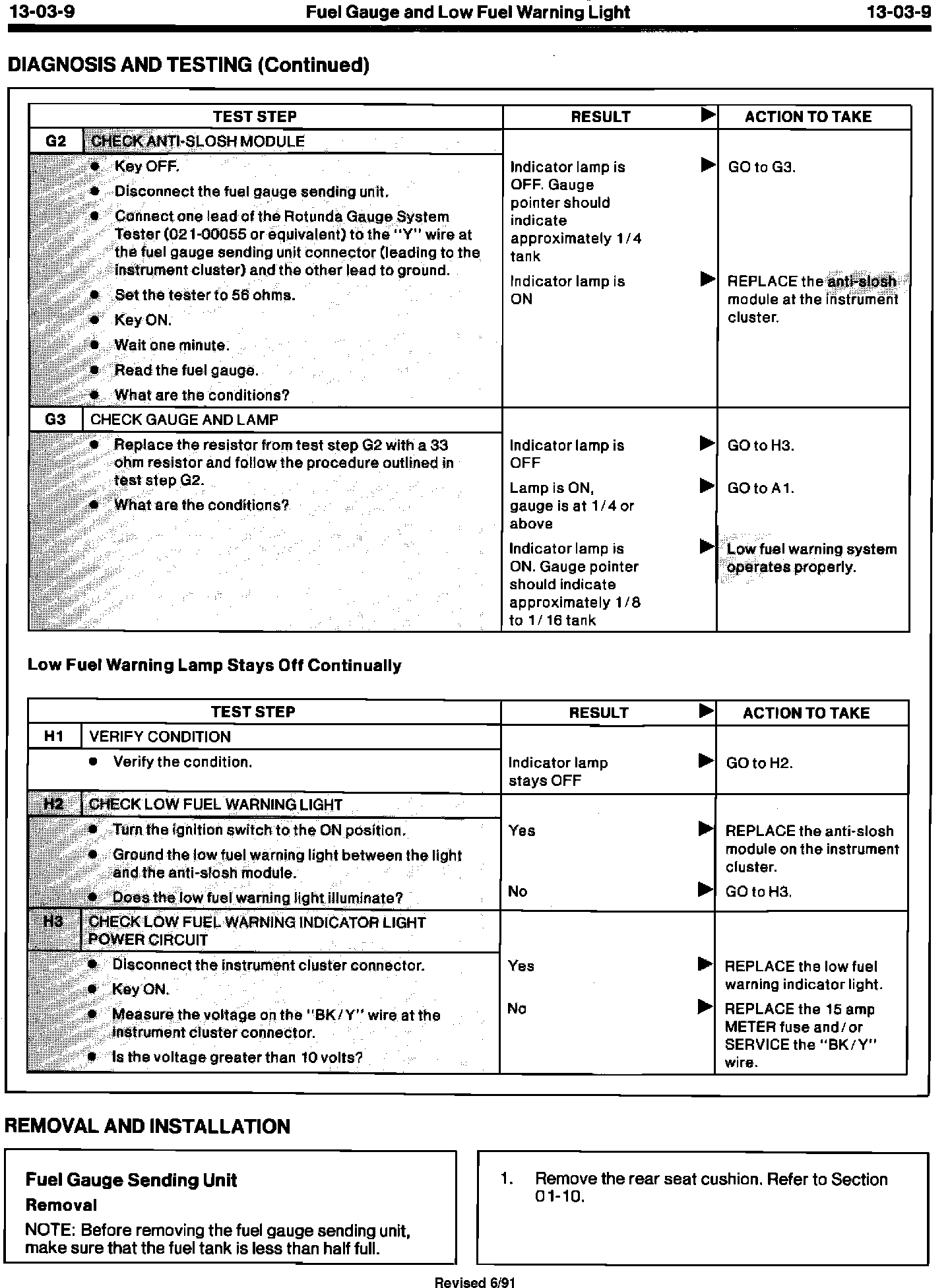

13-03-9 Test Step G2, G3; H1 thru H3
