Cigar Lighter Diagnosis and Schematic - Revision

Article No.
91-14B-20

07/22/91

SHOP MANUAL - 1991 - SECTION 01-12 - INSTRUMENT PANEL AND CONSOLE - DIAGNOSTIC INFORMATION REVISED

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER








ISSUE:

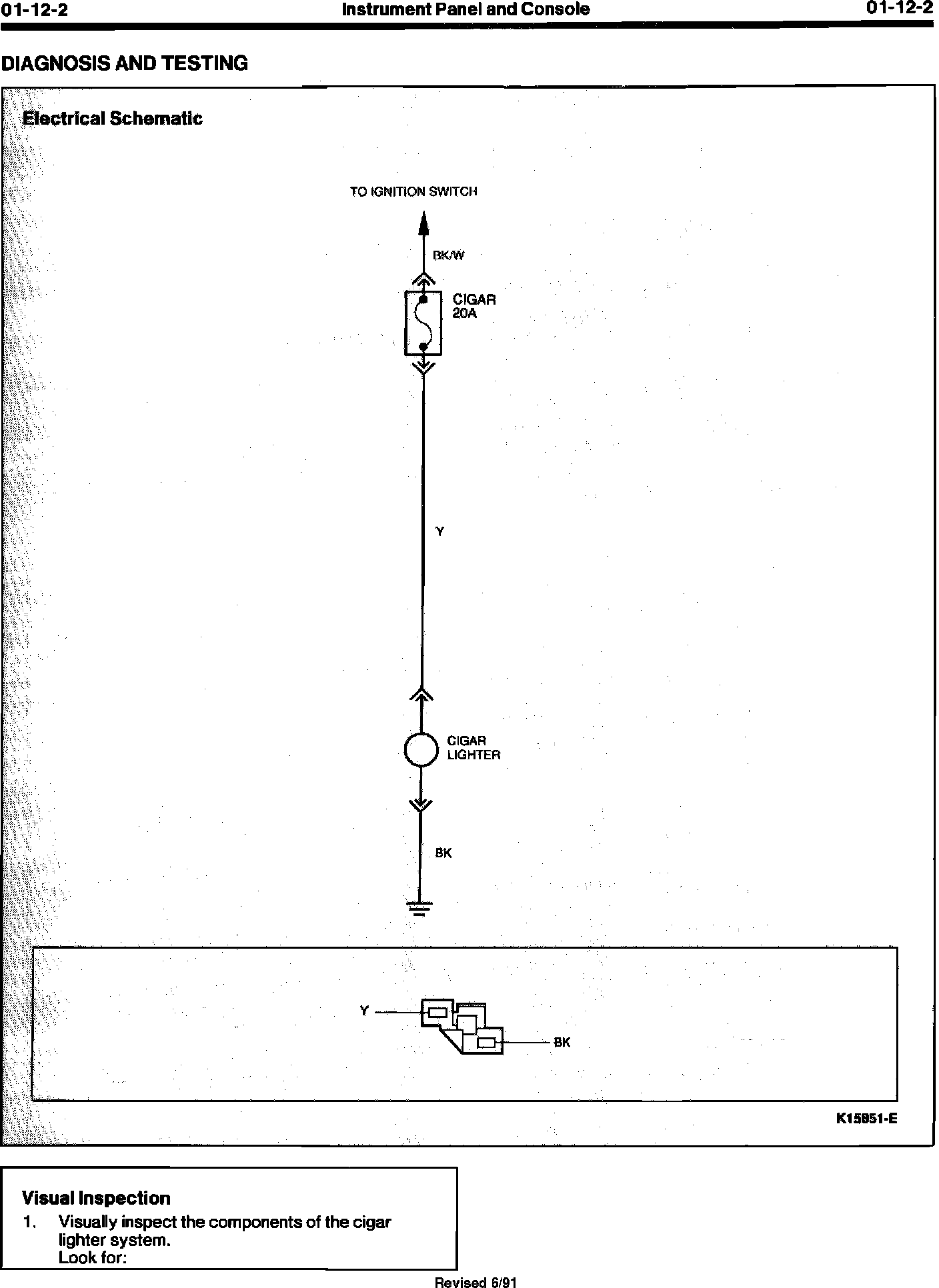

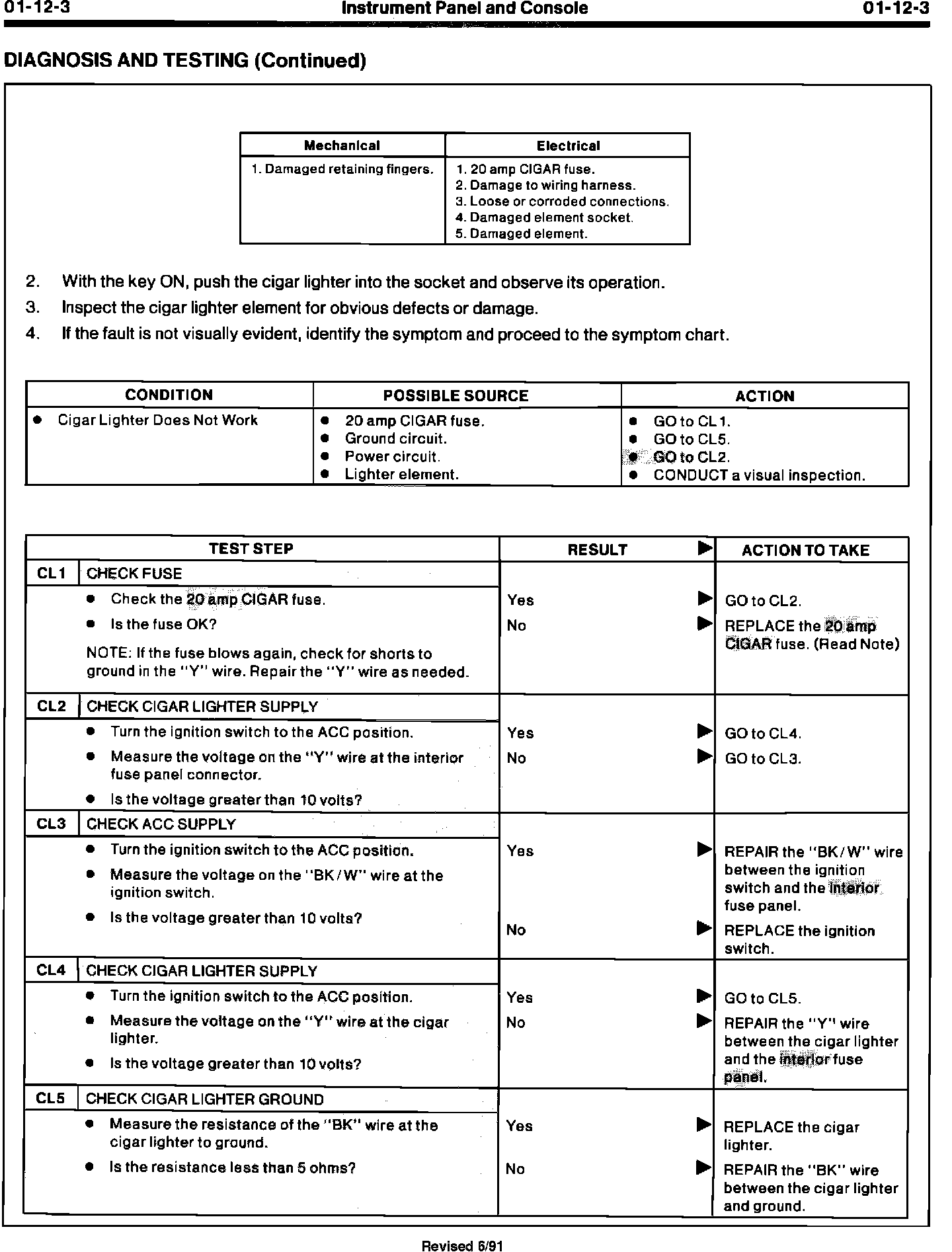

Instrument Panel and Console Section 01-12 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 01-12-2 thru 5 in original service manual have been replaced by pages 01-12-2 and 3 of this service bulletin.

ACTION:
Refer to the pages following this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
