Charging System Warning Light - Manual Revision

Article No.
91-14B-35

SHOP MANUAL - 1991 - SECTION 13-04 - CHARGING SYSTEM GAUGE/WARNING LIGHT - DIAGNOSTIC INFORMATION REVISED

07/22/91

FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER

ISSUE:
Charging System Gauge/Warning Light Section 13-04 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 13-04-2 through 4 are affected.

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

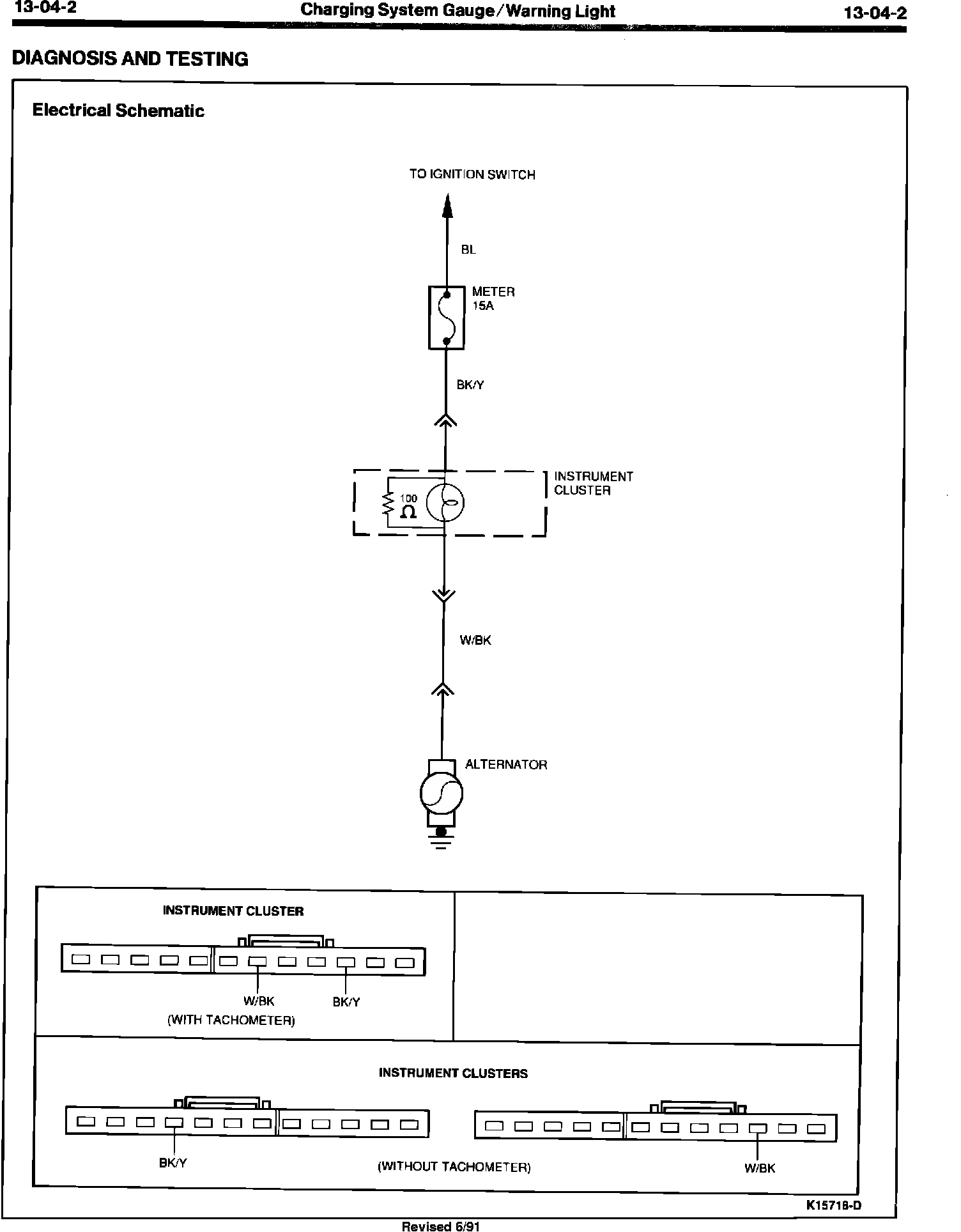

13-04-2 Electrical Schematic

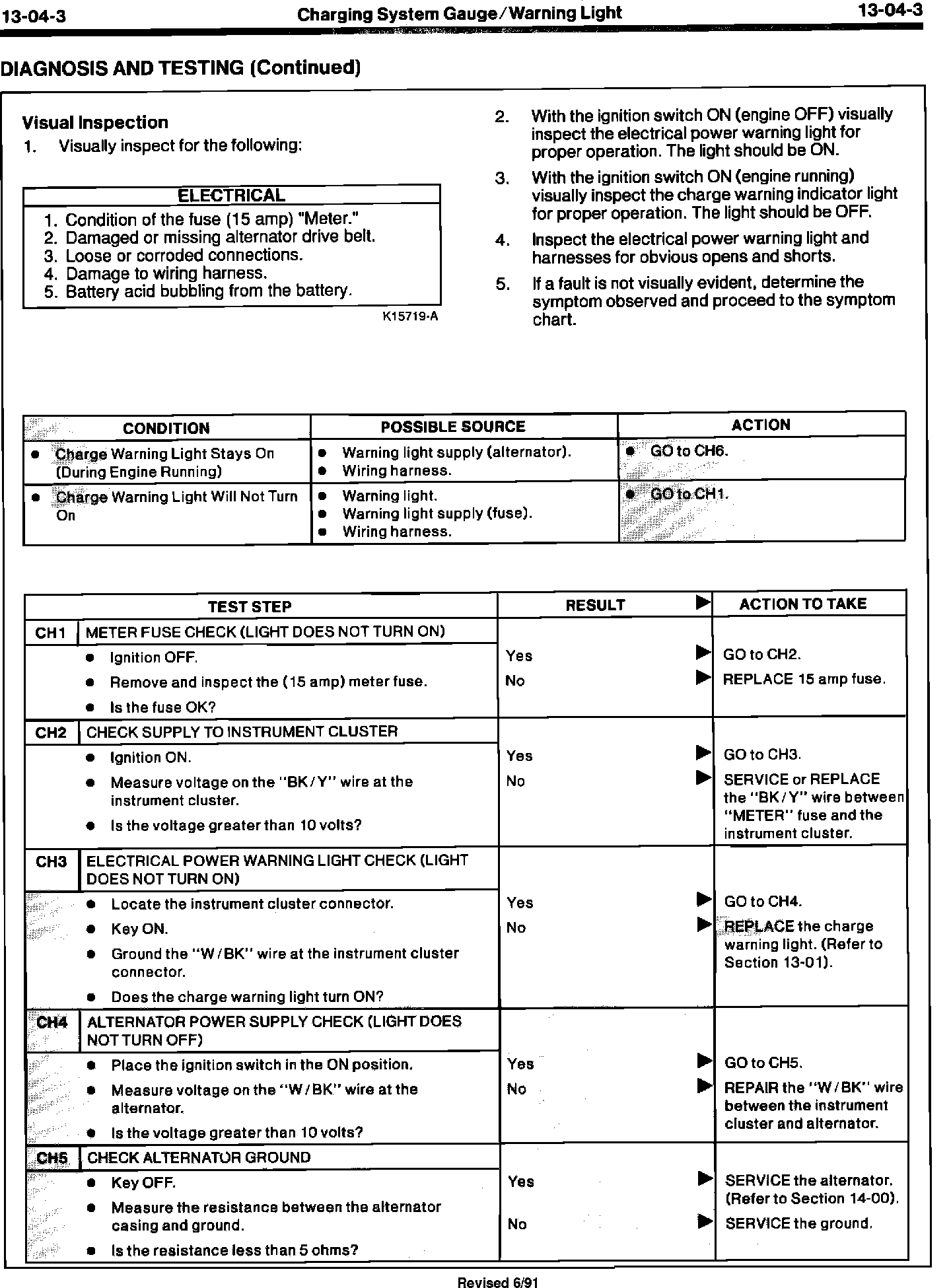

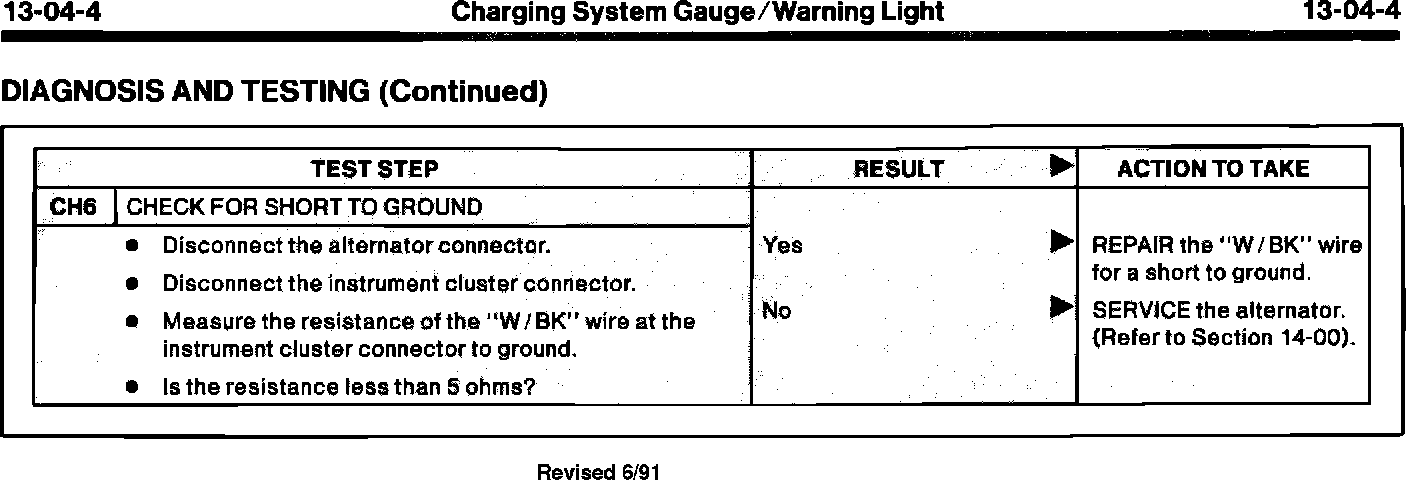

13-04-3,4 Visual Inspection and Test Step Ch1 thru Ch6
