Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Chart-Refrigerant Circuit
>>
IC7: Refrigerant Charge-Check For Moisture In System
IC7: Refrigerant Charge-Check For Moisture In System

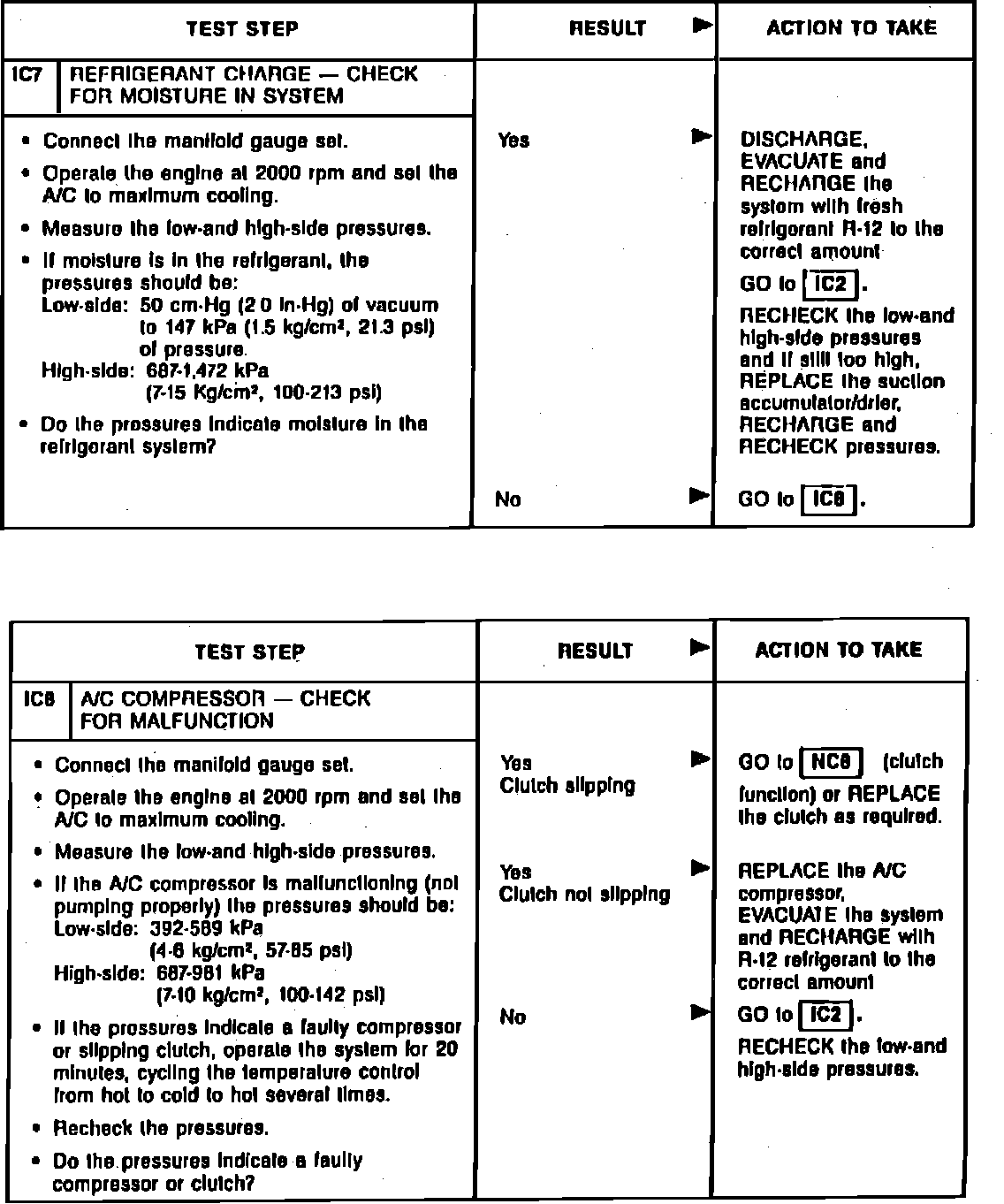

Fig. 11 Insufficient A/C cooling diagnosis (Test IC7 & IC8):
