Heating/Defrosting Diagnostics - Manual Revision

Article No.
91-14B-31

Date
July 22, 1991



SHOP MANUAL - 1991 - SECTION 12-02 - HEATING AND DEFROSTING - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Heating and Defrosting Section 12-02 of the 1991 Escort/Tracer Shop Manual has been revised. The following pages are affected:

Pages in Manual:
12-02-9 through 13
19-02-19 through 24

The new revised pages:
12-02-9 through 11
12-02-17 through 20

ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

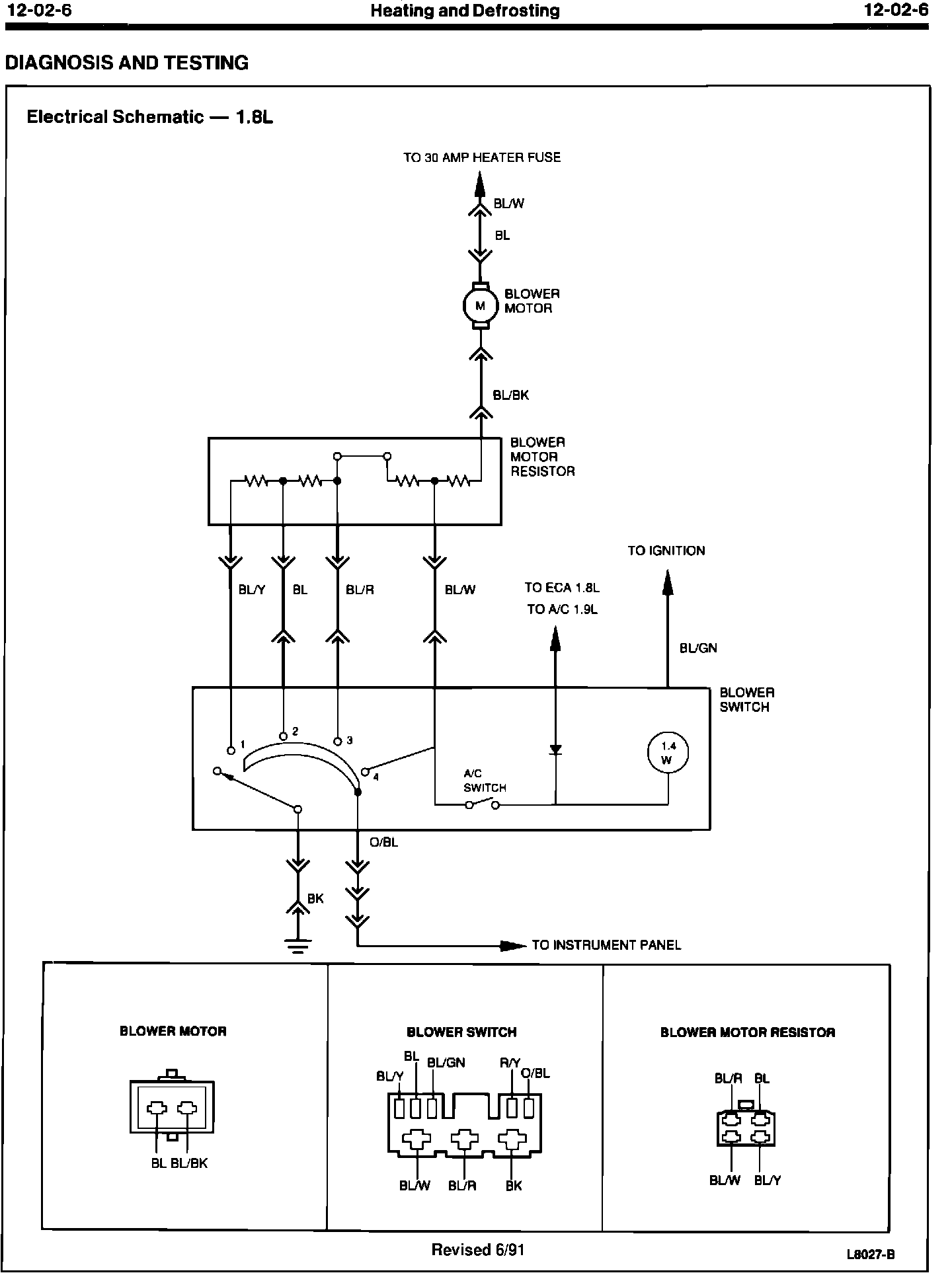

12-02-6 BLOWER ELECTRICAL SCHEMATIC 1.8L

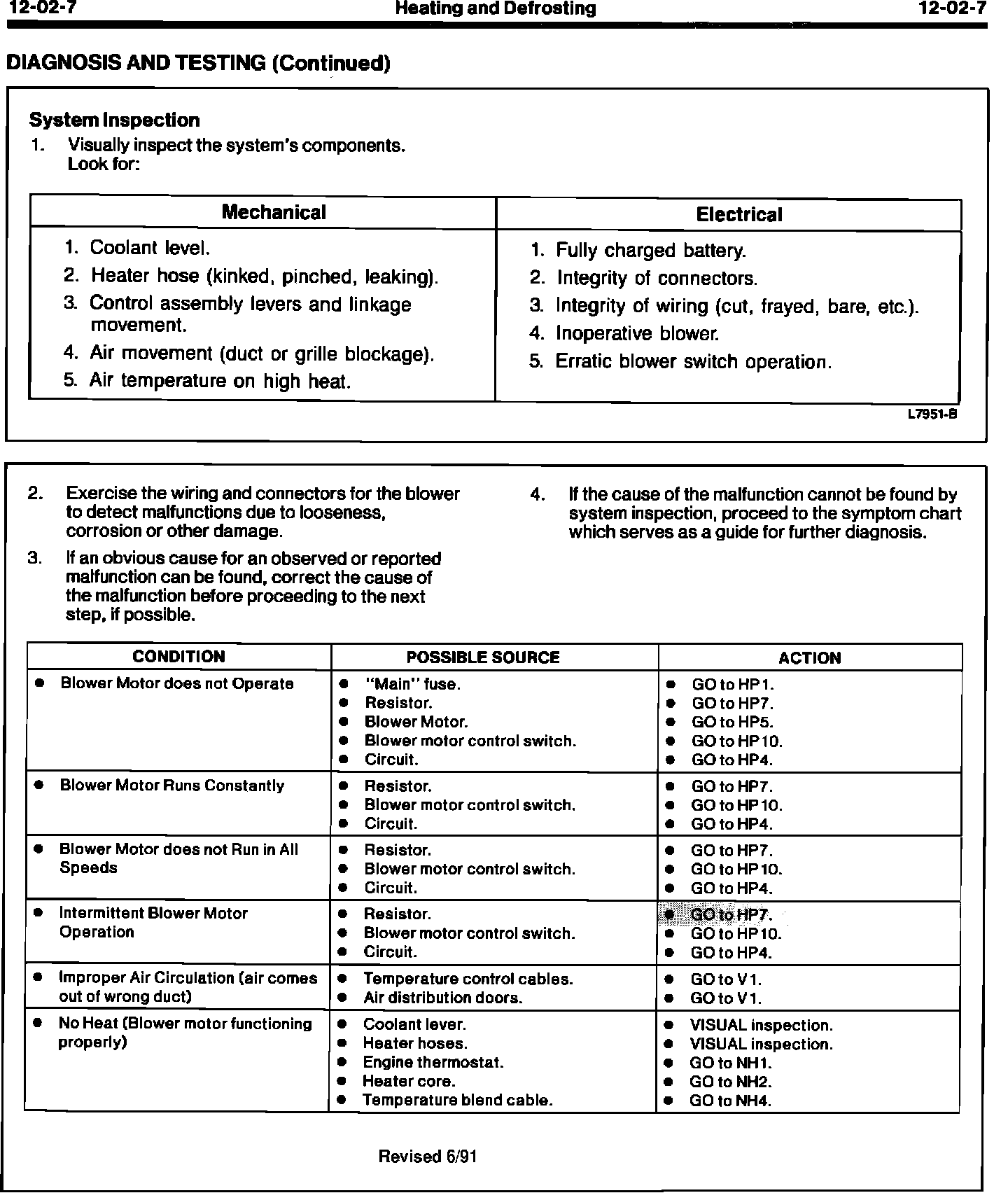

12-02-7 BLOWER MOTOR SYSTEM INSPECTION

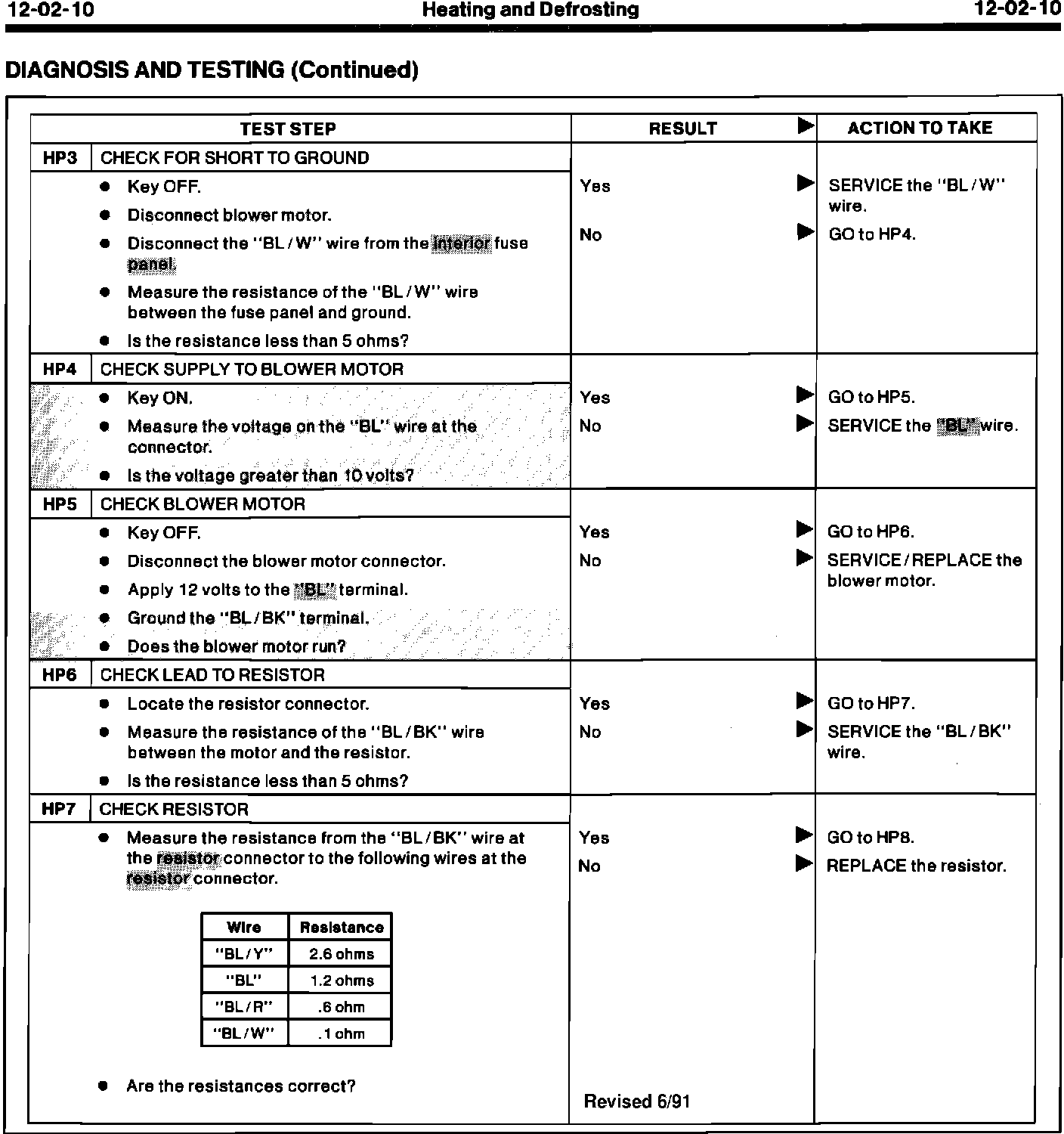

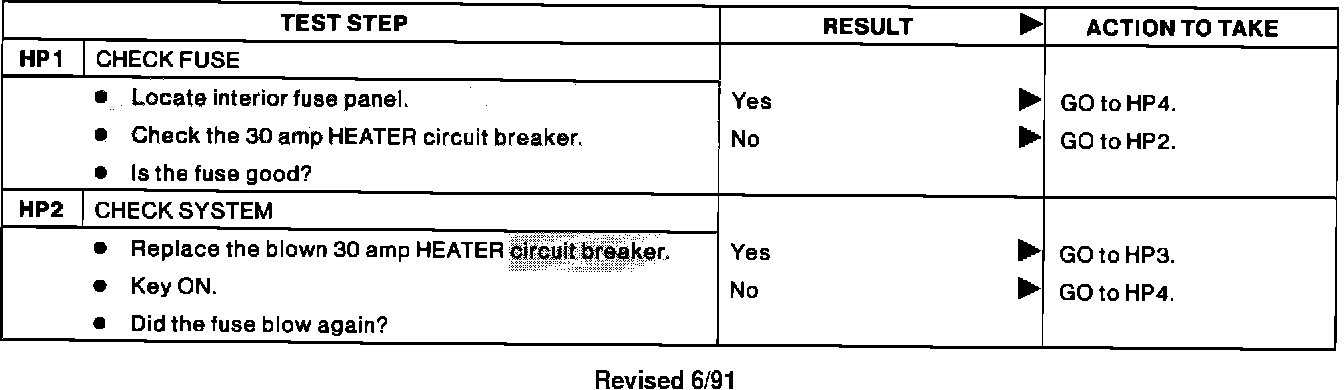

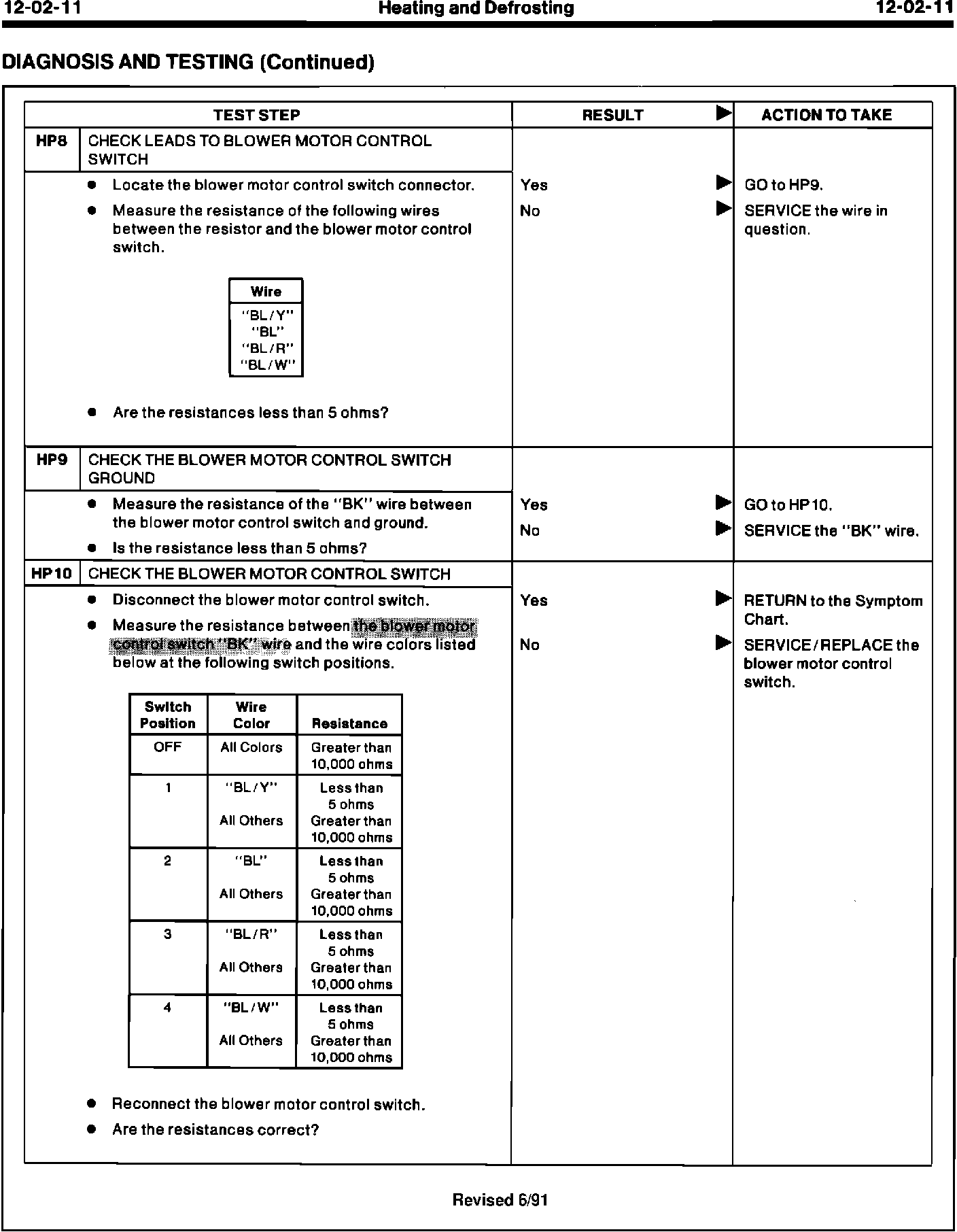

12-02-9 HEATING: TEST STEP

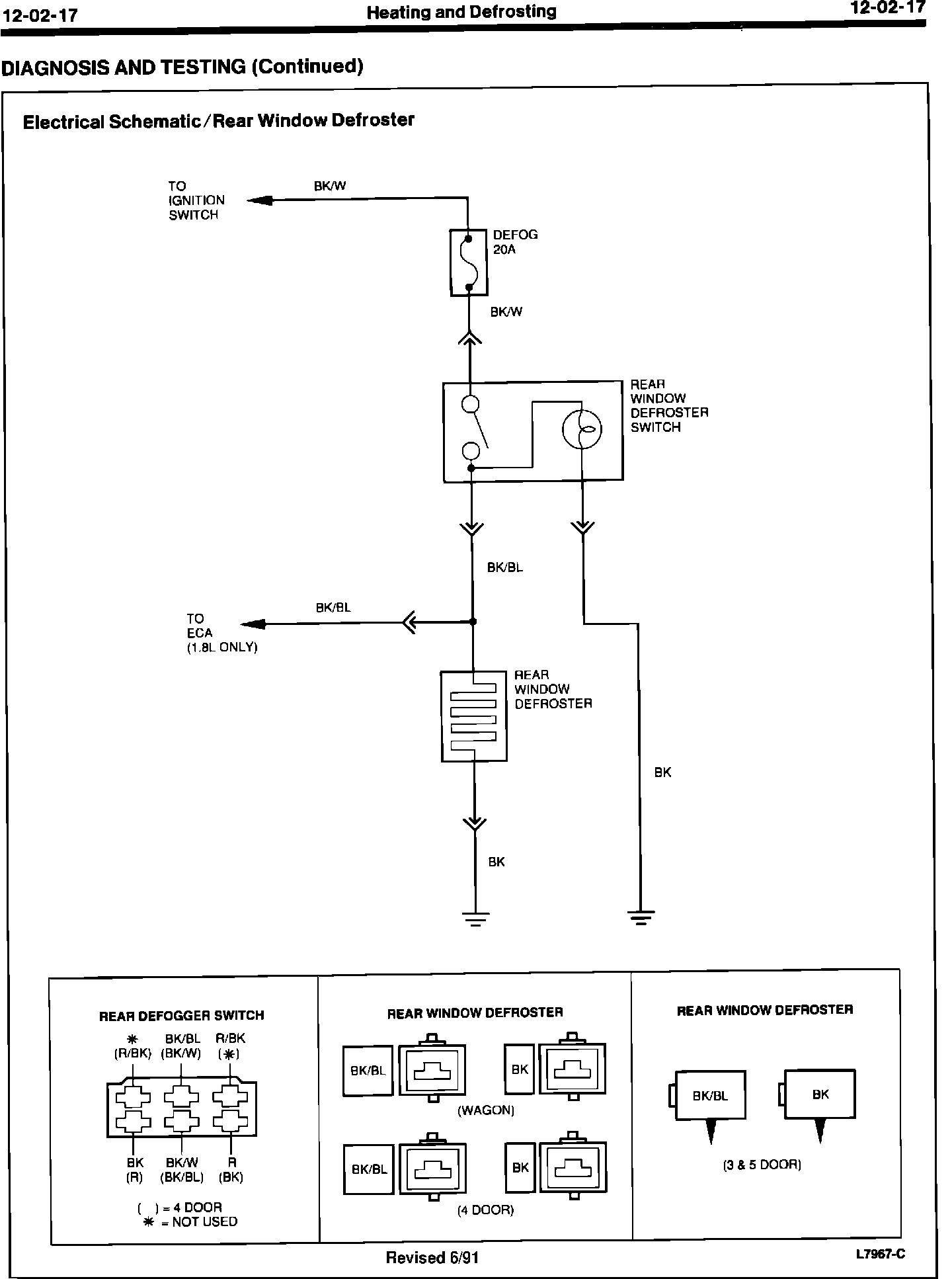

12-02-17 ELECTRICAL SCHEMATIC/REAR WINDOW DEFROSTER

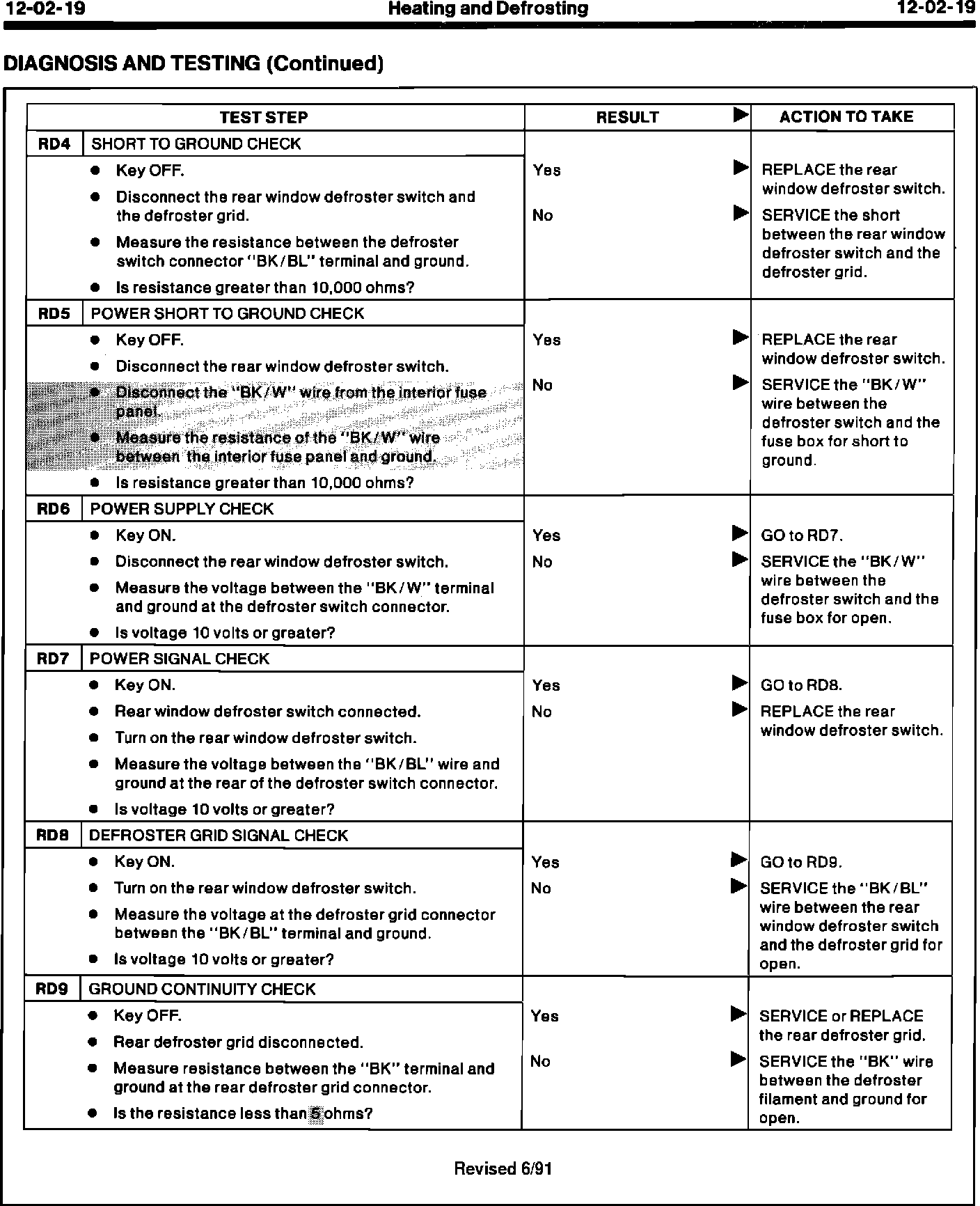

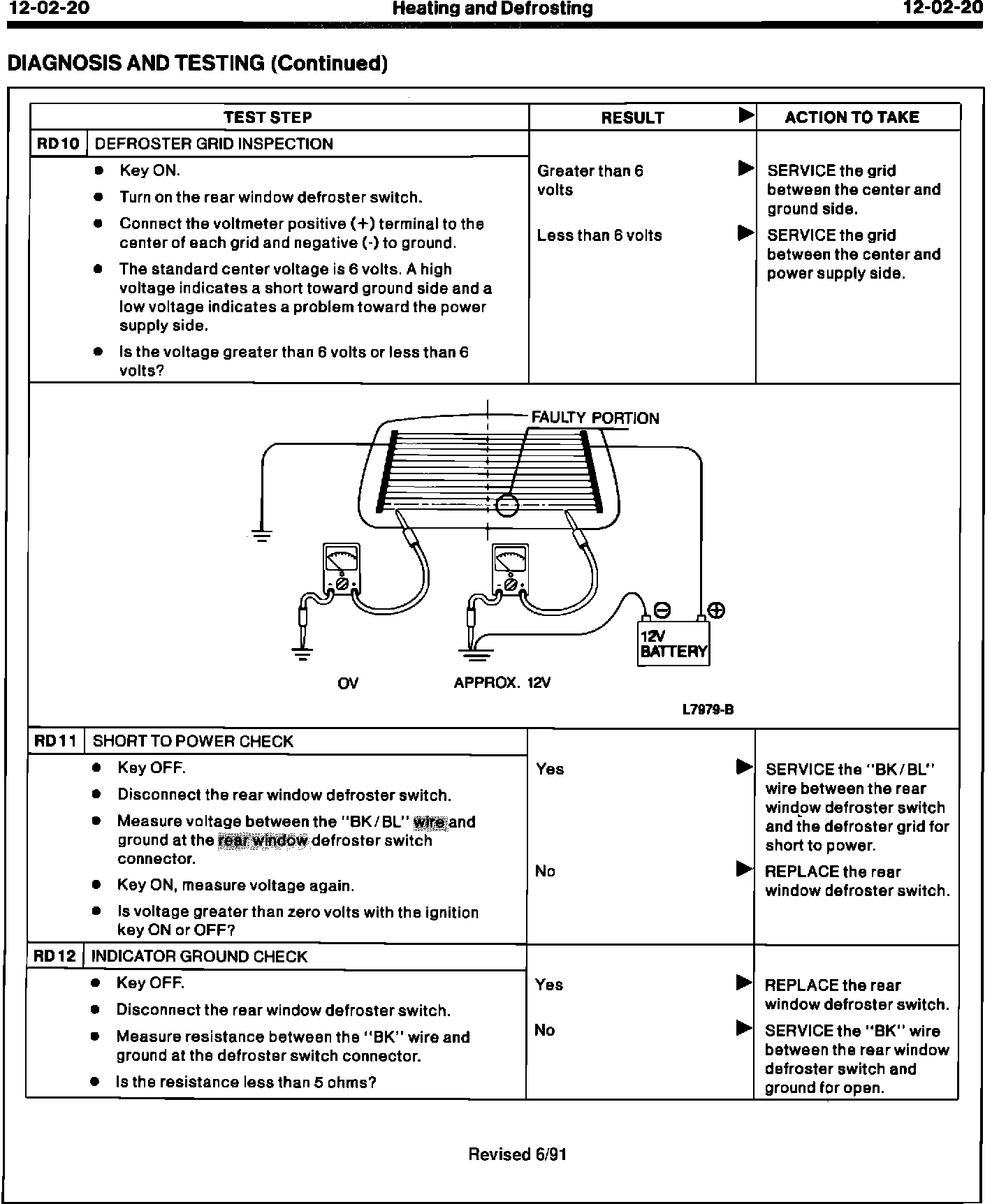

12-02-18 REAR WINDOW DEFROSTER TEST STEP RD1 thru 12
