Air Conditioning Diagnostics - Manual Revision

Article No.
91-14B-32

Date
July 22, 1991


SHOP MANUAL - 1991 - SECTION 12-03A - AIR CONDITIONING - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Air Conditioning Section 12-03A of the 1991 Escort/Tracer Shop Manual has been revised. The following pages are affected:

Pages in Shop Manual:
12-03A-13 through 19
12-03A-22
12-03A-25

The New Revised Pages:
12-03A-13 through 16
12-03A-18
12-03A-20


ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000

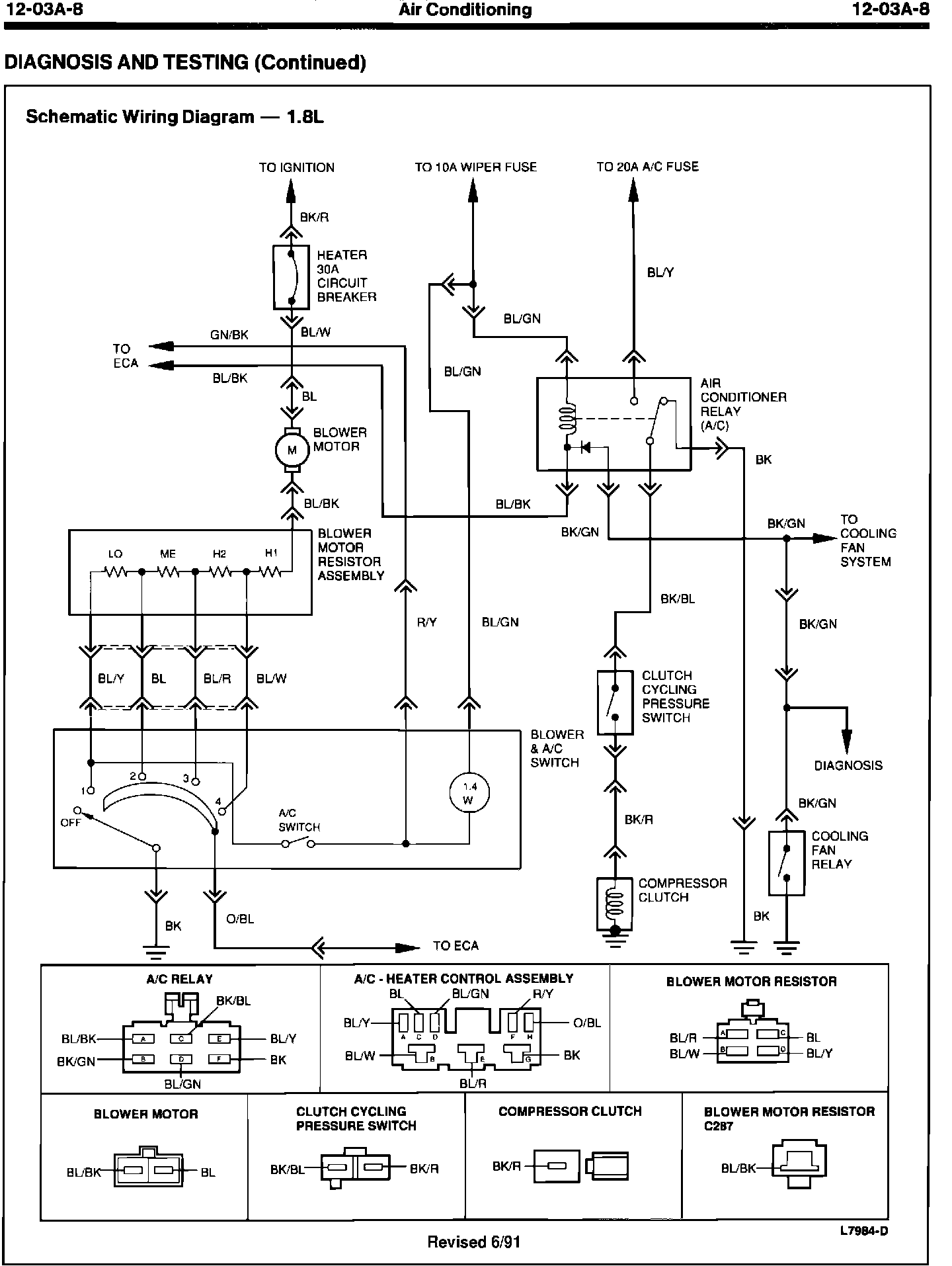

12-03A-8 SCHEMATIC WIRING DIAGRAM - 1.8L





12-03A-9 SCHEMATIC WIRING DIAGRAM - 1.9L

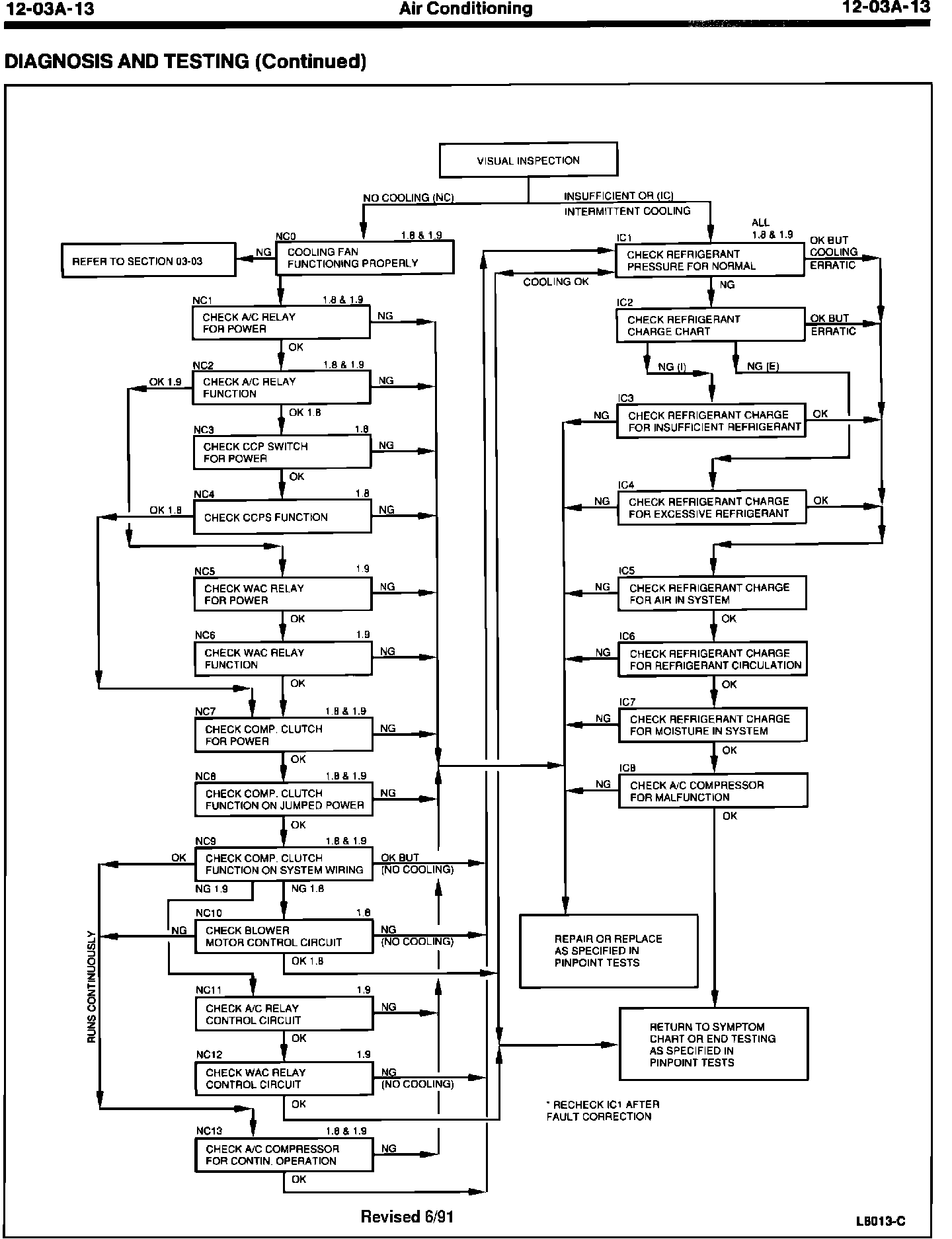

12-03A-13 DIAGNOSIS FLOW CHART

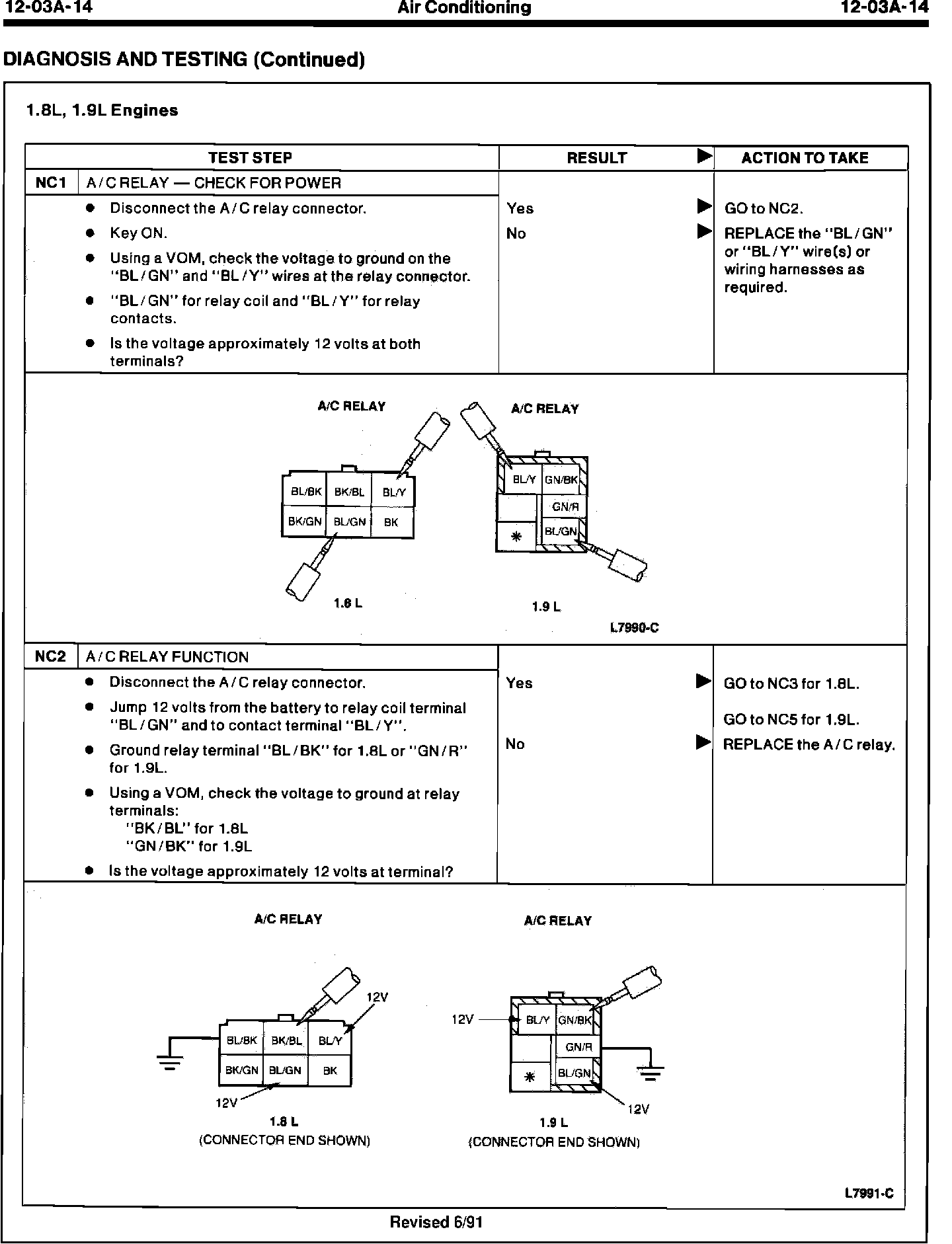

12-03A-14 TEST STEP NC1,2 1.8L, 1.9L ENGINES

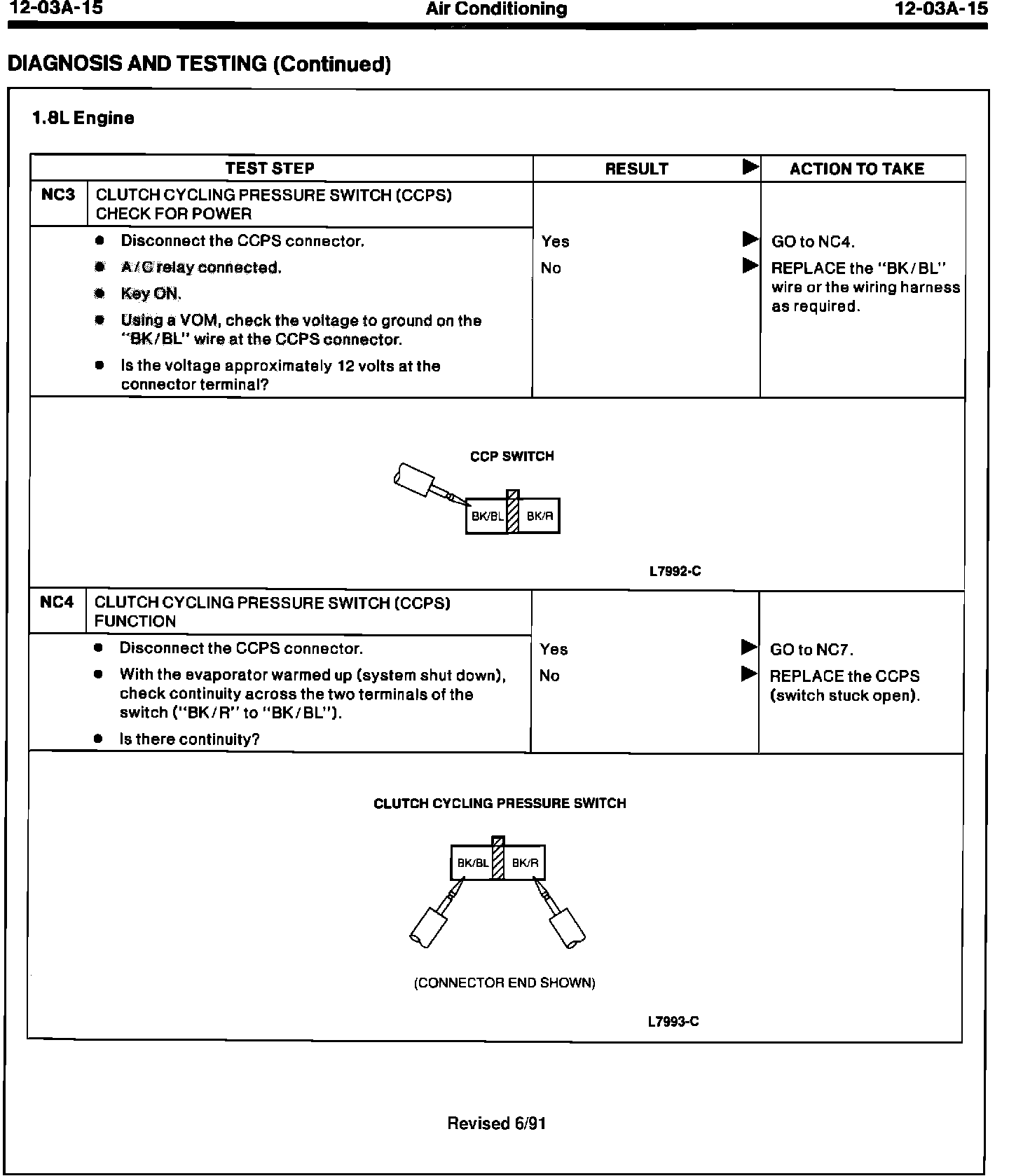

12-03A-15 TEST STEP NC3 1.8L ENGINE

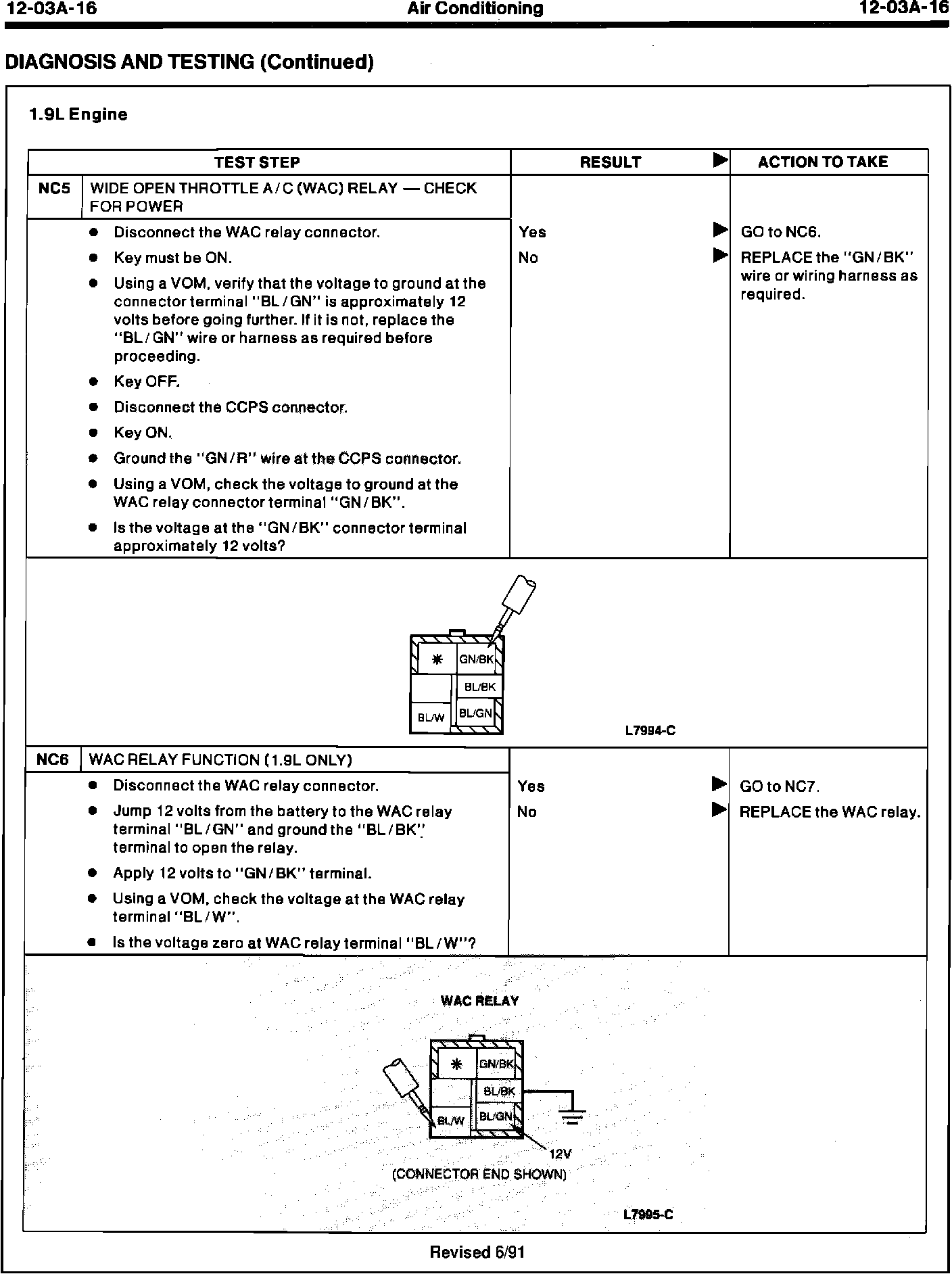

12-03A-16 TEST STEP NC5,6 1.9L ENGINE

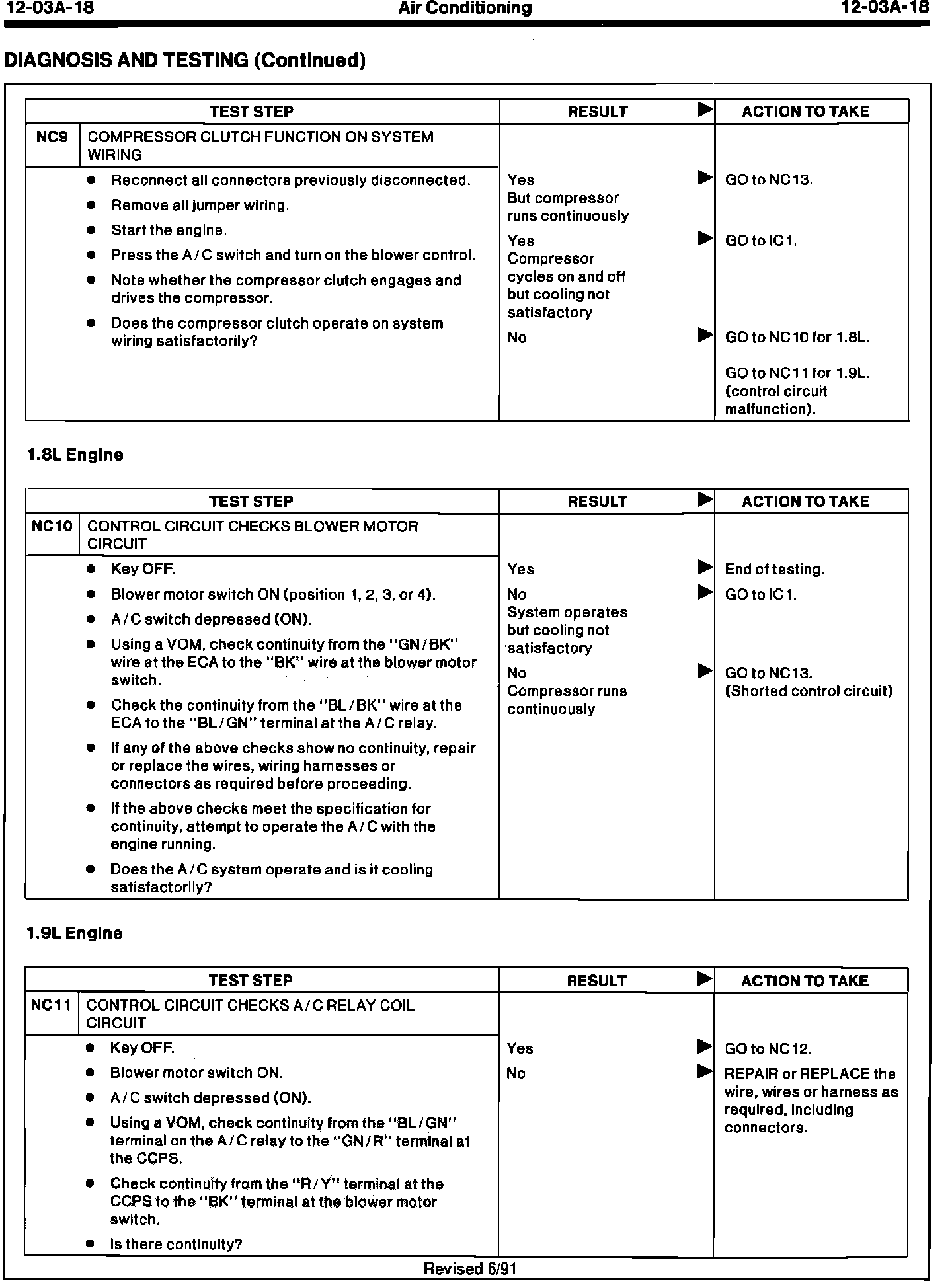

12-03A-18 TEST STEP NC9 thru 11

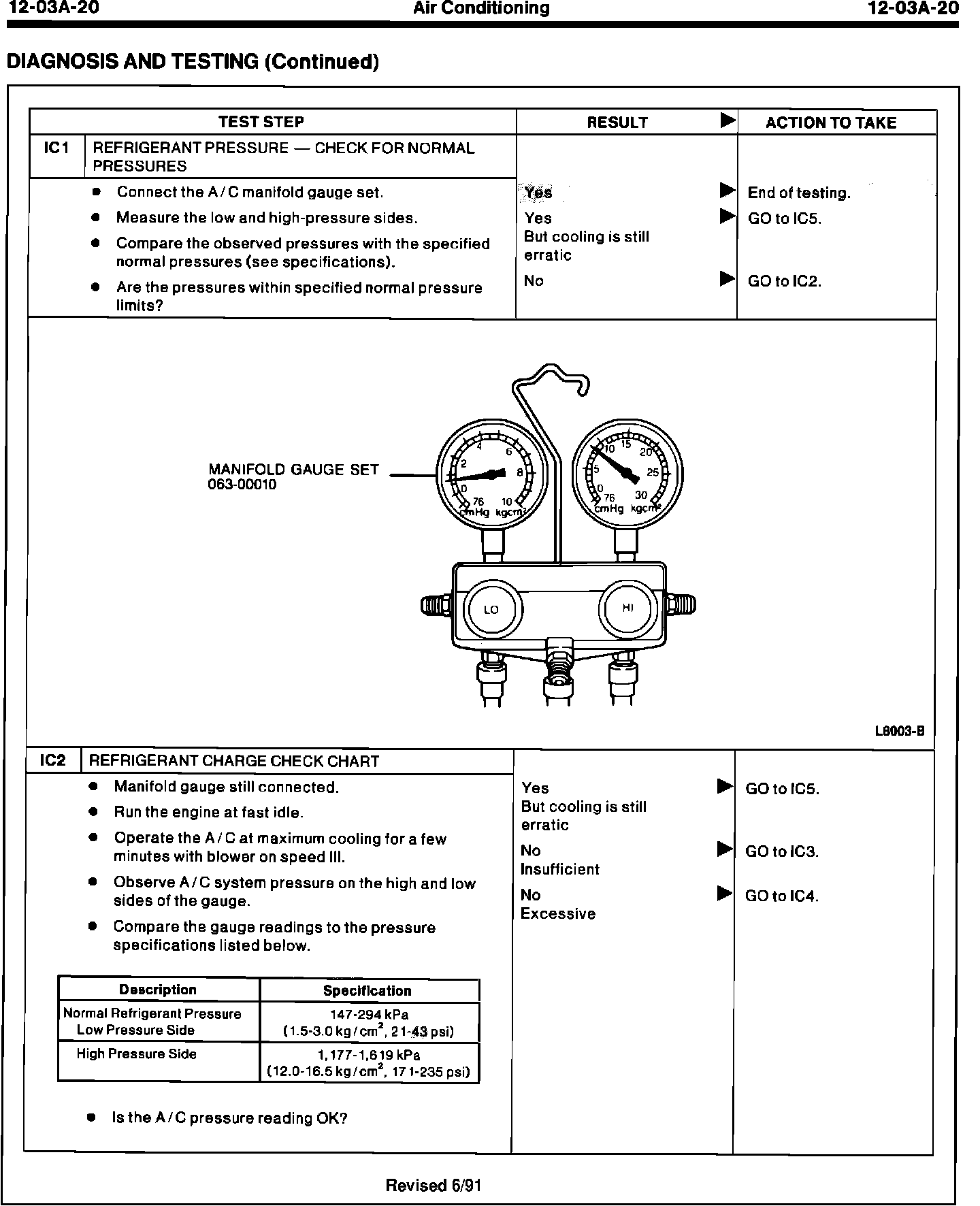

12-03A-20 TEST STEP IC1,2
