NC8: Compressor Clutch Function On Jumped Power

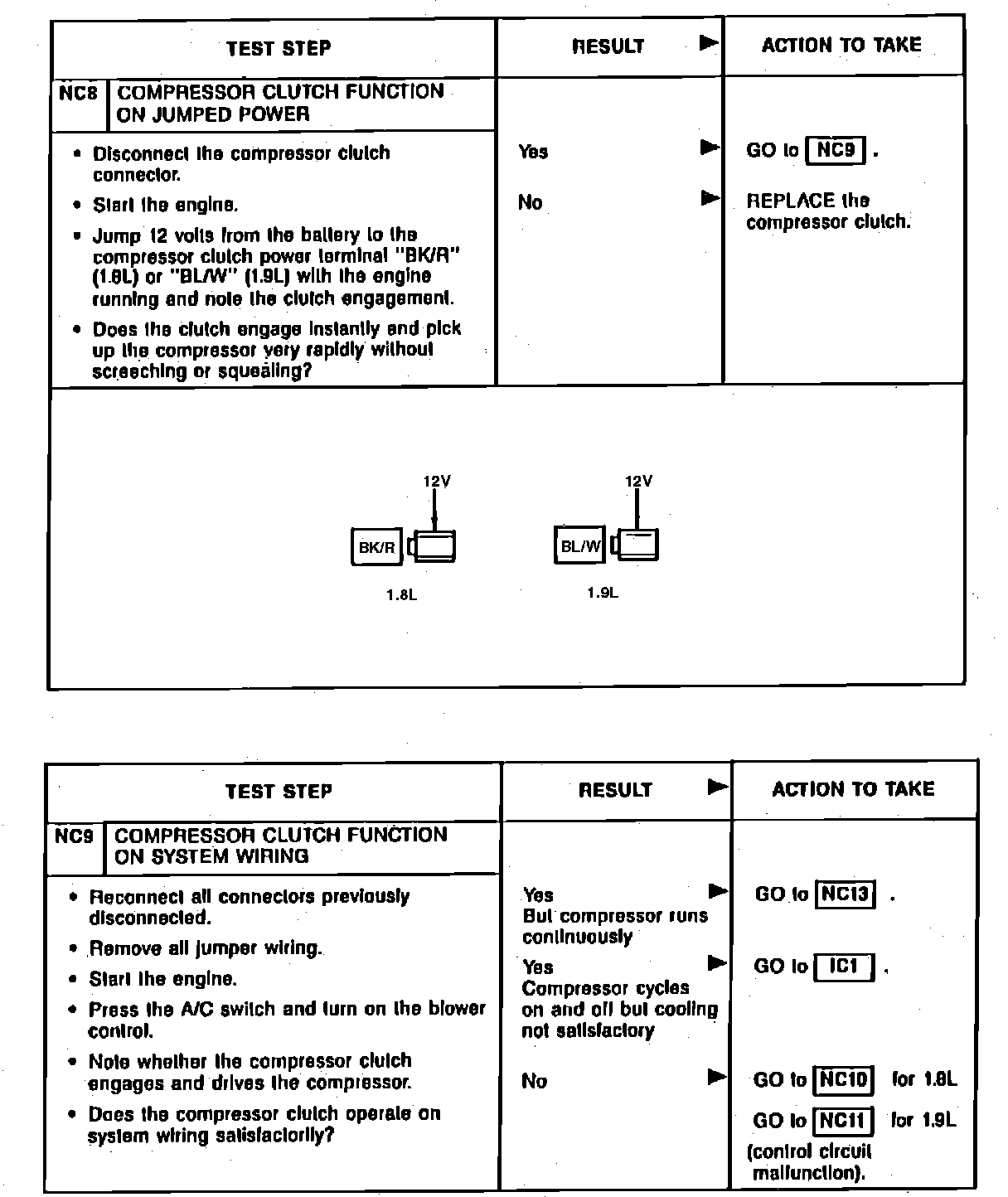

Fig. 41 Compressor clutch diagnosis (Tests NC8 & NC9):
