Timing Belt Adjusting Procedure - Revised

90ford32 SHOP MANUAL - 1991 - PAGE 03-01A-4 AND PAGE 03-01A-15-1.8L - PROCEDURE FOR ADJUSTING TIMING BELT REVISED
Article No. 90-18B-14
FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER

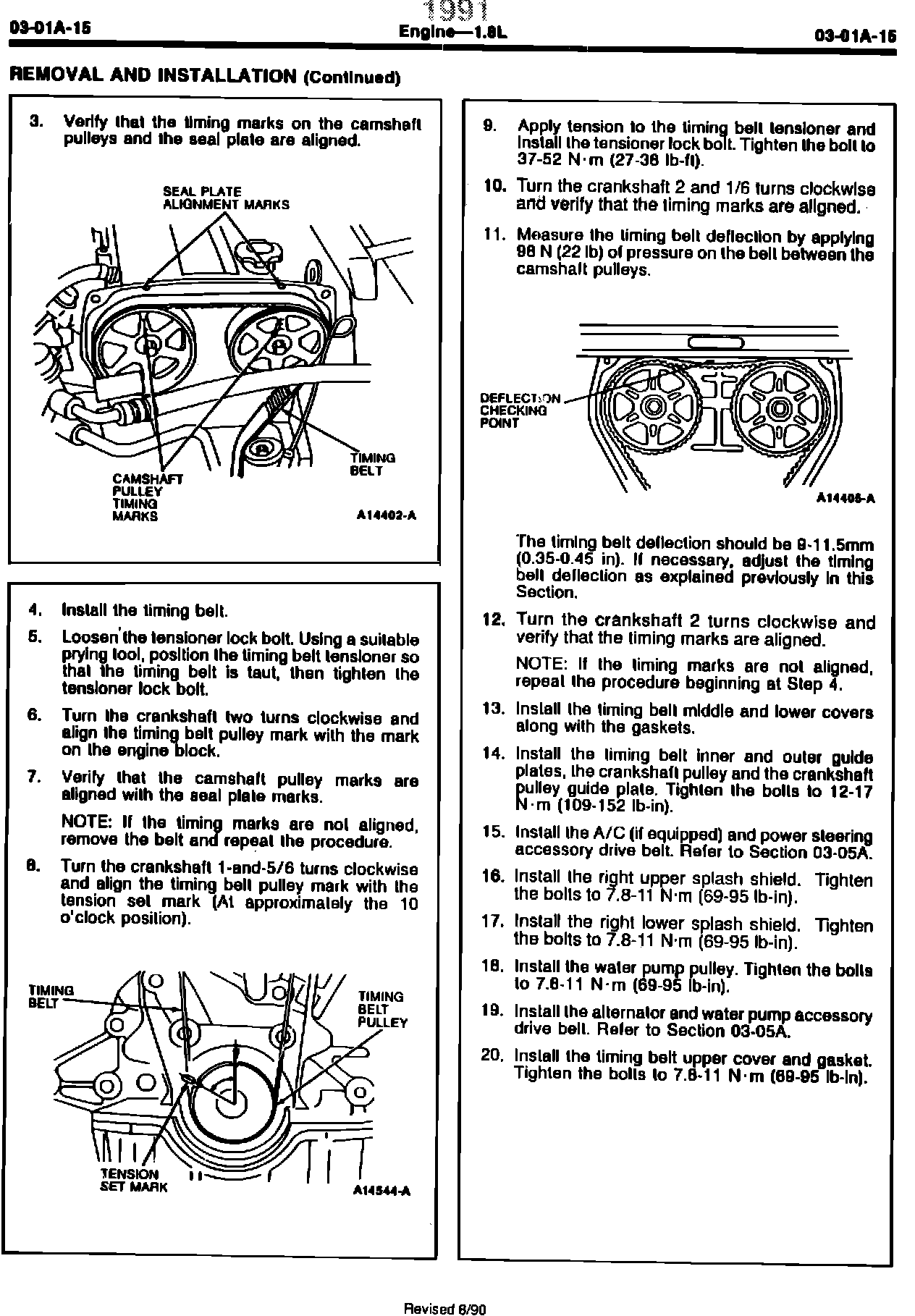

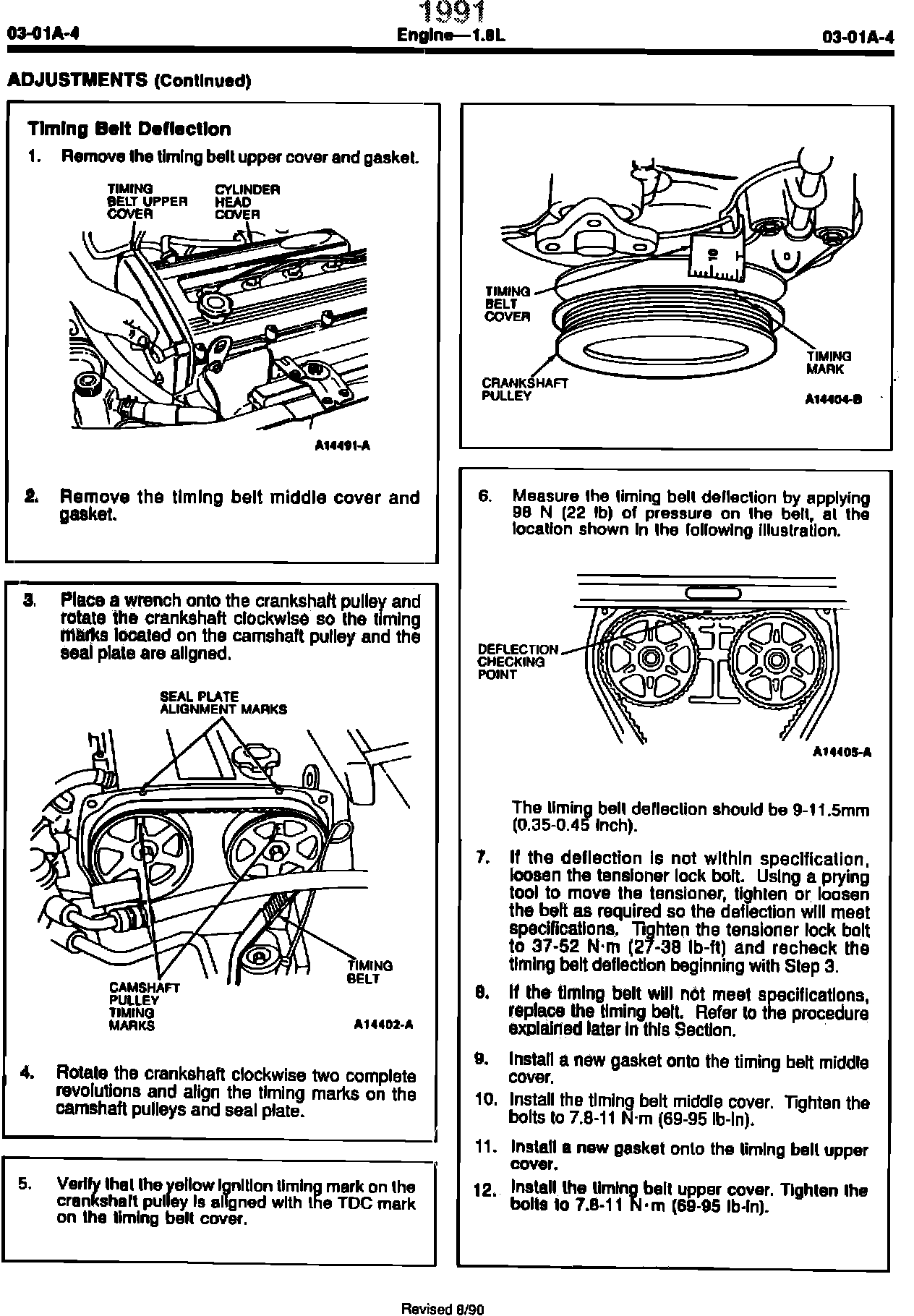

ISSUE: The procedure for adjusting the timing belt on the 1.8L engine as shown on Page 03-01A-4 and Page 03-01A-15 of the 1991 Escort/Tracer Shop Manual has been revised.

ACTION: Refer to the pages following this TSB article for the revised procedure.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 490000
