Tests C1 Thru D4

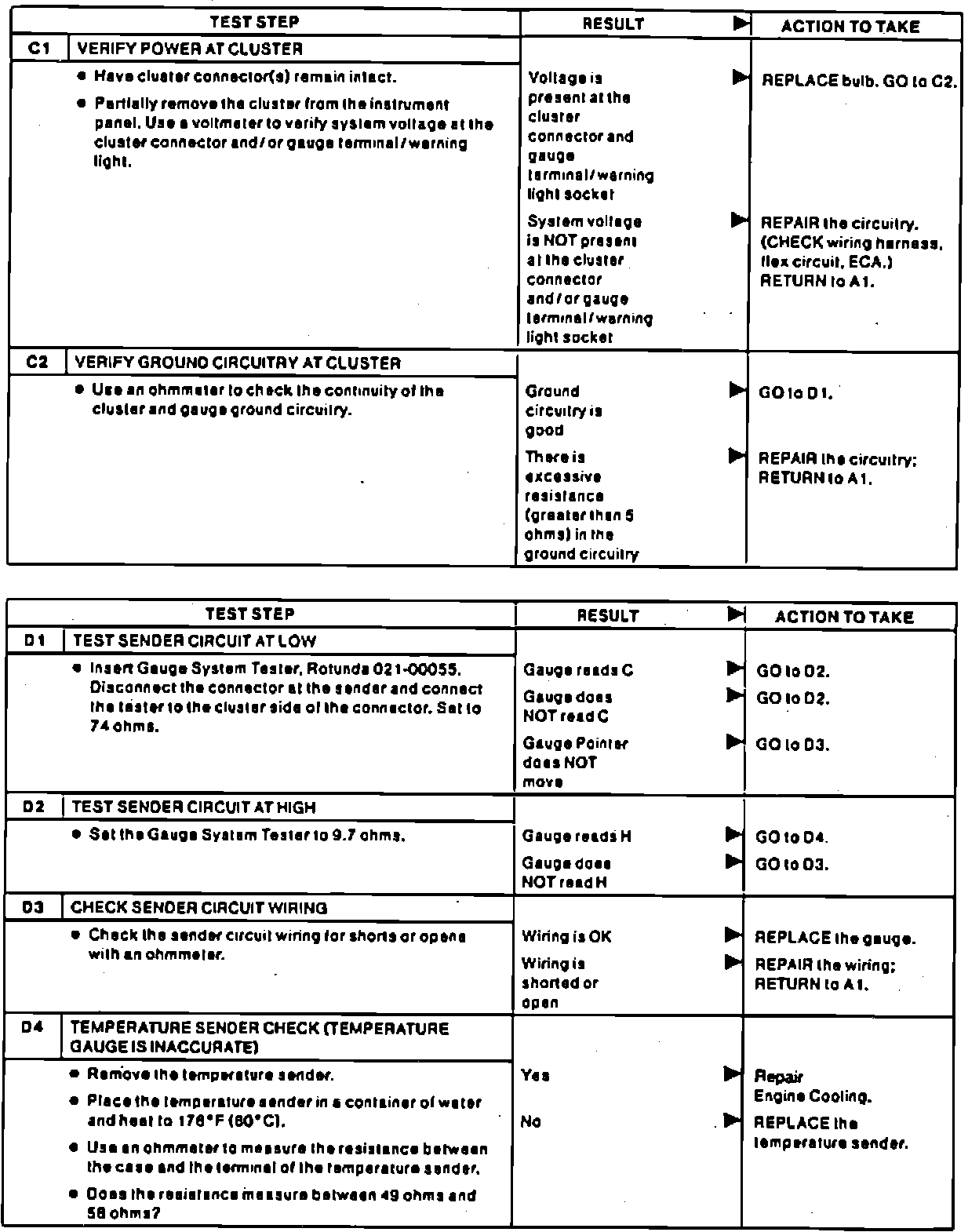

Fig. 10 Oil Pressure, Coolant Temperature Gauges & Warning Lights Diagnosis (Part 2 Of 4):
