Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pressure Warning Lamp/Indicator >> Testing and Inspection >> Pinpoint Tests >> Tests TG9 Thru TG14

Tests TG9 Thru TG14

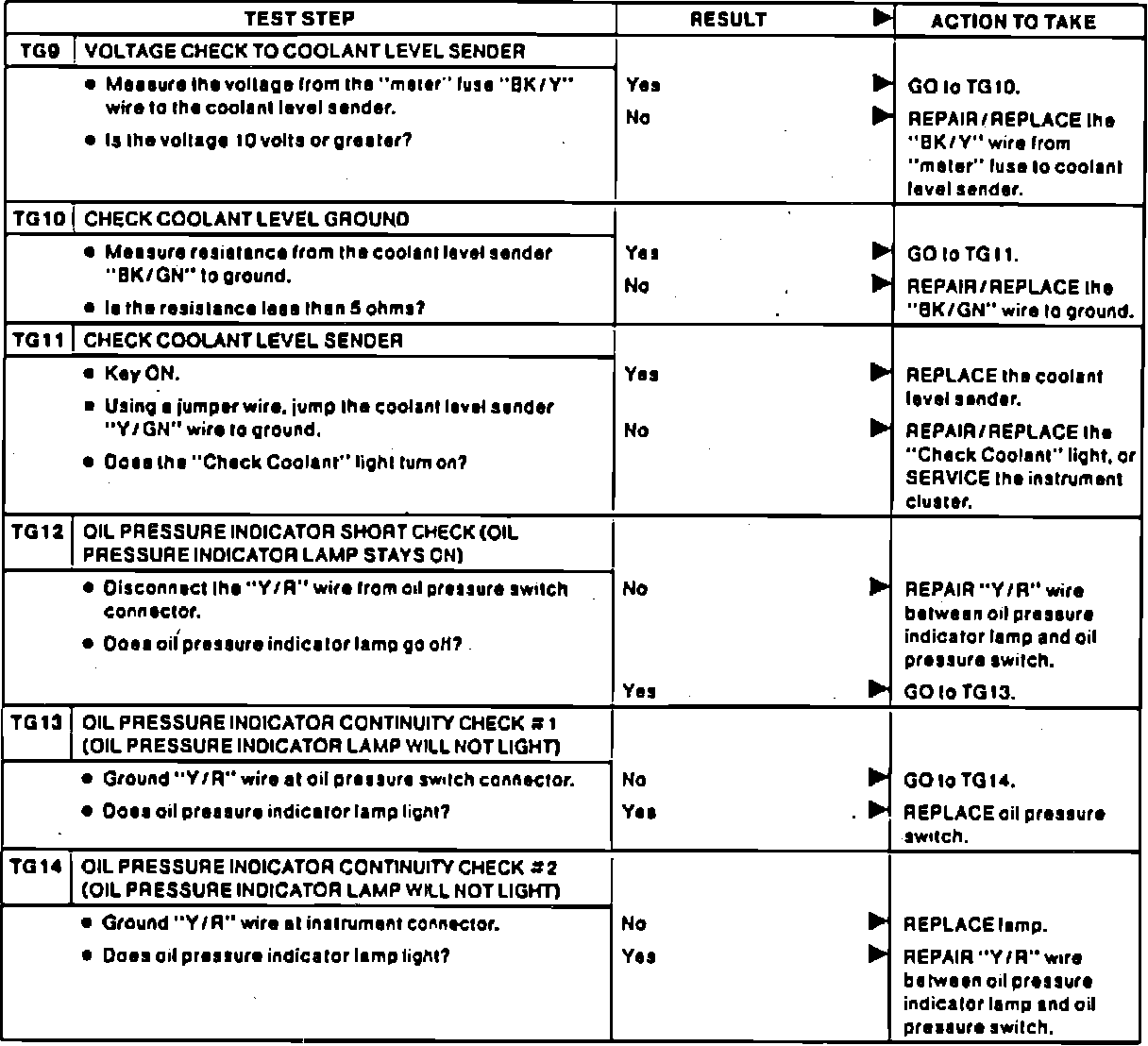

Fig. 10 Oil Pressure, Coolant Temperature Gauges & Warning Lights Diagnosis (Part 4 Of 4):
