Engine Cooling System Diagnostics - Revision

Article No.
91-14B-26

Date:
July 22, 1991



SHOP MANUAL - 1991 - SECTION 03-03 - ENGINE COOLING - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Engine Cooling Section 03-03 of the 1991 Escort/Tracer Shop Manual has been revised. The original pages 5 and 6, 10 through 15 have been revised by pages 5, 6 and 10 through 13.

ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
490000






03-03-5 Electrical Schematic - Engine Cooling Fan 1.8L






03-03-6 Electrical Schematic - Engine Cooling Fan 1.9L

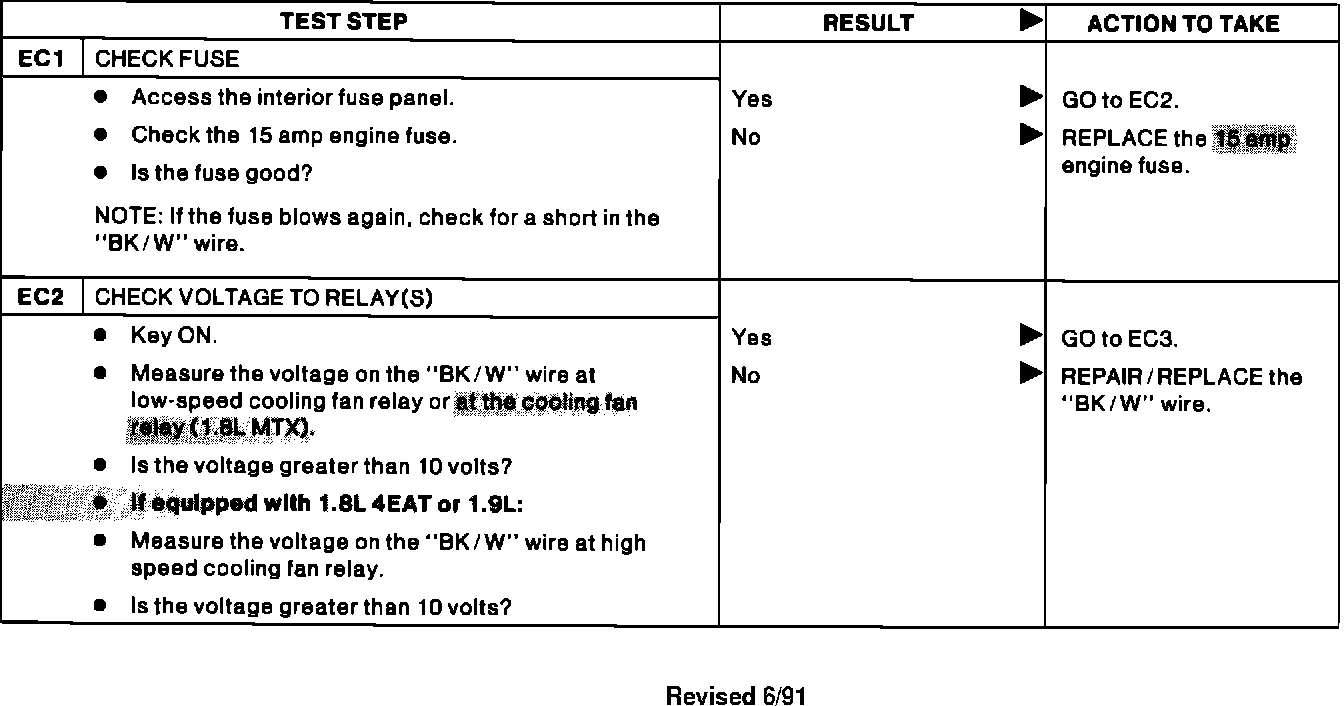

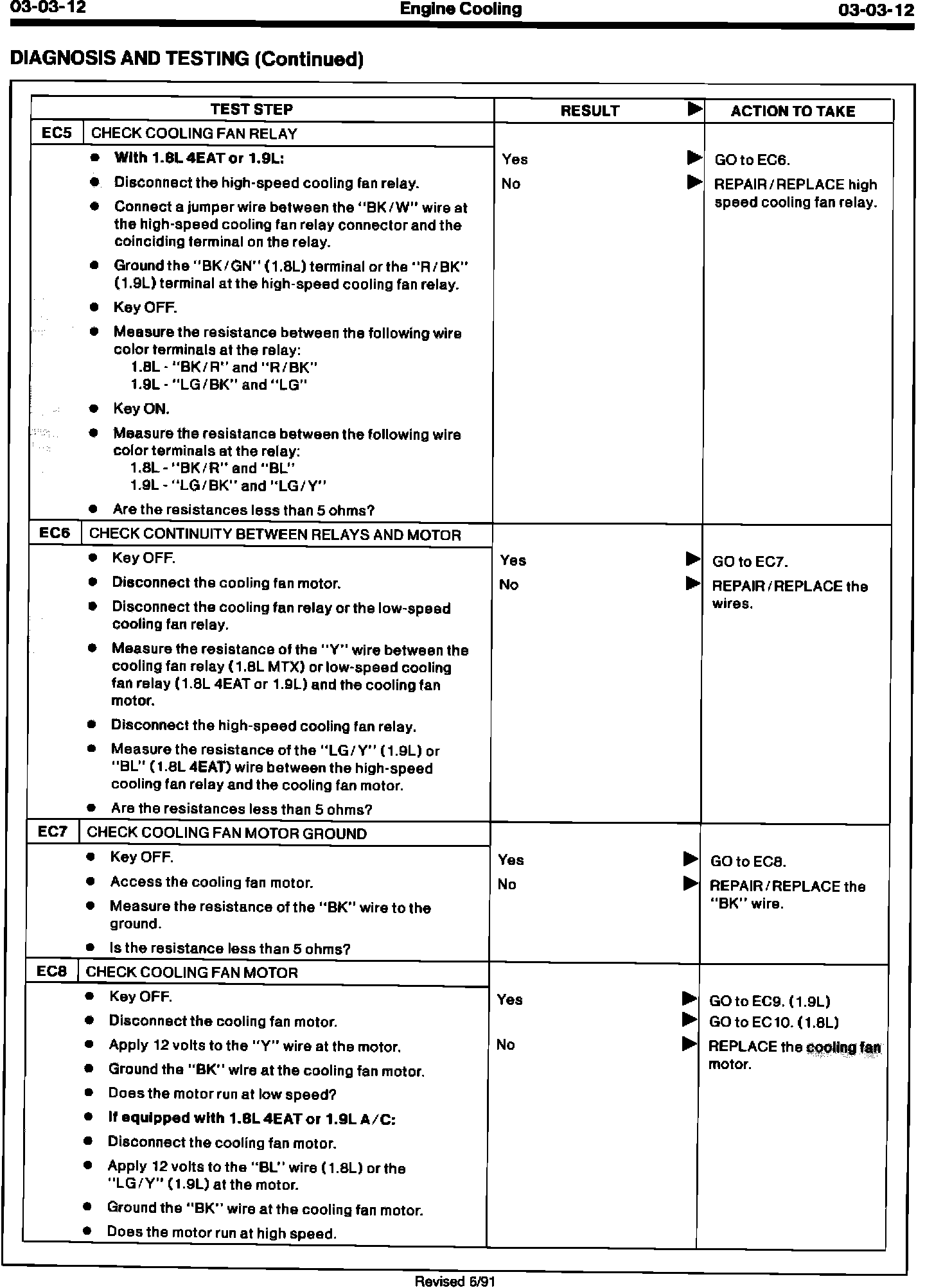

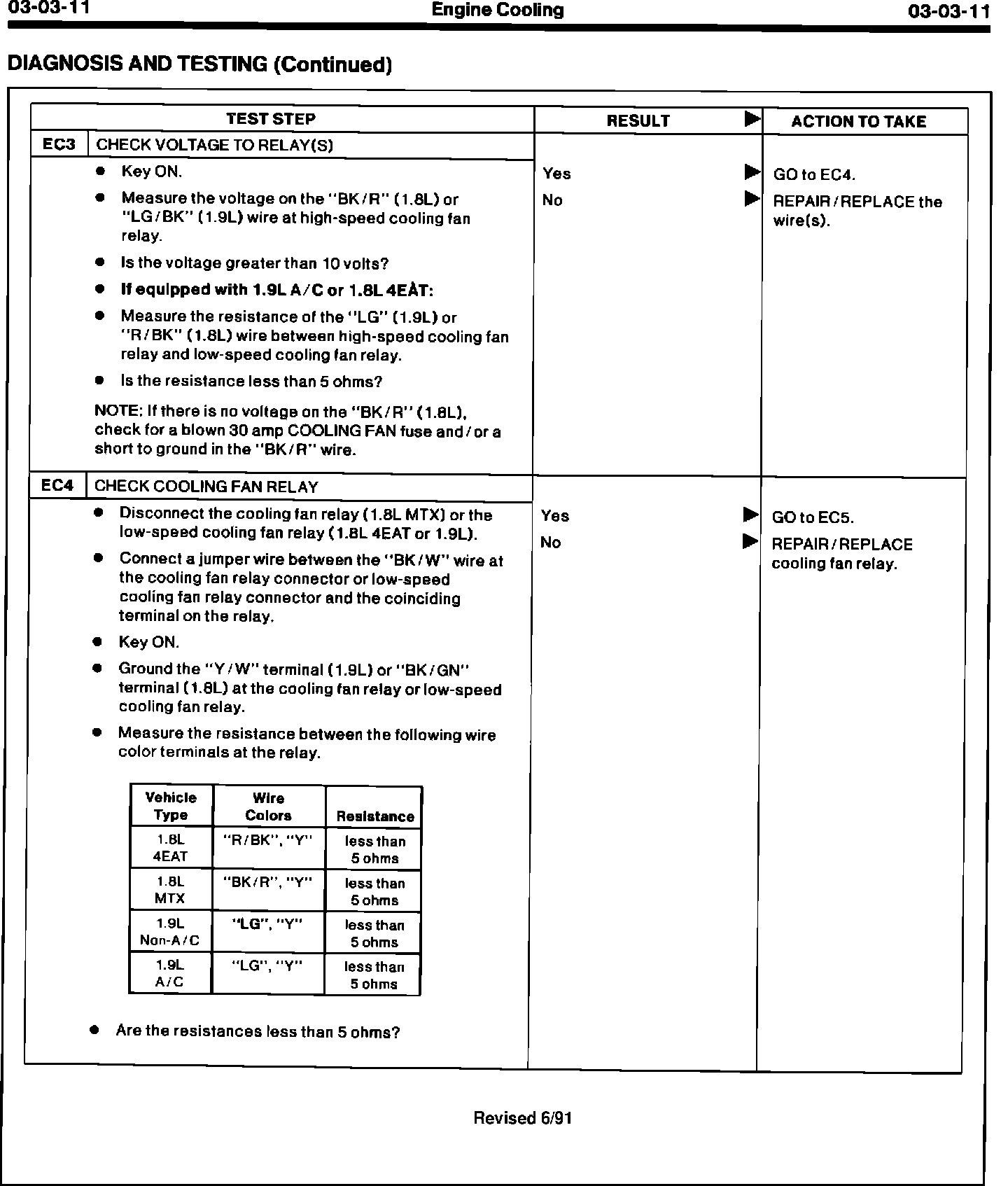

03-03 Pages 10 thru 13
