Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Brake Lamp >> Exc. 4 Door Models

Exc. 4 Door Models

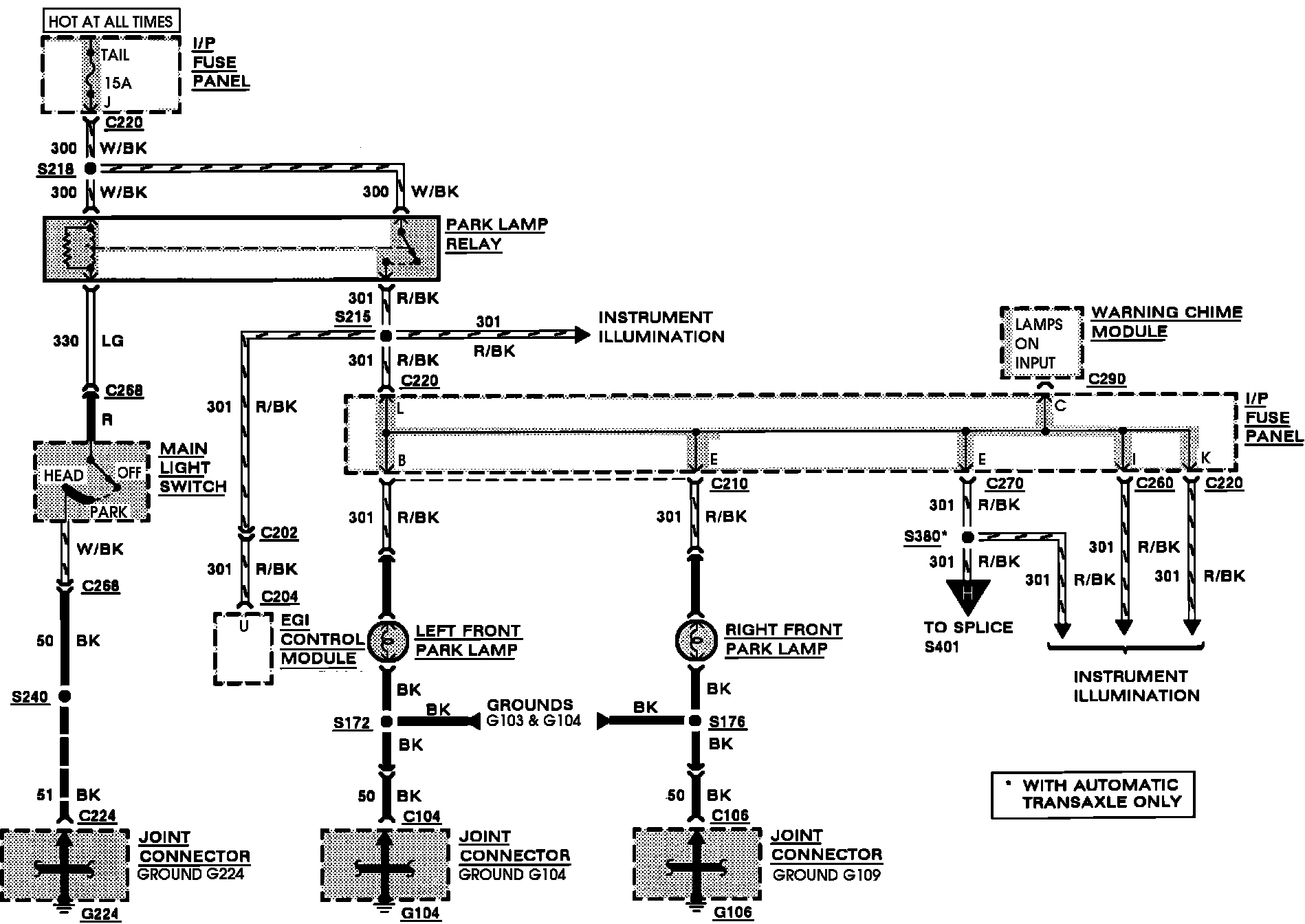

License, Park & Stop Lamp:

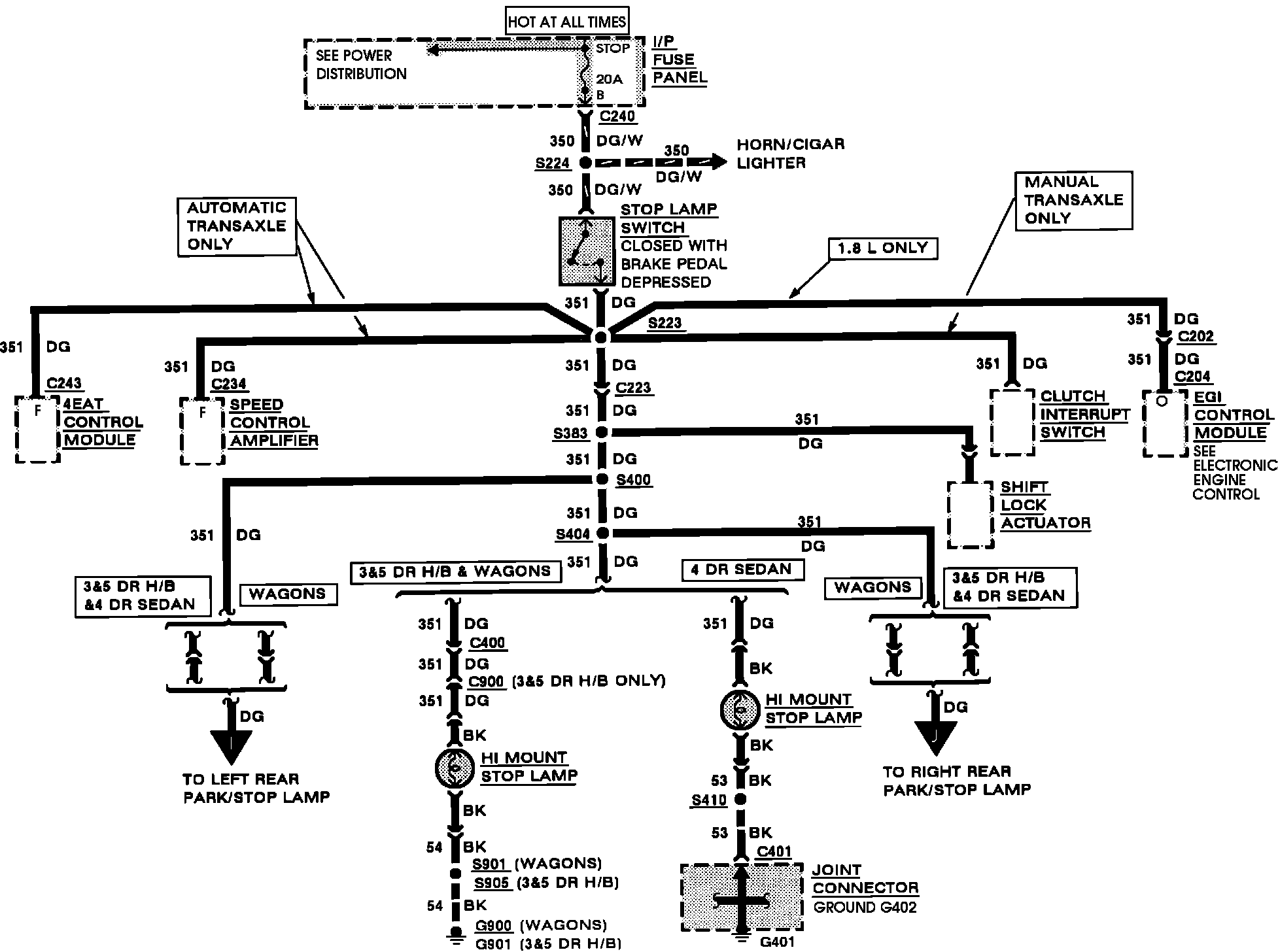

License, Park & Stop Lamp:

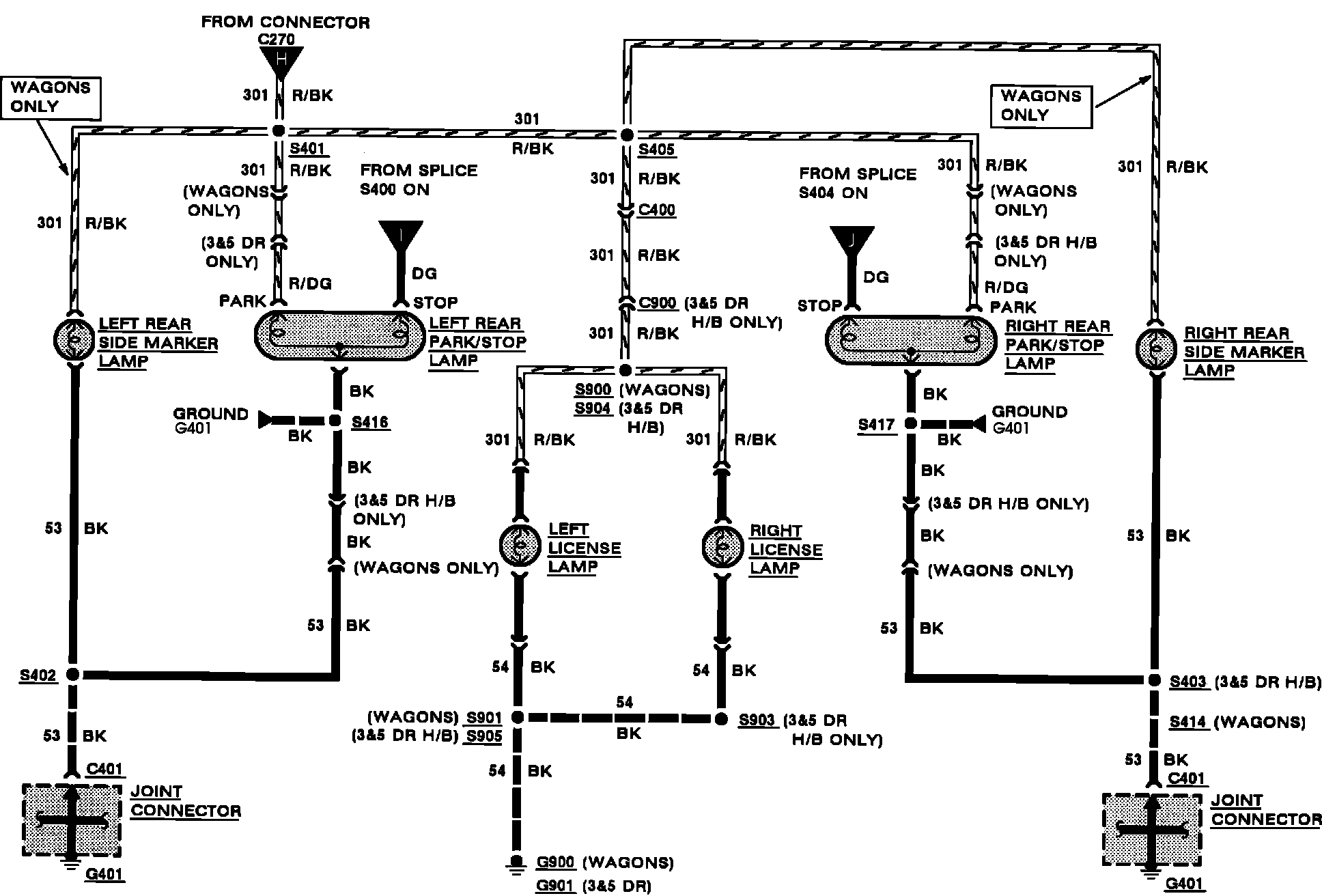

License, Park & Stop Lamp. Except 4 Door Models:
