Home >> Mercury >> 1991 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Sport Cluster

Sport Cluster

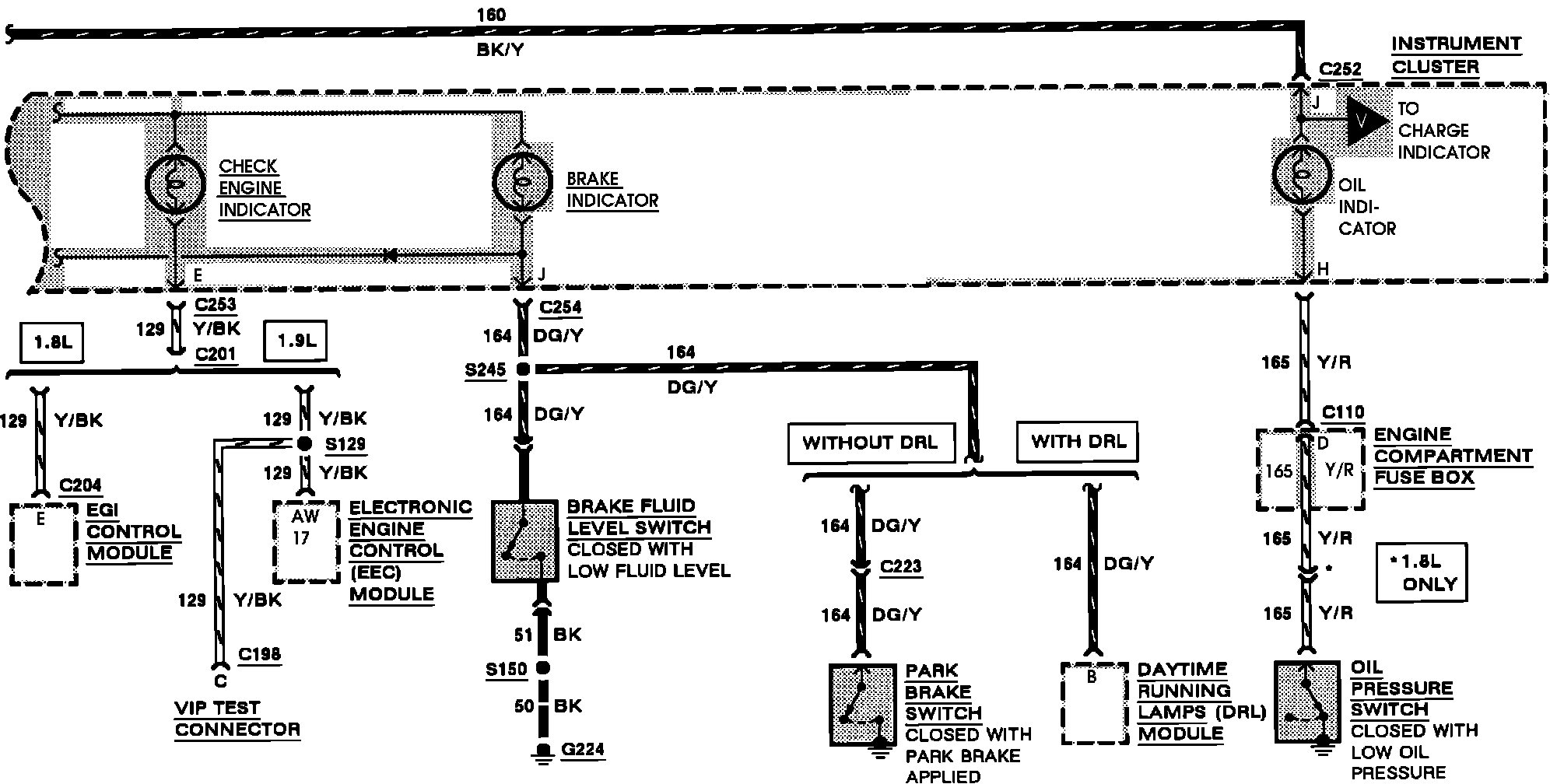

Instrument Cluster. Sport Cluster:

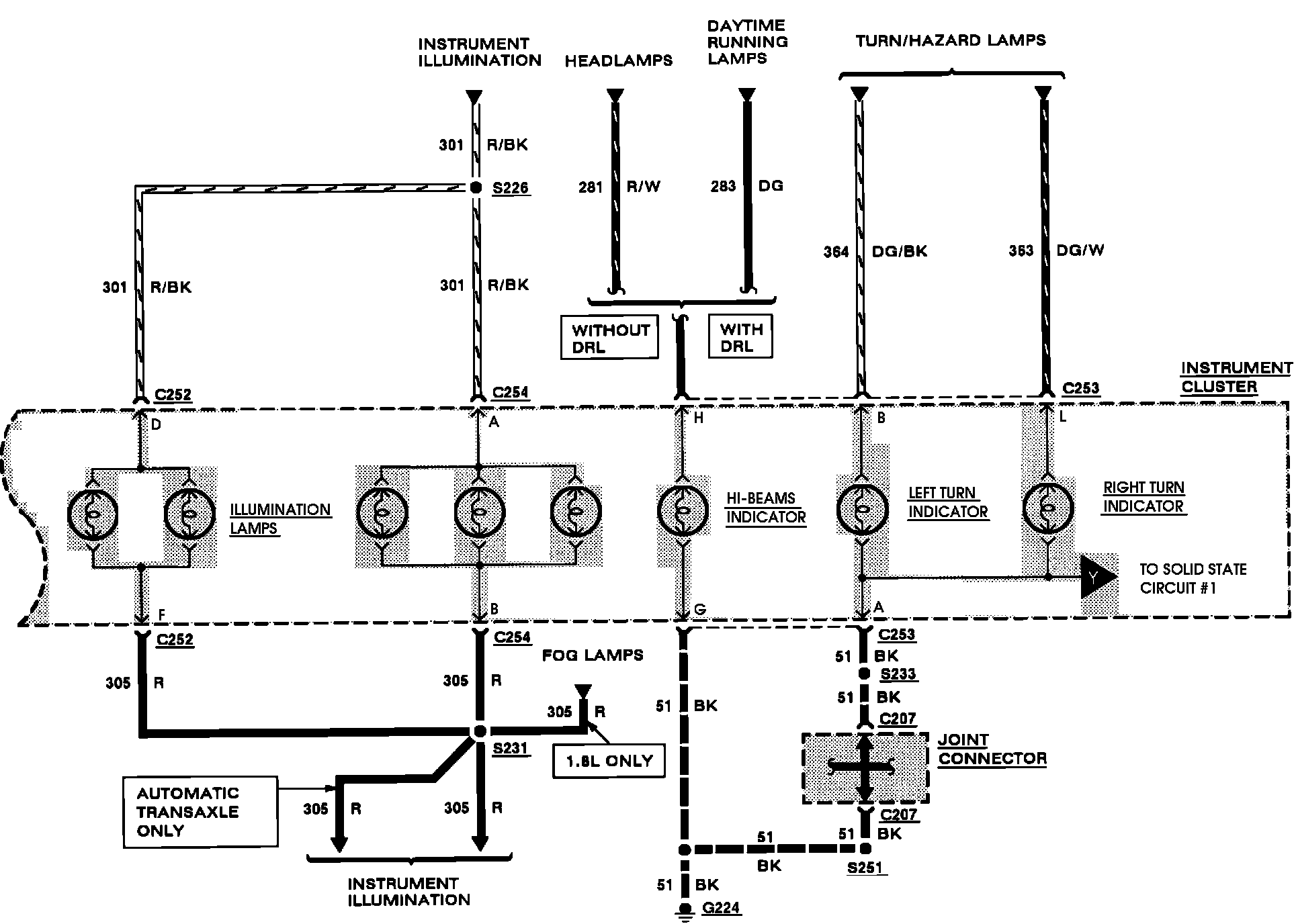

Instrument Cluster. Sport Cluster:

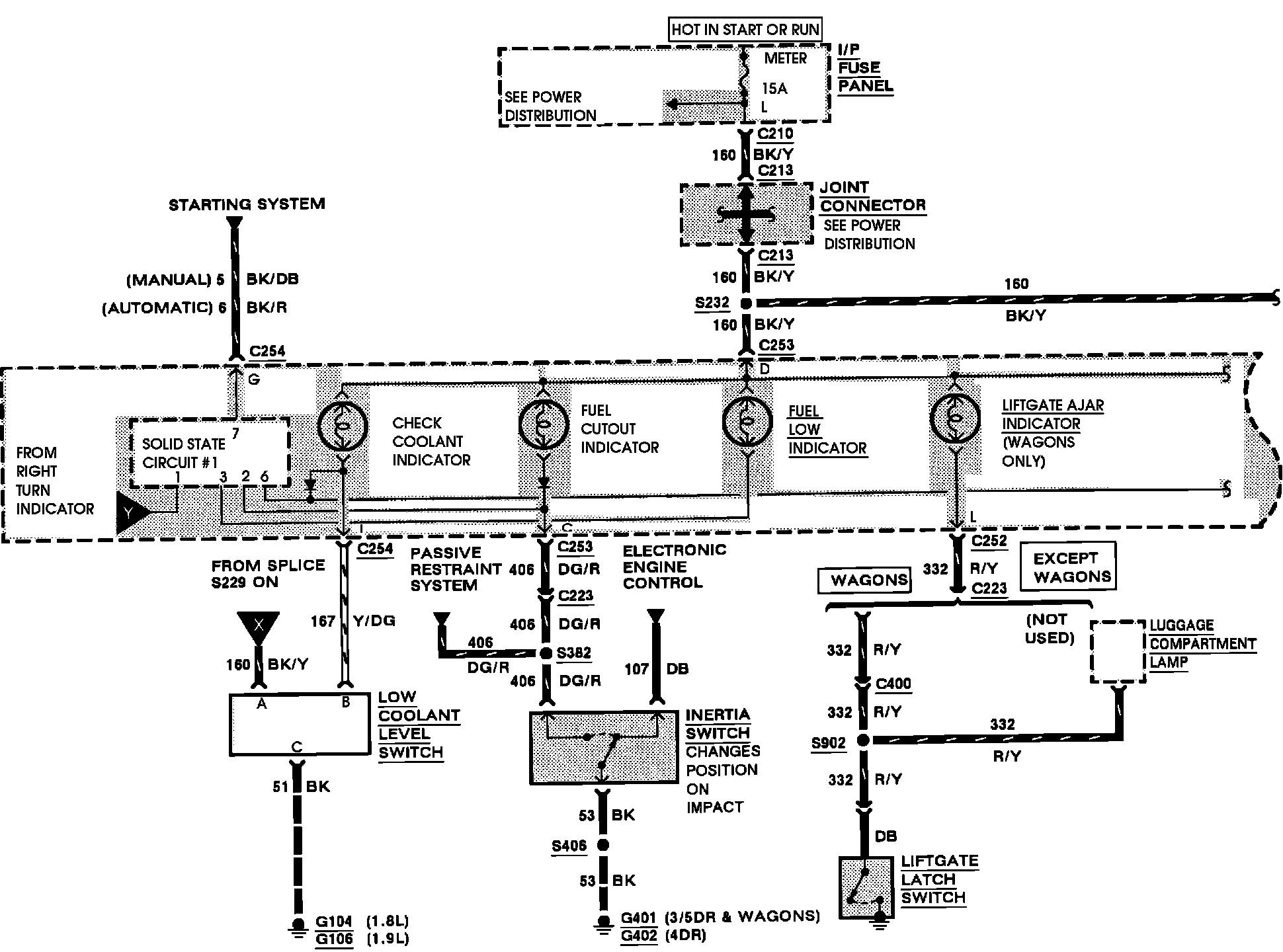

Instrument Cluster. Sport Cluster:



Instrument Cluster. Sport Cluster:



Instrument Cluster. Sport Cluster:
