Sunroof Wind Deflector - Damage

9235ford02

Article No.
92-14-1

07/01/92


SUNROOF - WIND DEFLECTOR DAMAGE - SERVICE PROCEDURE - VEHICLES BUILT BEFORE 8/6/91


FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER


This TSB article is being republished in its entirety to include the individual parts of the wind deflector.

ISSUE:
Damage to the wind deflector may result from the separation of the deflector connector and the deflector bracket.

ACTION:
Inspect and repair the wind deflector. Refer to the following repair procedure for service details.


1. Inspect the wind deflector assembly for damaged parts.

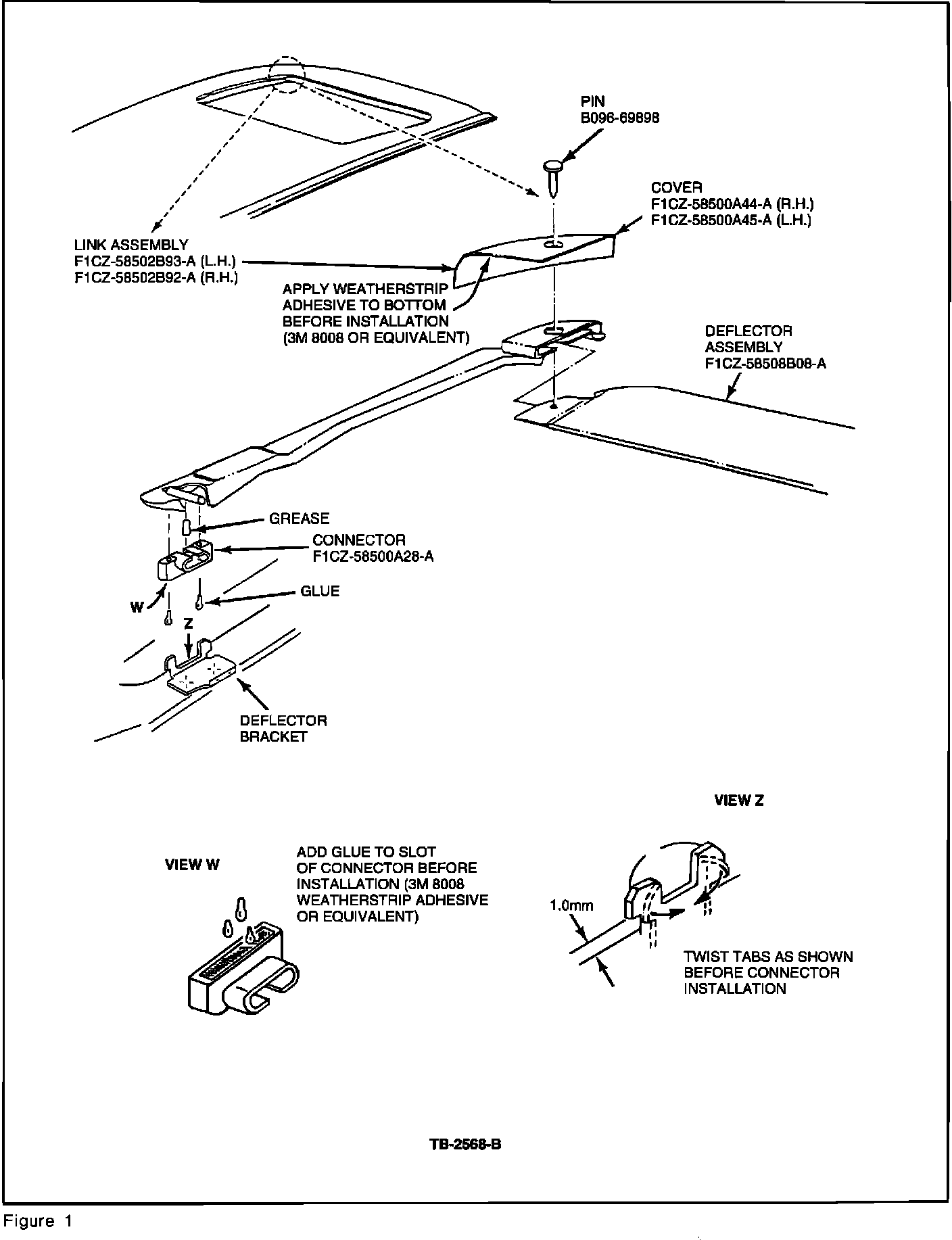

2. Pry the left side connector (F1CZ-58500A28-A) from the vehicle. Refer to Figure 1.

3. Twist the deflector bracket tabs inboard 1.0 mm as shown in View Z, Figure 1.

4. Repeat steps 2 and 3 for the right side connector.

5. Replace the damaged parts of the wind deflector assembly as required. Views of individual parts are shown in Figure 1.

6. Add adhesive to the slot of both connectors as shown in View W, Figure 1.

7. Install the wind deflector assembly.


PART NUMBER PART NAME CLASS

Obtain From 3M Weatherstrip Adhesive - (3M -
Supplier # 8008)
F1CZ-58500A28-A Deflector Connector - LH B
F1CZ-58502B93-A Link Assembly - LH B
F1CZ-58502B92-A Link Assembly - RH B
F1CZ-58508B08-A Deflector Assembly B
B096-69898 Pin (Pkg./4) B
F1CZ-58500A44-A Cover - RH (Pkg./2) B
F1CZ-58500A45-A Cover - LH (Pkg./2) B

OTHER APPLICABLE ARTICLES:
NONE
SUPERSEDES:
92-11-1
WARRANTY STATUS:
Eligible Under Basic Warranty Coverage
OPERATION DESCRIPTION TIME
921401A Inspect And Repair 0.5 Hr.
Deflector Connector
921401B Repair Deflector Connector 0.6 Hr.
And Replace Deflector Assembly
921401C Repair Deflector Connector 0.6 Hr.
And Replace One Or Both
Link Assemblies
921401D Replace Deflector 0.5 Hr.
Connector
DEALER CODING
BASIC PART NO. CONDITION CODE
70500A28 01
OASIS CODES:
105000
