Moon Roof Sunshade - Rattles

9227ford01

Article No.
92-10-2

May 6, 1992


^ MOON ROOF - SUNSHADE "RATTLES" - VEHICLES BUILT BEFORE 5/1/91

^ NOISE - "RATTLES" FROM MOON ROOF SUNSHADE - VEHICLES BUILT BEFORE 5/1/91


FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
A "rattle" from the moon roof sunshade may be caused by excessive clearance in the guide runs allowing movement.

ACTION:
Install Flock Tape on the sunshade to reduce clearance and eliminate the rattle. Refer to the following procedure and the 1991 Escort/Tracer Service Manual, Section 01-17, for service details.


SERVICE PROCEDURE

1. Remove the moon roof sliding glass panel, Refer to the 1991 Escort/Tracer Service Manual, Section 01-17, for removal procedure.

2. Remove the sunshade from the moon roof assembly.

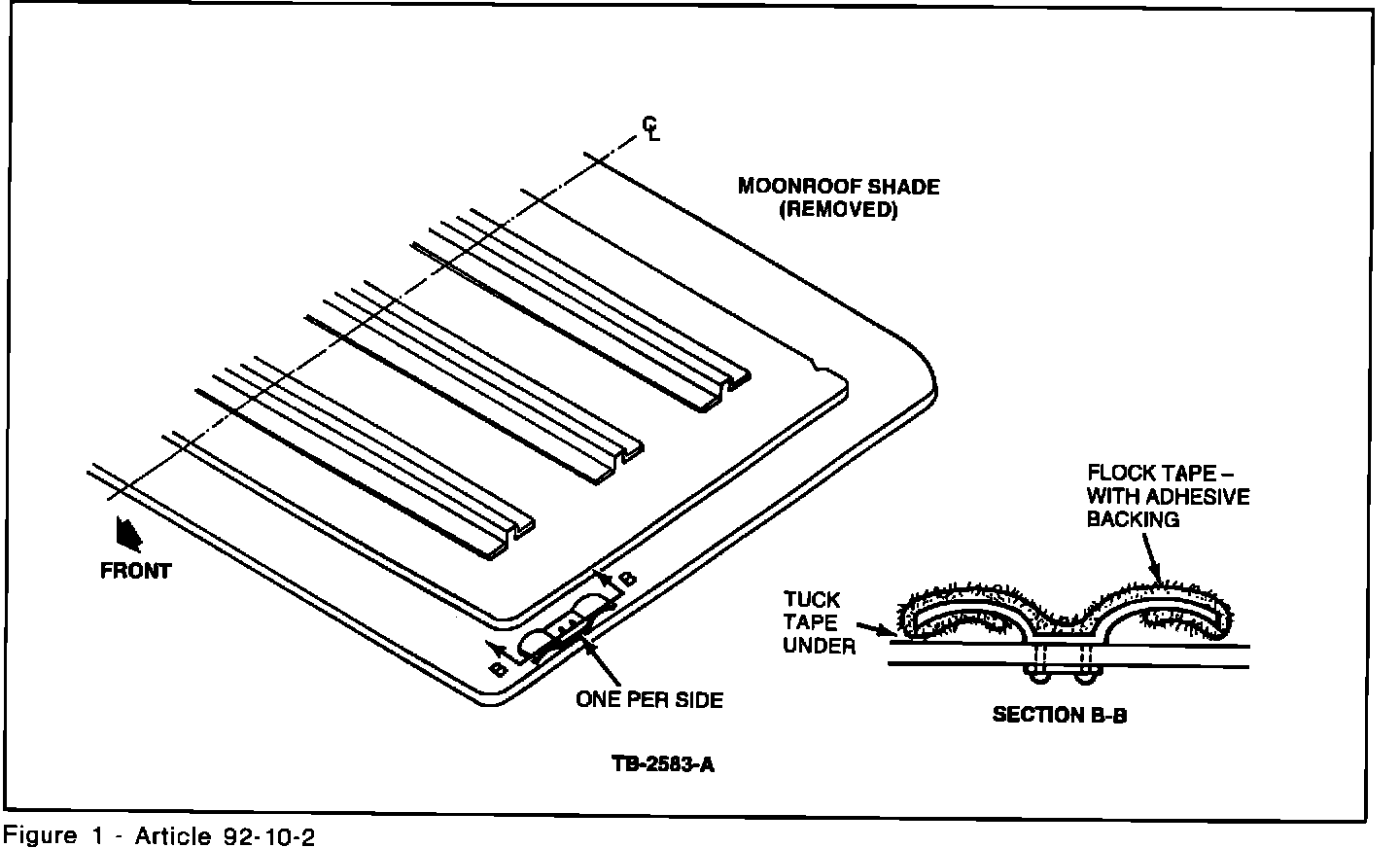

3. Place flock tape on the sunshade as shown in Figure 1.

4. Install the sunshade.

5. Install the glass panel.

PART NUMBER PART NAME CLASS

F1CZ-58519T02-A Flock Tape CG

WARRANTY STATUS:
Eligible Under Basic Warranty Coverage
OPERATION DESCRIPTION TIME
921002A Install Flocktape Sunshade 0.5 Hr.
DEALER CODING
BASIC PART NO. CONDITION CODE
70502A82 56
OASIS CODES: 105000, 702000, 702300
