Rearview Mirror Diagnostics - Revision

Article No.
91-14B-18

07/22/91

SHOP MANUAL - 1991 - SECTION 01-09 - REARVIEW MIRRORS - DIAGNOSTIC INFORMATION REVISED


FORD:
1991 ESCORT

LINCOLN-MERCURY:
1991 TRACER








ISSUE:

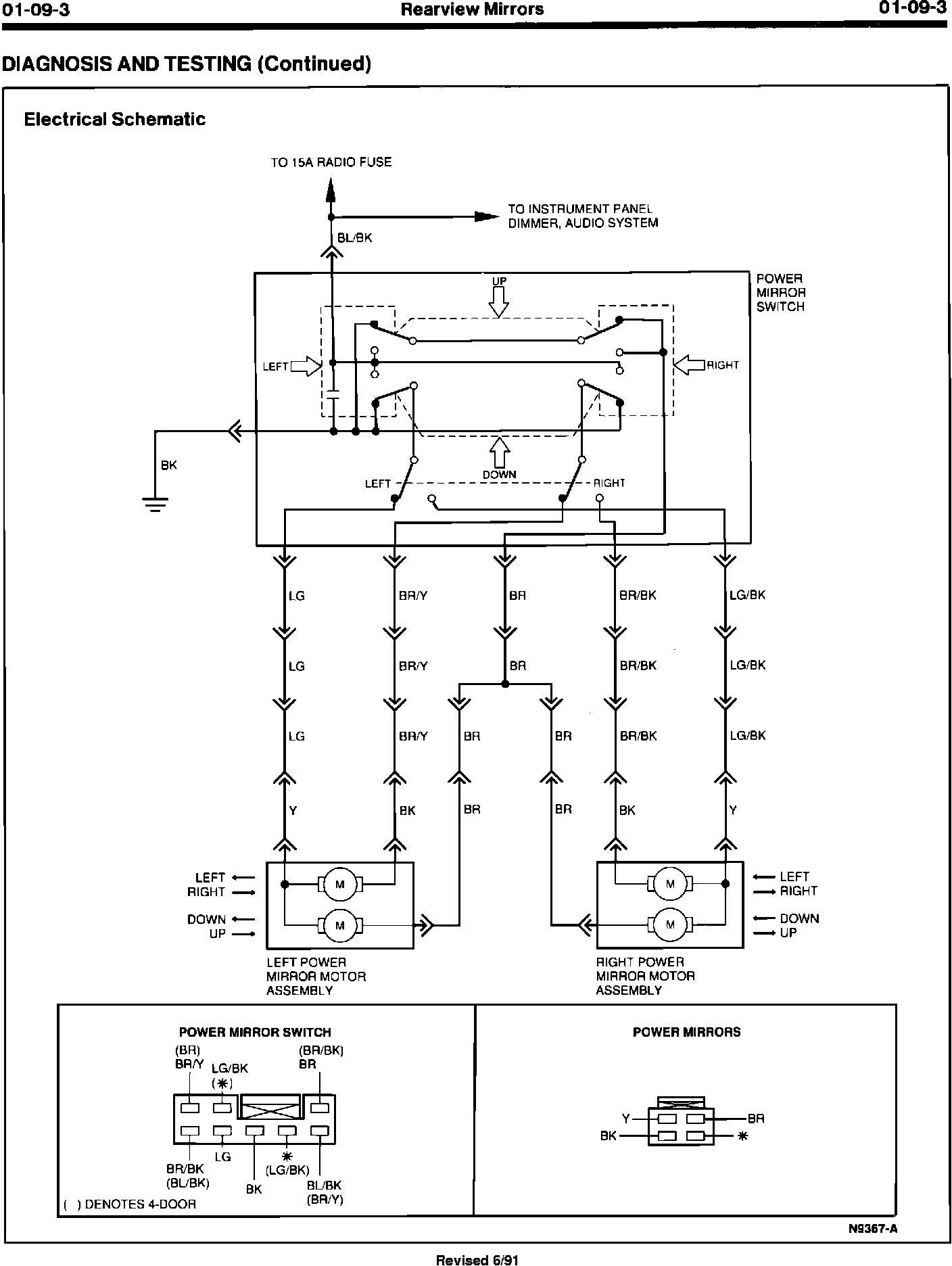

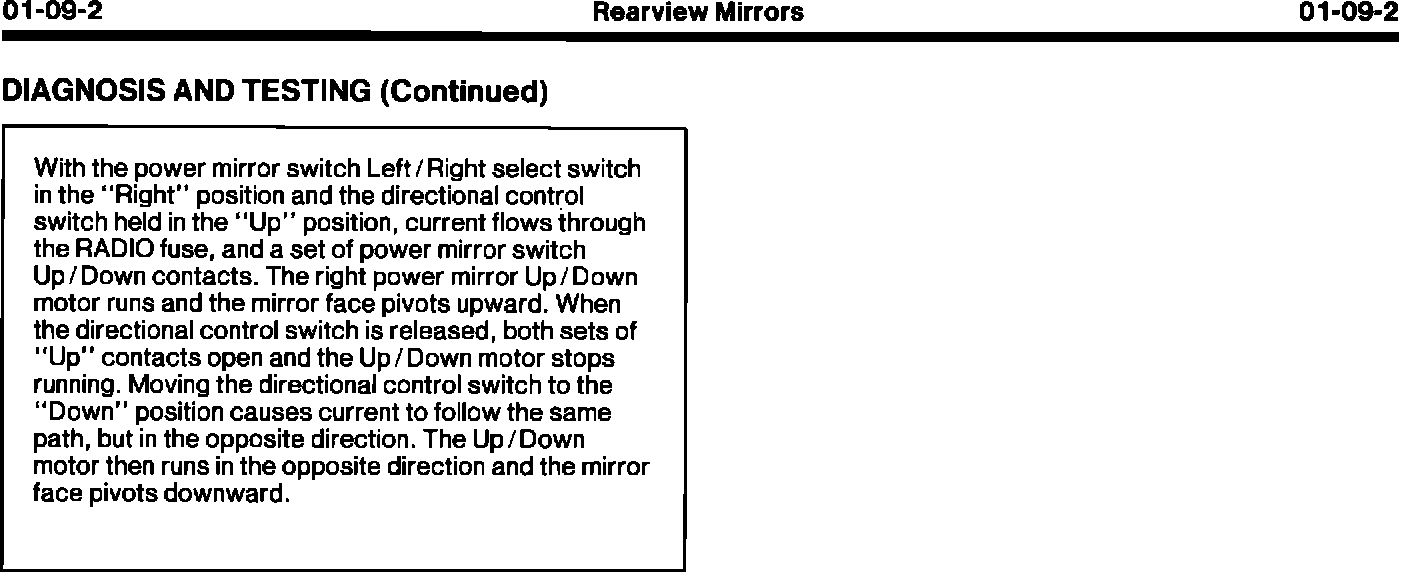

Rearview mirrors Section 01-09 of the 1991 Escort/Tracer Shop Manual has been revised. The wiring schematic has been revised. It has been moved from page 2 to page 3. The testing procedures that are on the original page 3 need to be used also. Do not discard. Edit the original page to 3a then add the ammended pages 2 and 3.

ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
190000
