Left Front

Removal

WARNING: THE ELECTRICAL CIRCUIT NECESSARY FOR SYSTEM DEPLOYMENT IS POWERED DIRECTLY FROM THE BATTERY AND BACKUP POWER SUPPLY. TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BATTERY GROUND CABLE AND BACKUP POWER SUPPLY MUST BE DISCONNECTED PRIOR TO SERVICING OR REPLACING ANY SYSTEM COMPONENTS.

NOTE: To repair stripped outboard center sensor retaining screws, replace sensor bracket and use new screws.

1. Disconnect battery ground cable and backup power supply.
2. Remove inner fender splash shield.
3. Remove locator on connector from sheet metal.
4. Disconnect LH front sensor electrical connector.





5. Remove two retaining screws attaching LH front sensor to LH fender apron and remove sensor from vehicle.

Installation

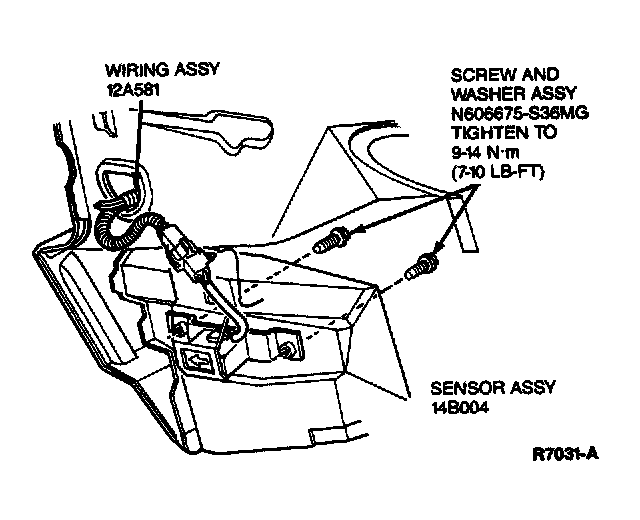

1. Position LH sensor to LH tender apron with arrow toward front and secure with two retaining screws. Tighten screws to 9-14 Nm (7- 10 lb-ft).
2. Connect LH front sensor electrical wiring connector to wiring assembly connector.
3. Install locator on connector into hole in sheet metal.
4. Install inner fender splash shield.
5. Connect backup power supply and battery ground cable.
6. Verify air bag indicator.
