Home >> Mercury >> 1991 >> Topaz FWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> Code 8 - Forward Crash Sensor Improperly Attached or Grounded

Code 8 - Forward Crash Sensor Improperly Attached or Grounded

Test Steps:

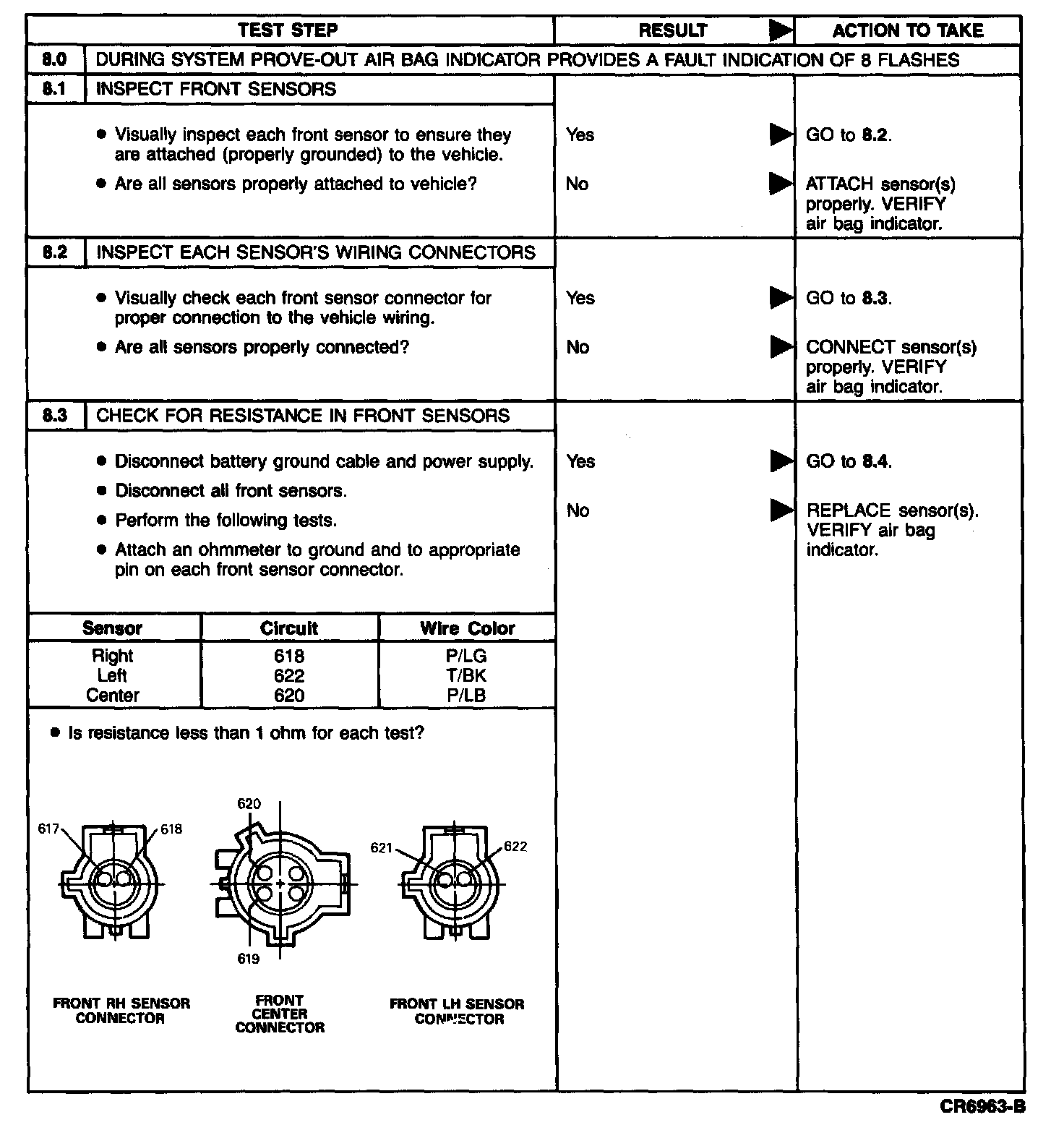

8.0 - 8.3:

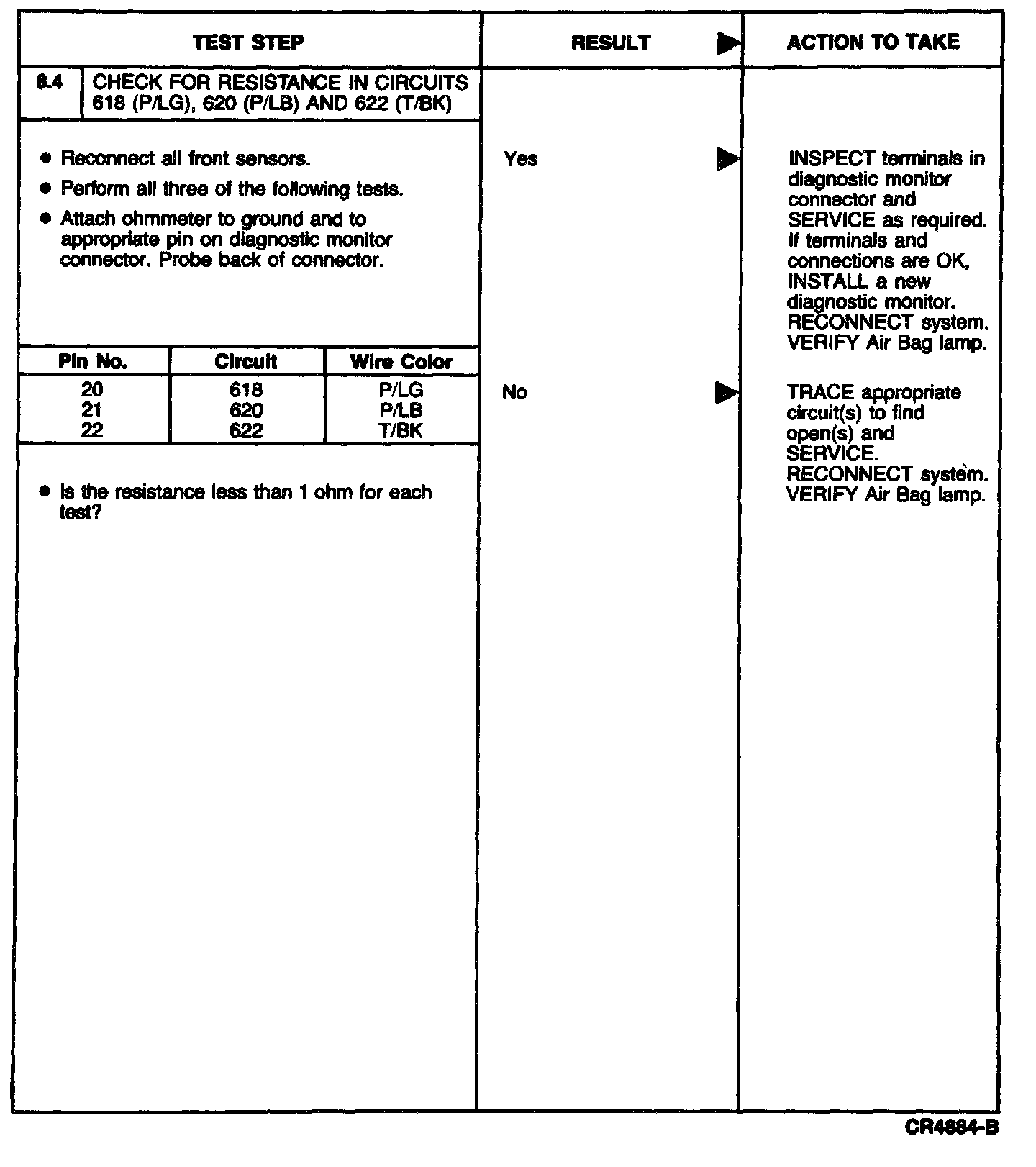

8.4:
