Topaz FWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Chart-Refrigerant Circuit
>>

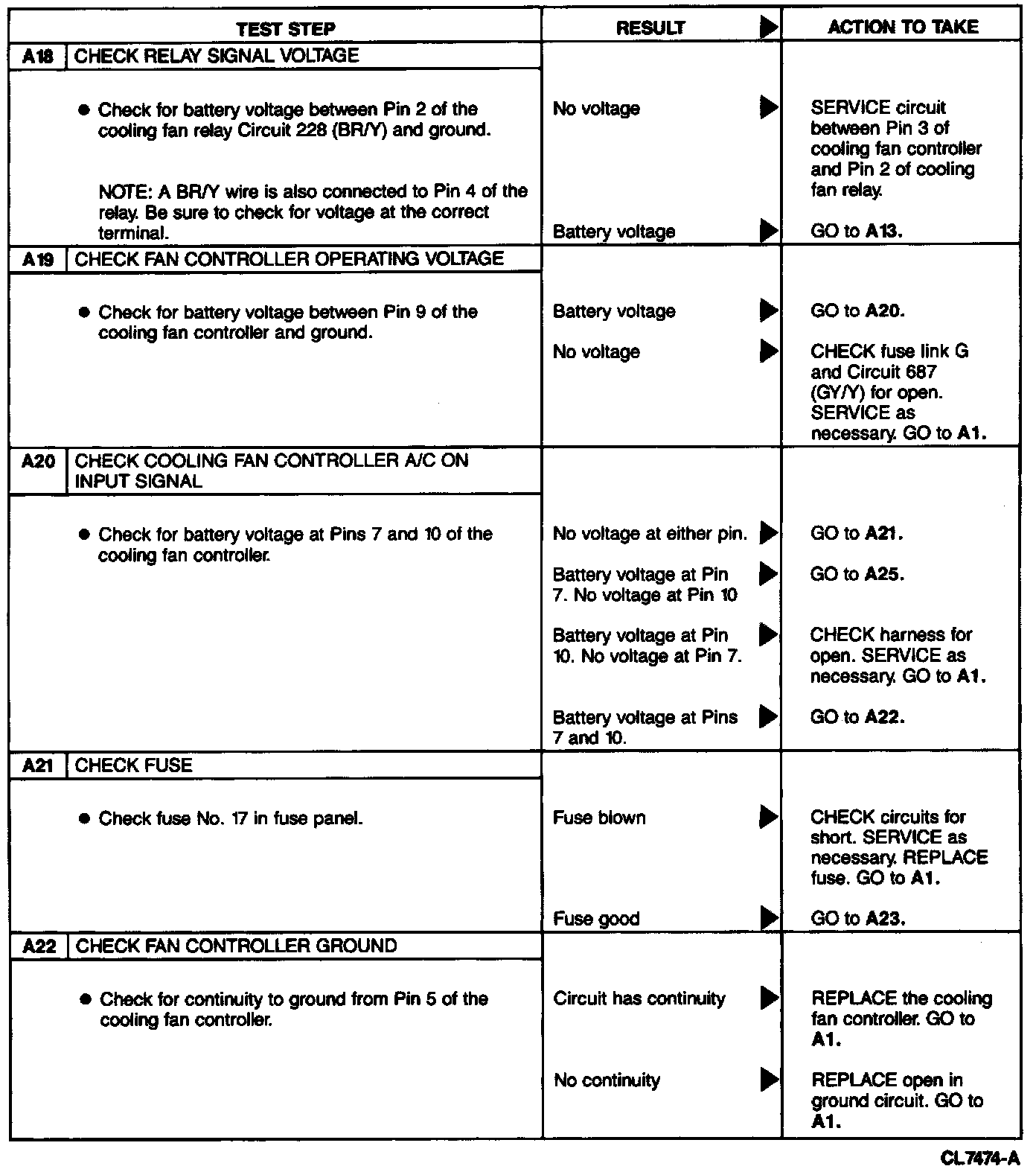

A18-A22
A18-A22
A18 - A22:
