Home >> Mercury >> 1991 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wipers Inoperative or Erratic

Wipers Inoperative or Erratic

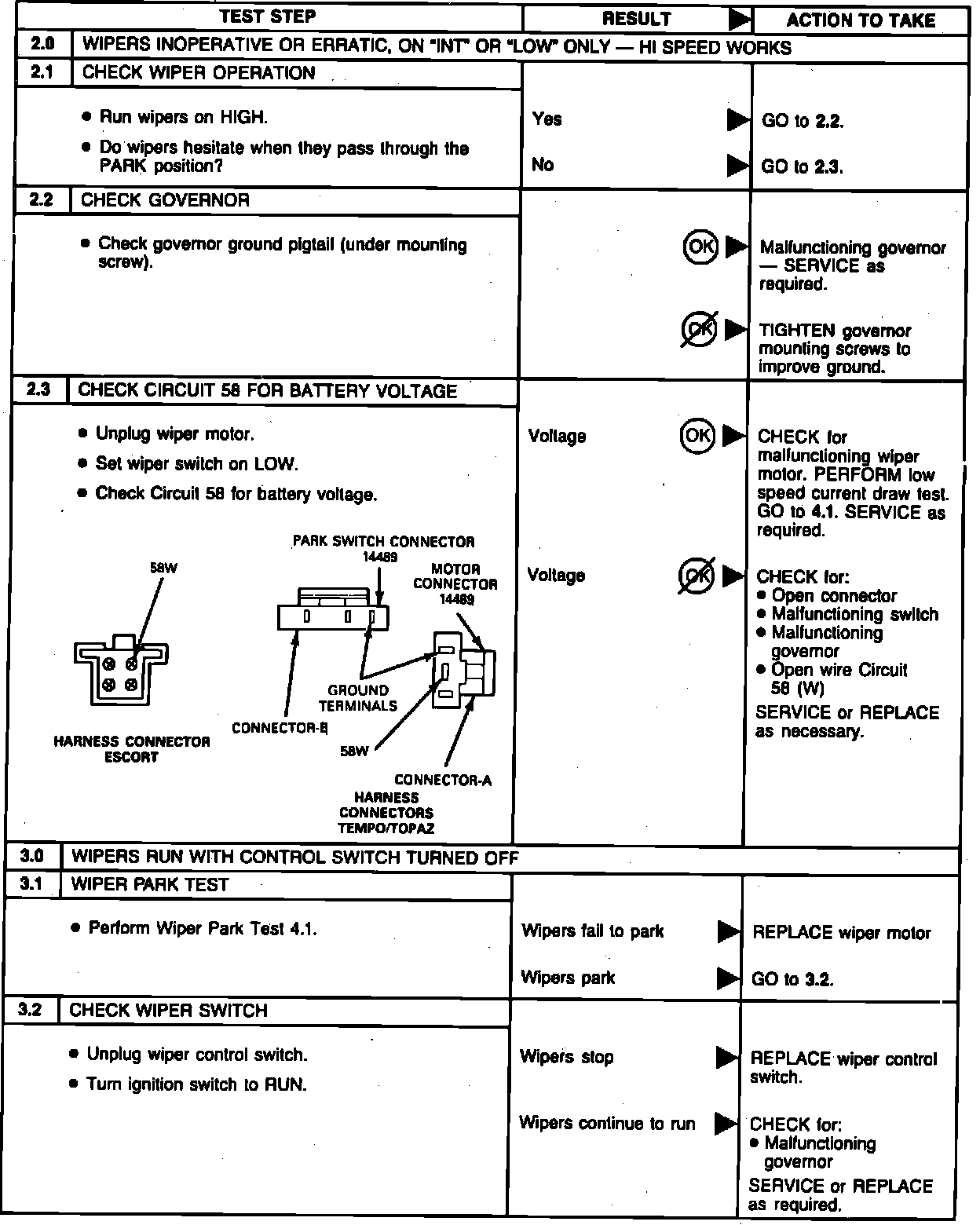

Fig. 5 Wiper System Diagnosis (Part 2 Of 3):
