Rotor Field Coil Test

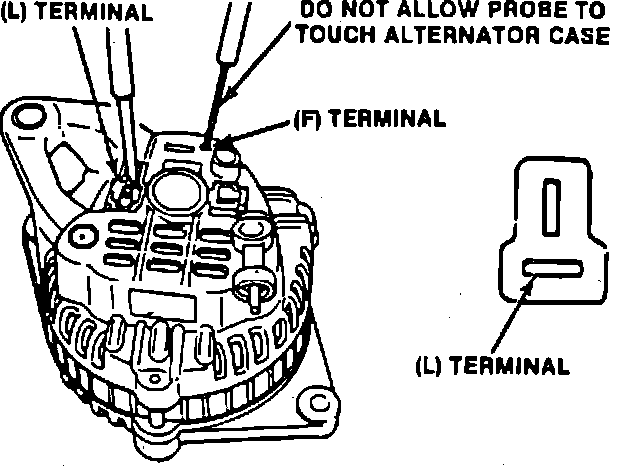

Fig. 4 Rotor Field Coil Test Connections:

1. Disconnect ground cable at battery and ``B'' terminal wire at alternator.
2. Connect suitable ohmmeter to ``L'' and ``F'' terminals of alternator as shown in Fig. 4. The ``F'' terminal is mounted internally and can be accessed through hole in rear of alternator. Ensure that ohmmeter lead does not contact alternator housing during test. Read and record reading.
3. If reading obtained in previous step is 3-6 ohms, a regulator problem is indicated.
4. If ohms are not as indicated, a problem exists in the rotor, slip rings or brushes.
