Home >> Mercury >> 1991 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> Electrical Diagrams >> Two Door Models

Two Door Models

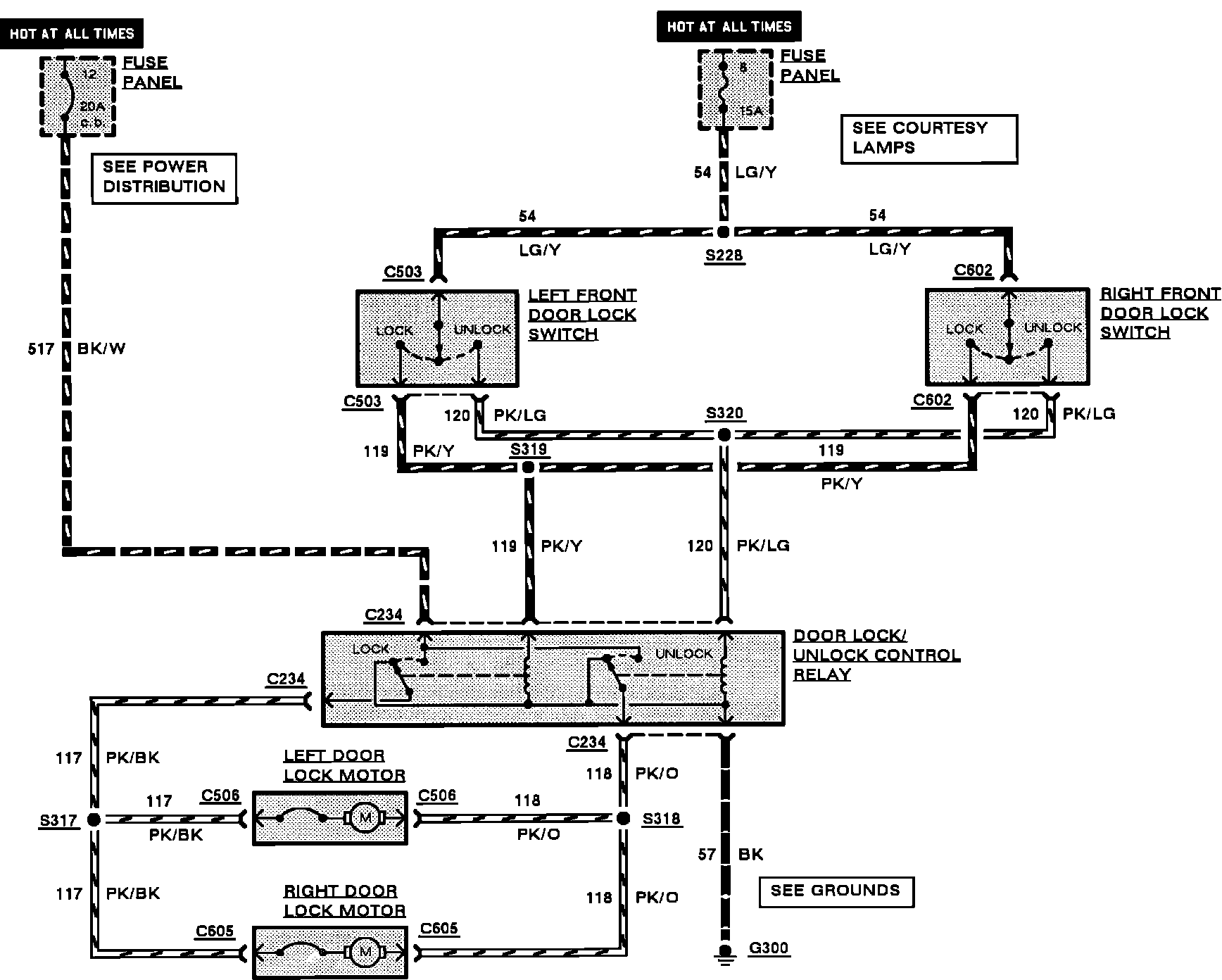

Power Door Lock (2 Door):
