Home >> Mercury >> 1991 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test E: Grounds Check

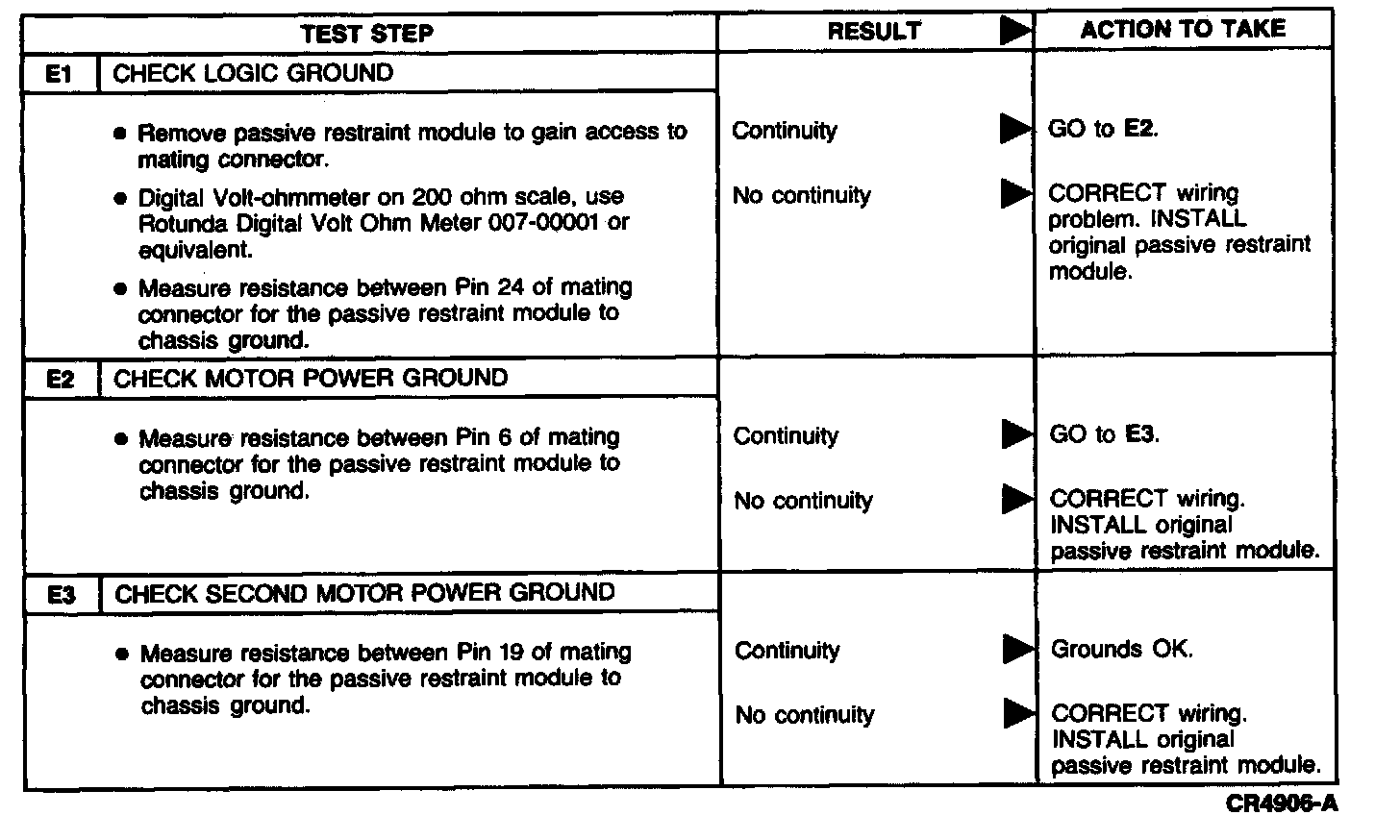

Pinpoint Test E: Grounds Check

E1 - E3:
