Safety Belt Without Anchor Plate Thread Damage

The lap and shoulder safety belts are factory installed in their proper locations. If the belts are removed for any reason, they should be installed using proper service procedures. The 7/16 x 20 safety seat belt Torx(R) head anchor bolts should be hand started and then tightened to 30-43 Nm (22-32 lb-ft).

1. Remove damaged bolt from anchor reinforcement and discard.
2. Install a new bolt. Refer to Parts Replacement Chart for part number. Tighten to 30-43 Nm (22-32 lb-ft).

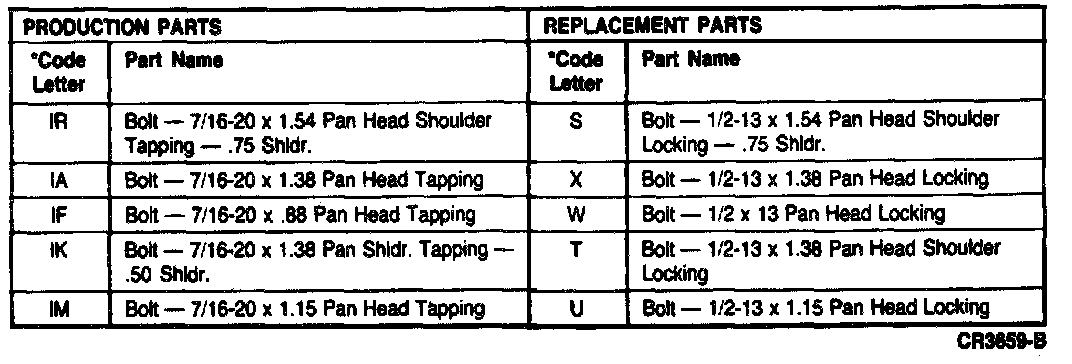

Parts Replacement Chart:

3. Install attachment parts in proper sequence. Tighten replacement bolt to specifications. Original parts are to be replaced with service parts indicated in Parts Replacement Chart. Unless specified in chart, use original parts.
