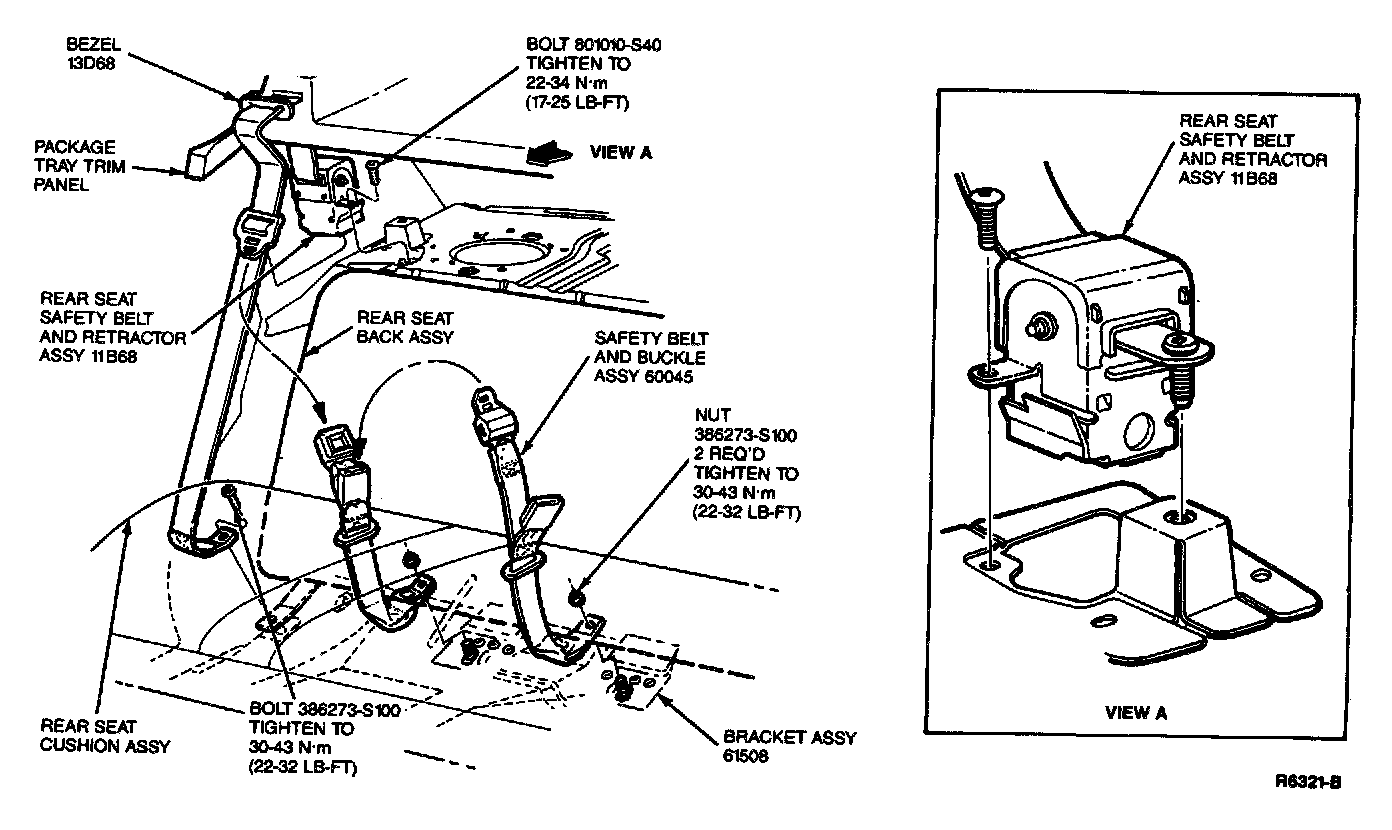

Rear Retractor and Harness Assembly

Removal and Installation
1. Loosen rear seat cushion to gain access to safety belt retaining bolts.
2. Remove buckle end anchor nuts and remove buckle end belts.
3. Remove rear seat back.
4. Remove safety belt anchor-to-sill bolt.
5. Snap out bezel in package tray trim panel.
6. Remove rear stoplamp assembly.
7. Remove package tray trim panel.
8. Remove retractor anchor bolts and retractor screw.
9. Remove anchor end of webbing through the opening in the package tray trim panel.
10. Remove outboard safety belt assembly from the vehicle.
11. Repeat procedure on opposite side.
12. To install, reverse Steps 1 through 11.

NOTE: Be sure to tighten all retaining bolts to specification.
