2-Door

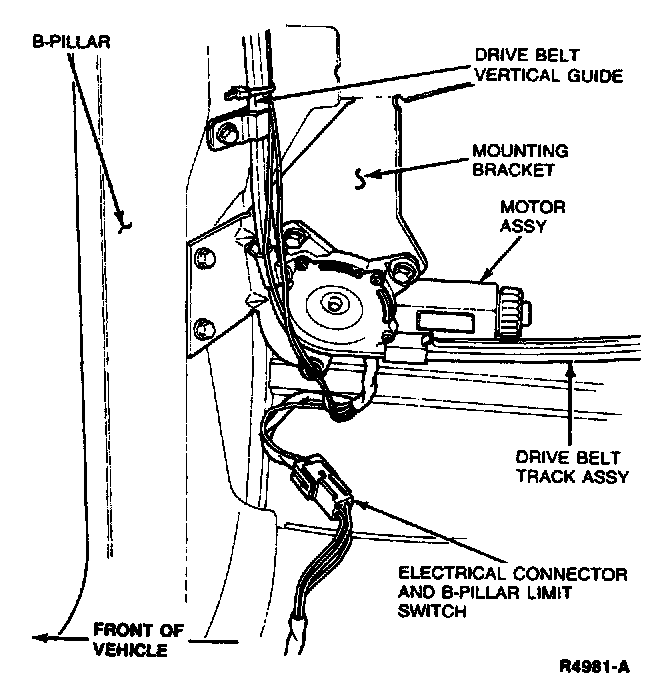

Tempo/Topaz 2 Door Shown:

Removal and Installation





1. Remove quarter trim panel.
2. Remove drive belt track retaining screws from motor.
3. Remove one screw from vertical drive belt guide adjacent to motor. Slide drive belt track down and out of the way for motor removal.
4. Disconnect electrical connectors.
5. Remove hex nuts from motor mounting bracket studs.
6. To install, reverse Steps 1 through 5.
