Terminal Ground

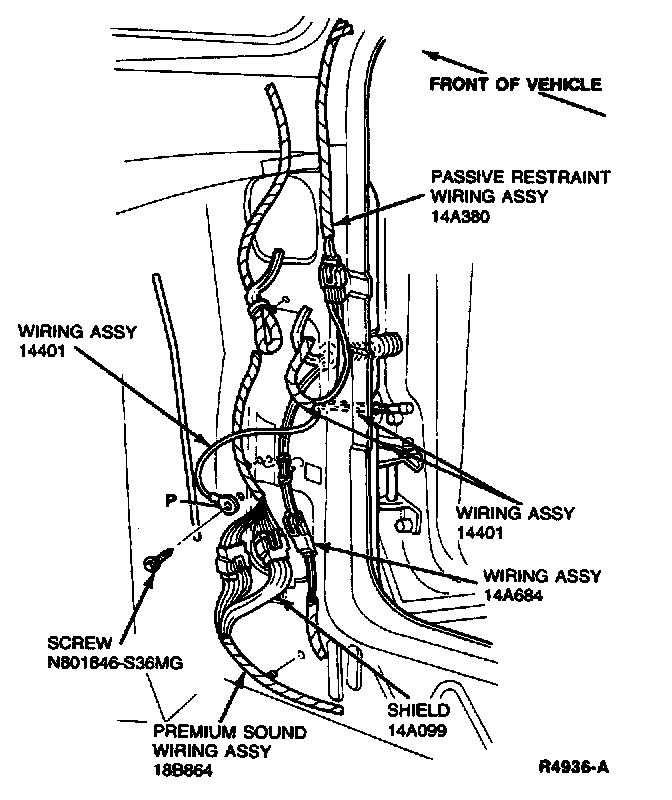

The terminal P is used for ground circuits 57 and 875 and is part of the 14401 wiring assembly. The ground is located in the RH cowl area.
