Door/Trunk Ajar Indicator/Lamp: Service and Repair

Removal
1. Remove instrument cluster trim panel applique.

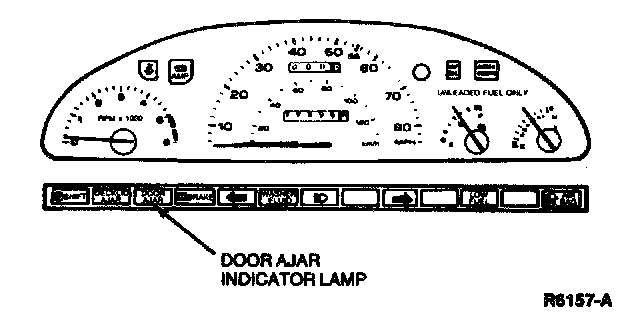

2. Disconnect electrical connector. Remove door ajar indicator assembly from cluster applique.

Installation
1. Connect electrical connector to door ajar indicator assembly.
2. Install indicator assembly in cluster applique.

NOTE: Door ajar indicator wording must be at bottom of indicator assembly.

3. Install cluster applique.
