Home >> Mercury >> 1991 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Compressor Clutch Diagnosis >> B10-B11

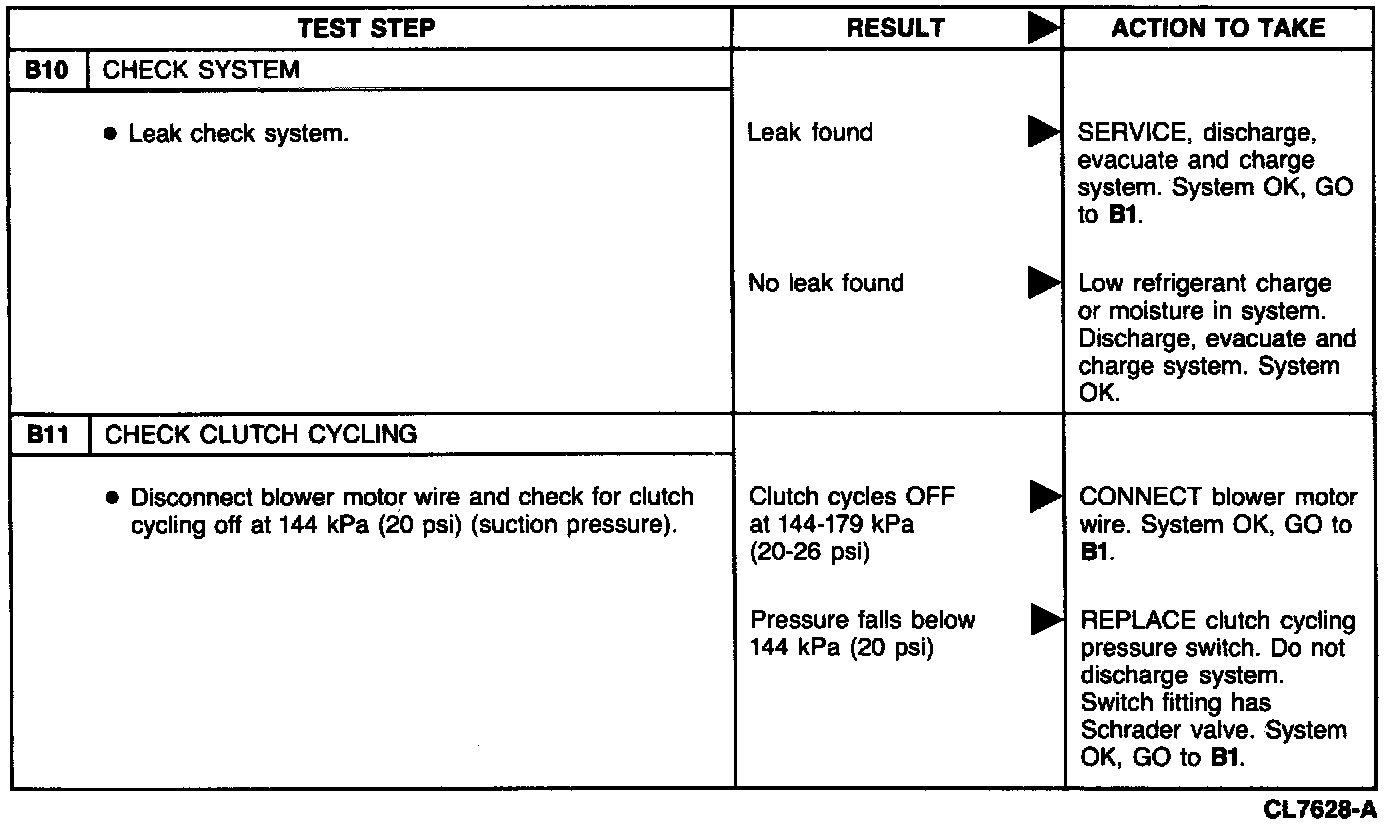

B10-B11

B10 - B11:
