Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

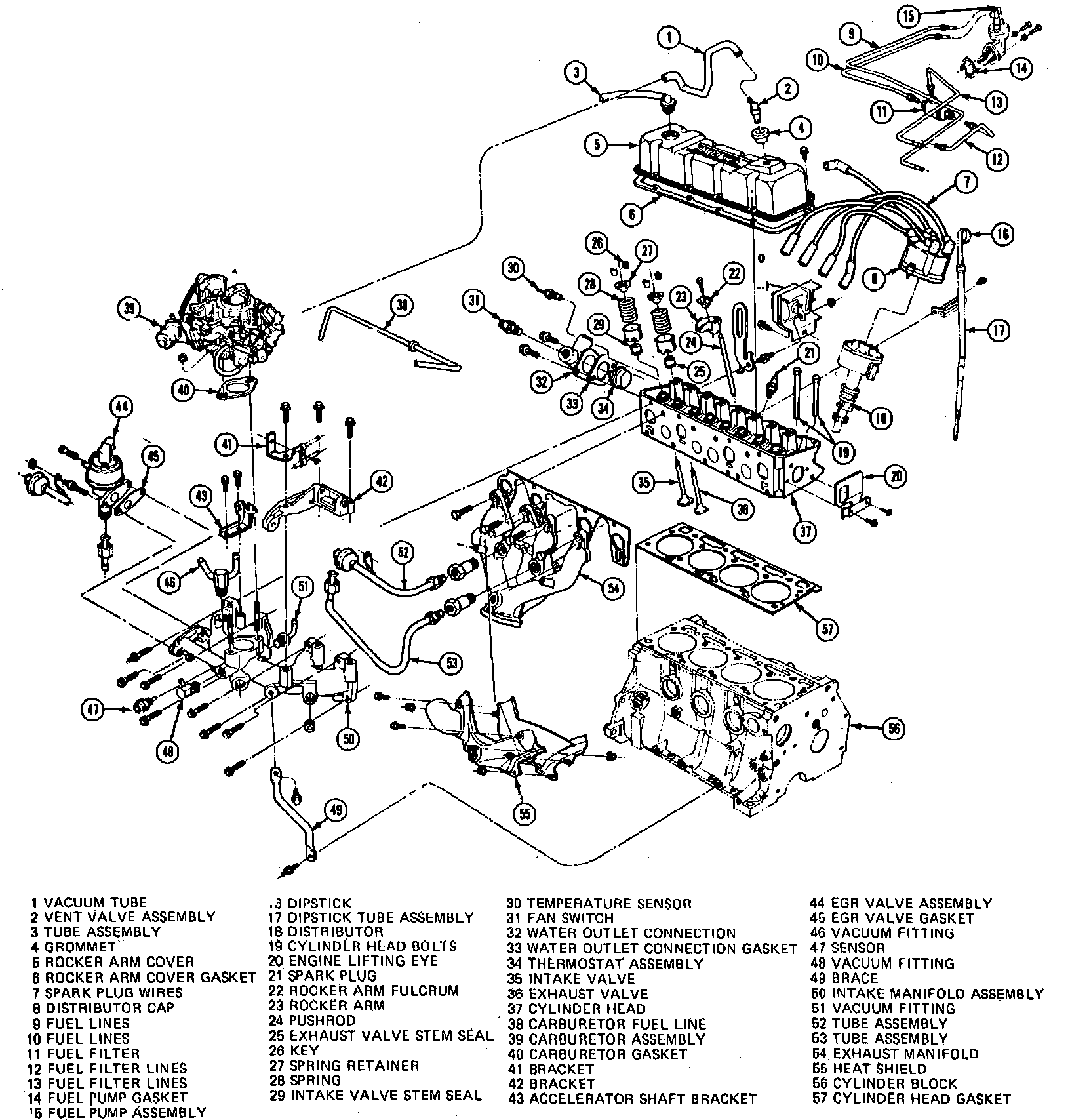

Cylinder head assembly & components:

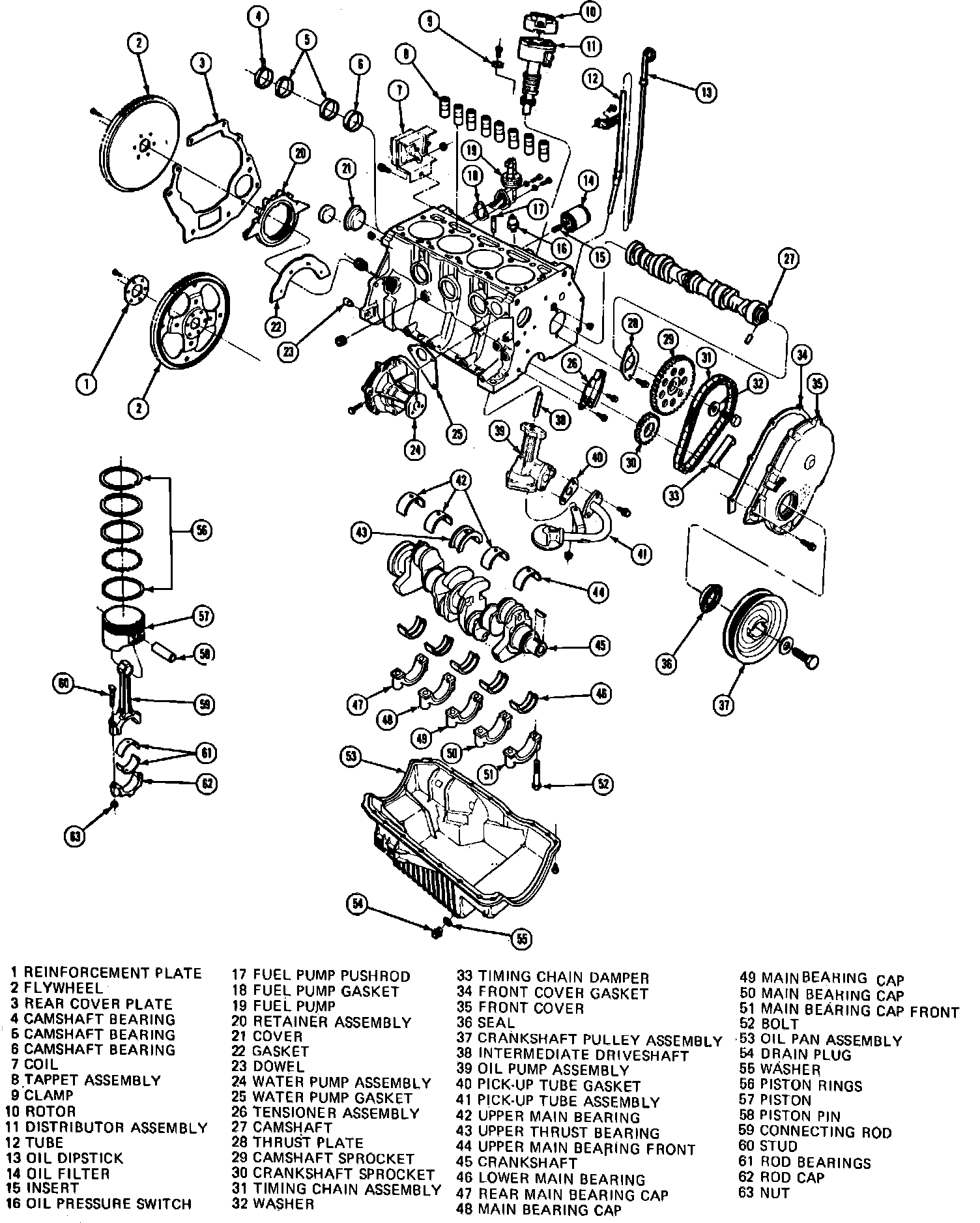

Cylinder block assembly & components:
