Disassembly and Assembly

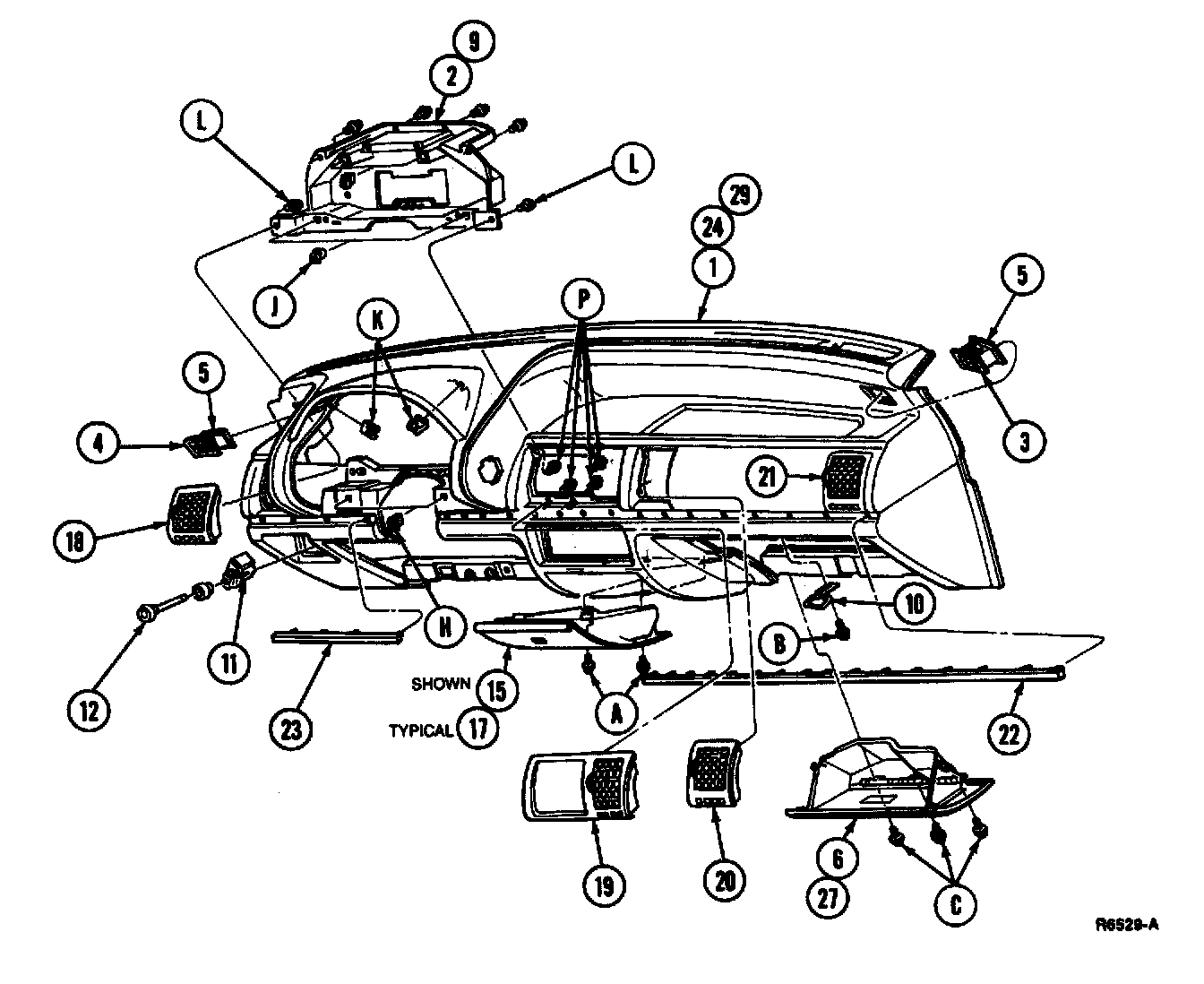

Front View:

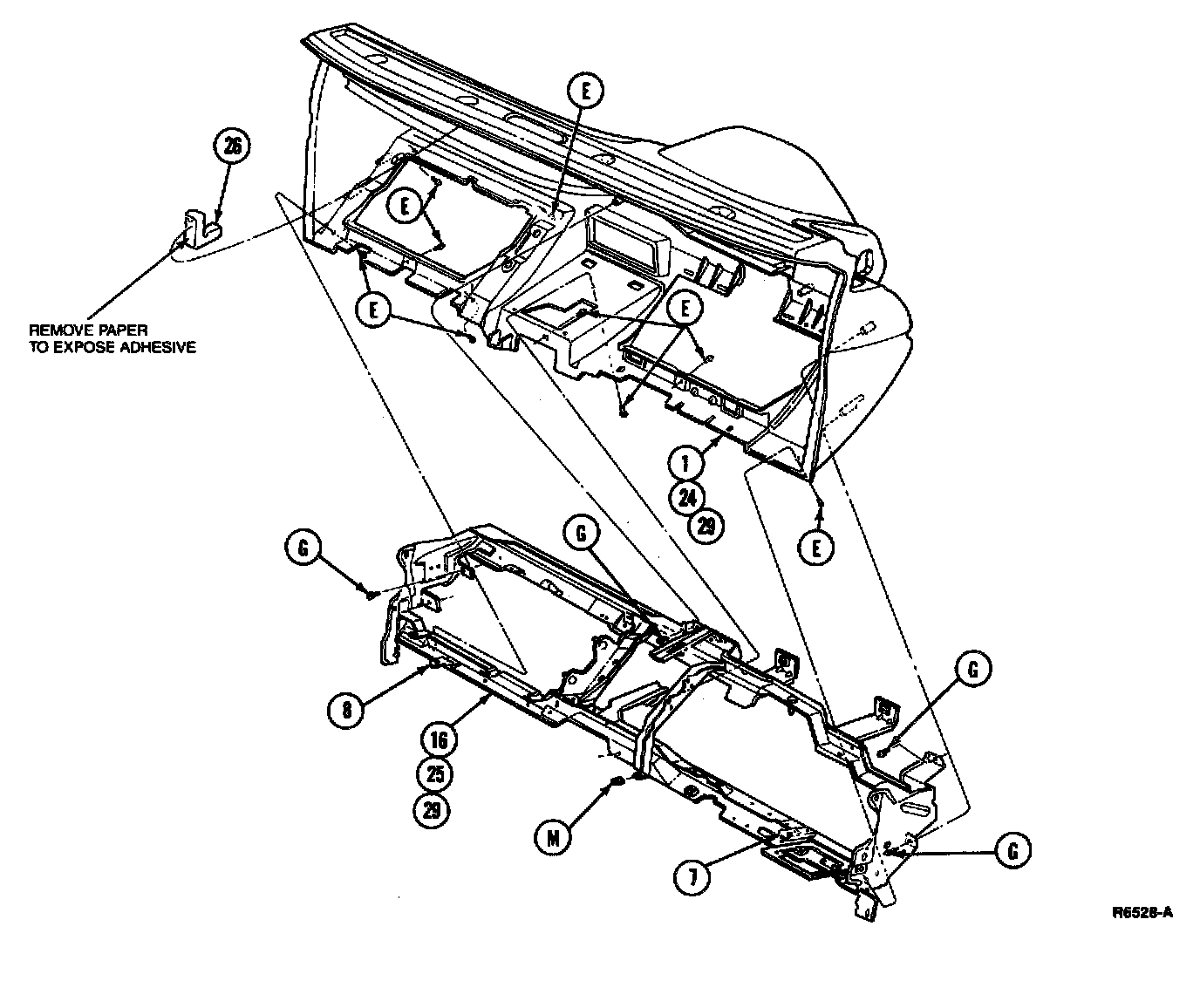

Rear View:

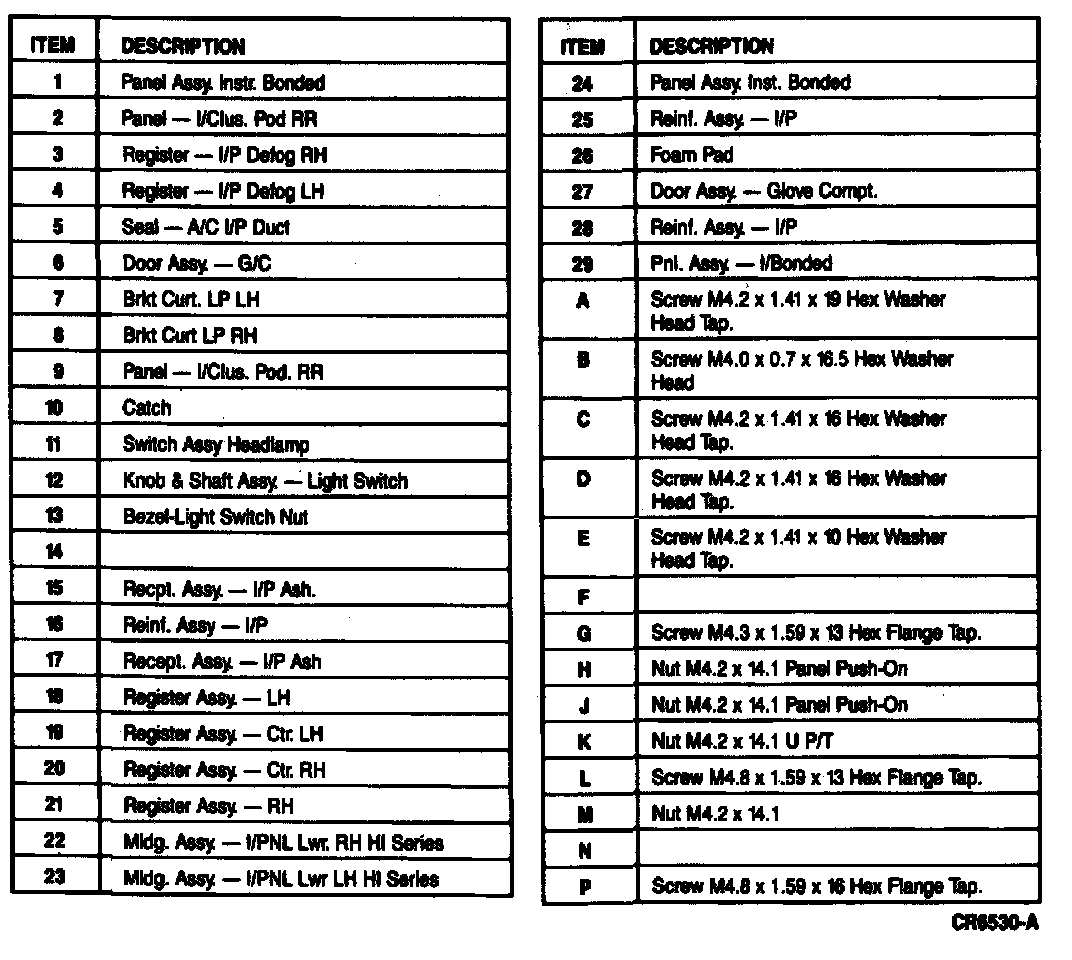

Component Index:





NOTE: Refer to the provided illustrations when disassembling or assembling the instrument panel.
