Floor Shift Lever And Housing

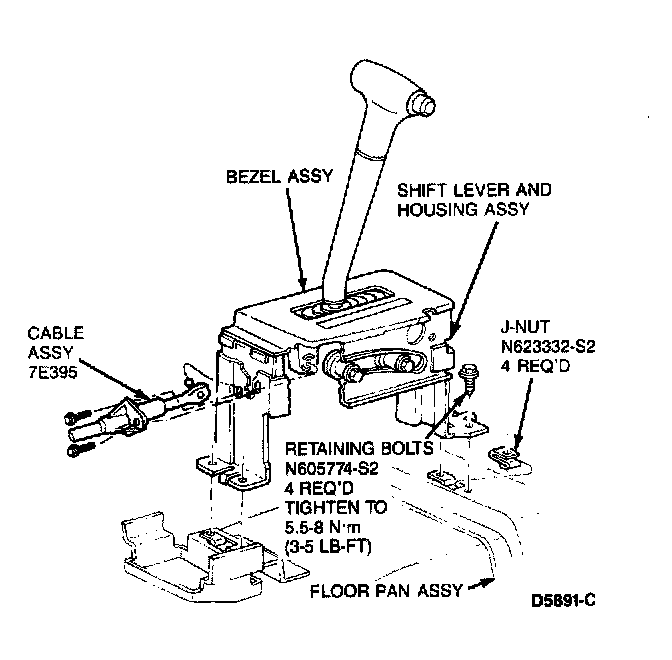

Shift Lever and Housing Assembly






Removal

1. Remove console assembly.
2. Remove shift knob and bezel assembly as outlined.
3. Remove transmission shift cable retaining screws from lever and housing assembly.
4. Pull the cable from the plastic snap retainer on assembly.






5. Remove key interlock cable retaining screw from shifter housing and slide cable out of shifter interlock cam.
6. Remove four bolts retaining lever and housing assembly to floorpan. Remove assembly.


Installation

1. Position control cable assembly into lever and housing assembly and install retaining screws.
2. Snap cable end into plastic snap retainer on the lever housing assembly.
3. Install lever and housing assembly onto floorpan and secure with four bolts. Tighten to 5.5 - 8 Nm (3 - 5 lb-ft).
4. Connect interlock cable to shifter interlock cam. Install cable retaining screw.
5. Position bezel assembly on lever and housing assembly. Secure with four screws.
6. Install console on lever and housing assembly with two screws.
7. Install shift knob as outlined.
8. Adjust control linkage.
9. Check transaxle operation in each selector lever detent position.
