Front

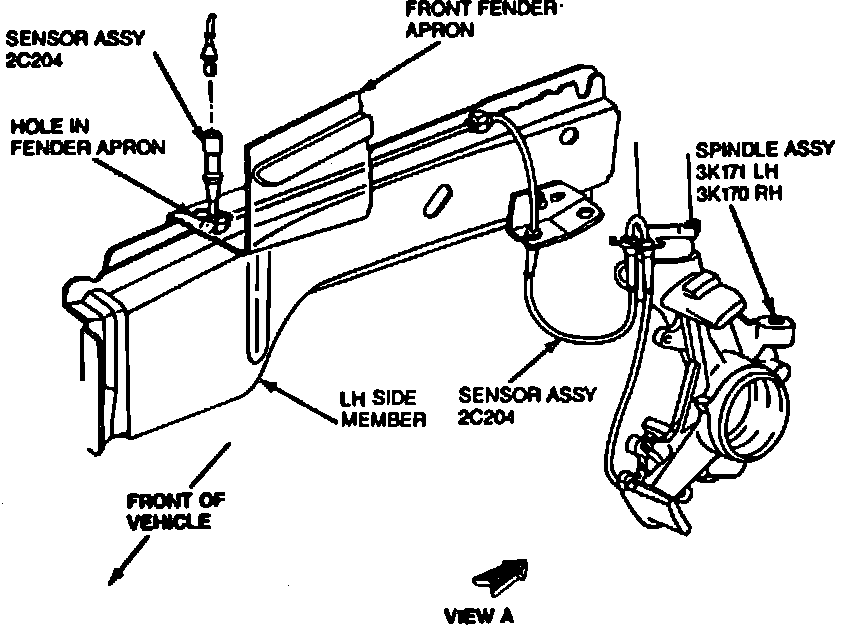

Fig. 151 Front Speed Sensor Removal. 1990-91 Continental:

Fig. 152 Front Speed Sensor Removal. Sable & Taurus:

1. Disconnect wheel sensor electrical connector, located in engine compartment.
2. When removing right side sensor, remove plastic push studs and loosen front of splash shield, Figs. 151 and 152.
3. When removing left side sensor, remove plastic push studs and loosen rear of splash shield.
4. Thread sensor wire through holes in fender apron. On right front sensor, remove retaining clips behind splash shield.
5. Raise and support vehicle, then remove tire and wheel assembly.
6. Disconnect sensor wire grommets at height sensor bracket, and from retainer clip on shock strut.
7. Loosen screw securing sensor, then remove sensor assembly from front knuckle.
8. Reverse procedure to install. Torque sensor attaching screw to 40 inch lbs.
